Description:

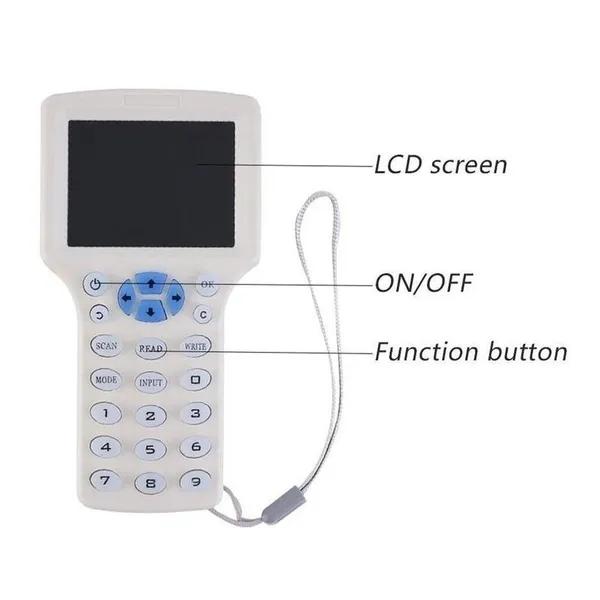

1. HD3.2-inch full-color screen with clear display effect.
2. ID/IC full hand, voice broadcast. (English pronunciation skills)
3 The RFID Copier Writer Reader Support 9 Frequency: ID-125KHz, ID-250KHz, ID-375KHz, ID-500KHz, ID-750KHz, ID-875KHz, ID-1000KHZ, IC13.56MHz (ISO1443A/B), HID Prox.
4. Number key input Numbers can be entered directly.
5.4AAA battery, standard mobile phone, easy to carry, can also be powered by USB cable.
6. With its own decoding function, it can directly prepare various smart card access control doors.
7. It can crack the encryption card.
Widely used: Elevator cards, access control systems, parking cards, proximity cards, work attendance cards, etc. Typical applications
Power supply: 4 AAA batteries or USB power supply
Note: Use the original card to read, copy card write
support to read: EM4100/ EM4200, Mifare classic, UID card, ultra-light, Ntag203/1386/1326/1346
Card Reader Support: TK4100/EM4100/EM4200/TK4100-D/TK4168/S50/S70/F08.
Card Write Support: T5577/EM4305/5200/8265/5300/8800/UID/CUID/FUID/UFUID.
How to Copy an unencrypted card:
Press “on/off "button to start up, a disclaimer will pop up. Press“Ok” button to enter the card reading interface.
Place the card to be copied in the sensor area. Press the"scan" button, card frequency and card number will be displayed. Card reading successful. Replace blank card in the sensor area press the"write" button, complete duplication unencrypted cards.
How to break/cpoy encryption card?
1.Place the card to be copied in the sensor area. When the screen displayed “Card encryption, please connect computer decoder (Please do not install the battery when connecting to the computer) ”. Link to the computer via an USB cable for decoding.
2.Press the on/off button. The copy machine displays the disclaimer page. Press "OK" to accept the disclaimer. (Don't push the "Confirm" button on the copier.)
The computer will display a removable disk. Click open disk. It comes with a manual and software.
Put the encryption card in the sensor area. Click "start decoding "to crack the password. General decoding process is about 10min.
After decoding successful,replace blank card in the sensor area. Press the “write” button, encrypted cards duplication will be completed.

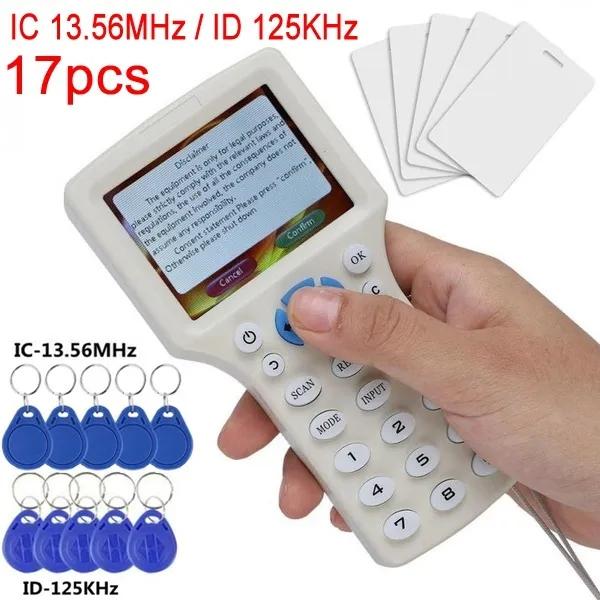

Package list:
1 x handheld RFID NFC copier reader
1 x USB cable
5 x 125 kHz ID card
5 x UID 13.56 MHZ secret key
5 x key chain ID 125khz
