Label:Yes
Material: Plastic

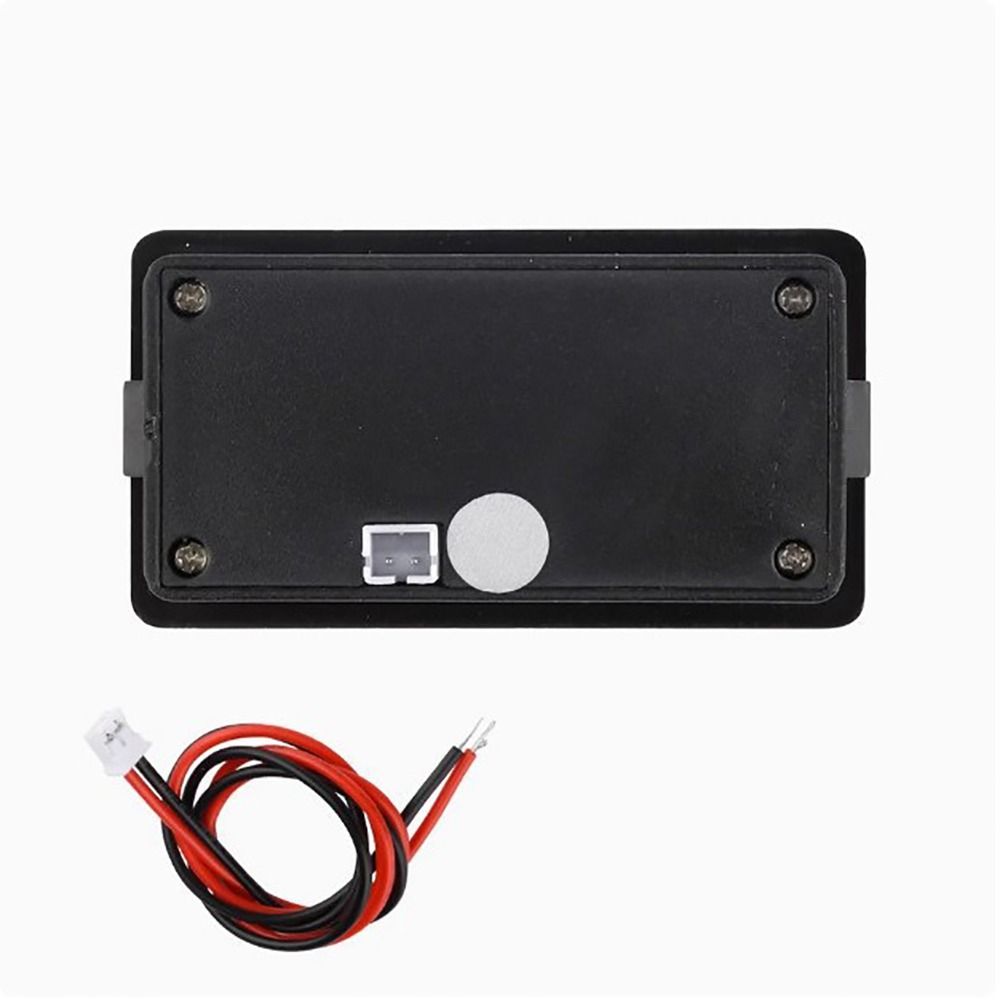

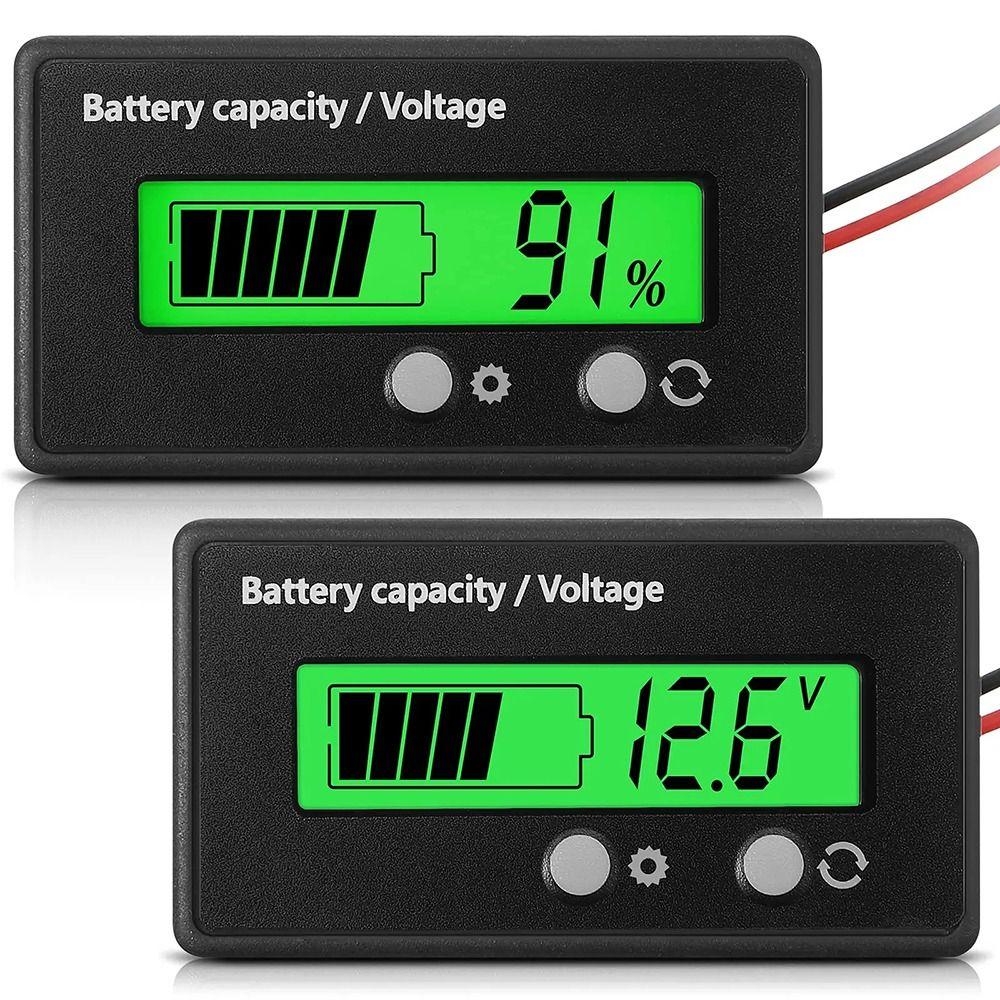

Name: Battery Capacity Indicator
Size: as shown
Quantity: 1Pcs
Brand new and high quality
This model is compatible with the following batteries:
Lead acid: 6V 12V 24V 36V 48V 60V 72V
Lithium Battery: 3 strings lithium - 24 strings lithium
Battery setting parameter code:
Lead-acid battery setting P
Lithium ternary battery setting L
Lithium iron phosphate battery setting F
Setting steps:
1. Disconnect the power supply first, press and hold the setting key without letting go; turn on the power supply, the screen lights up and then let go, displaying the current setting parameters;
2. Short press the setting key to switch to select the battery specification P/L/F; (P=12V lead-acid, L=3.7V Li-ion ternary battery; F=3.2V Li-Iron Phosphate battery)
3. Short press the function key to set the number of battery strings; and press the function key and the setting key to select the upward or downward Number of battery strings;
4. Long press the function key to enter the advanced setting page, short press the setting key to select S1-S5, short press the function key to turn on or off the function;
Notice:
1. The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data. Thank for your understanding.
3. 1cm=0.39''.
Package Included:
1x Battery Capacity Indicator
