MLX90640 Infrared Temperature Sensors Lightweight 2.8 Inch Digital Thermal Imaging Camera USB Charging for Industrial Components
Feature:

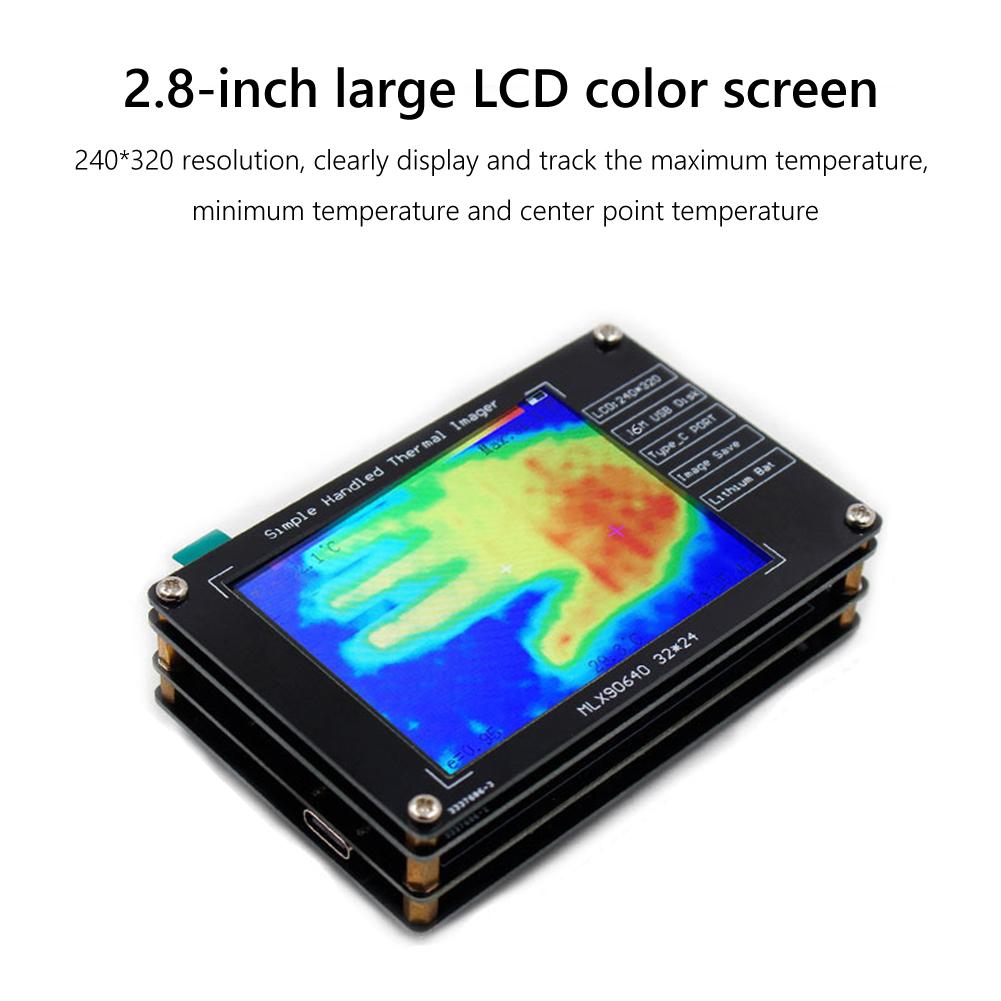

1. Excellent Chip:Infrared sensor, 32 * 24 pixel far-infrared array, with clear imaging. Real time measurement, the measurement range is - 40 ℃ to+300 ℃, and the dynamic refresh rate is 8Hz. 2.8 inch large LCD color screen, 240 * 320 resolution, clearly display and track the maximum temperature, minimum temperature and center point temperature.
2. Material:FR4 epoxy outer sheath material is used to better protect the internal components and have a long life. Integrated design, smooth operation without external equipment.

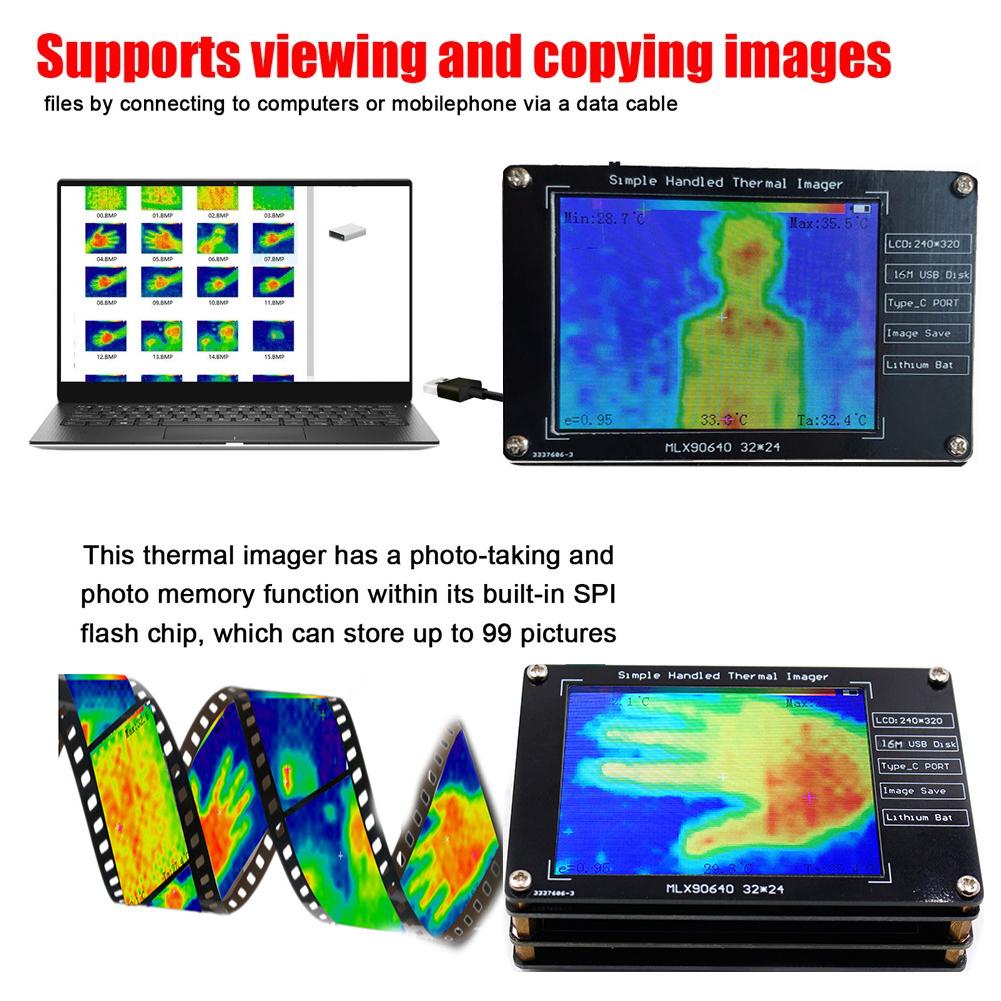

3. Storage:The thermal imager is equipped with SPI flash memory chip, which has the function of taking pictures and storing photos, and can store up to 99 photos. Through the data transmission interface, you can view and copy image files by connecting a data cable to a computer or mobile phone.
4. USB Powered:Built in lithium-ion battery, USB Type-C charging design, long battery life, support charging when in use.
5. Widely Used:It integrates surface temperature measurement and real-time thermal imaging functions, and is applicable to both human body temperature detection and industrial temperature detection. It is small in size, light in weight, convenient to carry, and does not take up too much space.
Specification:
Name: Thermal imager
Material: Epoxy board + printed circuit board
Battery: 3.7V 800mAh lithium ion battery (included)
Infrared sensor: MLX90640ESF-BAB
Hardware resolution: 32 * 24 pixel far-infrared array
Screen resolution: 320 * 240 pixels
Temperature measurement range: - 40 ℃ to 300 ℃
Measurement accuracy: ± 2 ℃
Operating temperature: 0 to 50 ℃
Working humidity: ≤ 70%
Refresh frequency: 8Hz
Field of vision: Horizontal 55 ° * 35 ° vertical
Emissivity: 0.95
Charging specification: USB Type-C5V/1A
Working time: ≥ 4 hours
Size: About 85x55x20mm/3.34x2.16x0.78inch

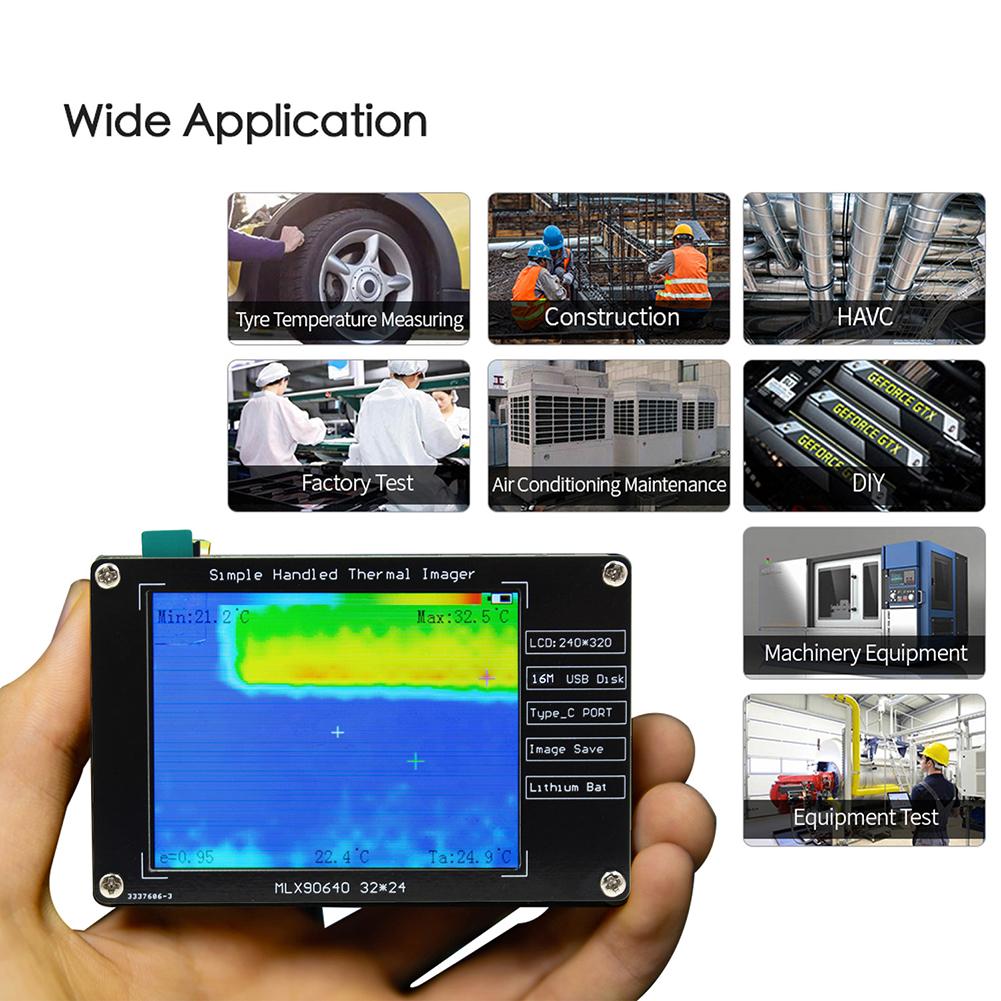

Widely used:
1. High precision non-contact temperature measurement and body temperature detection.
2. Intelligent measurement and control of building ambient temperature.

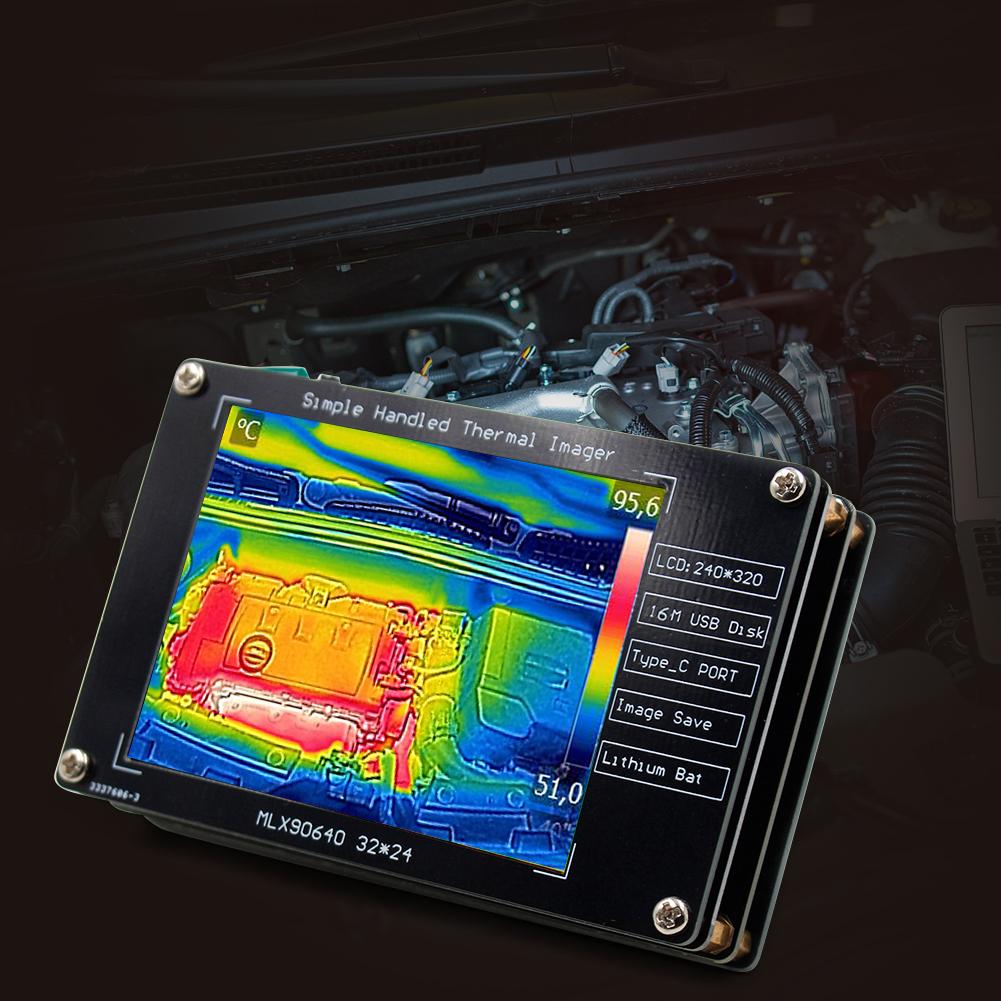

3. Vehicle maintenance inspection and temperature detection of vehicle parts.
4. Microwave oven and microwave oven temperature detection and control.
5. Temperature monitoring of industrial components.
6. Visual temperature sensor.
7. Leakage and maintenance of floor heating equipment.
8. Thermal inspection of circuit boards and components.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Thermal imager
1 x Data cable
1 x Wiping cloth
