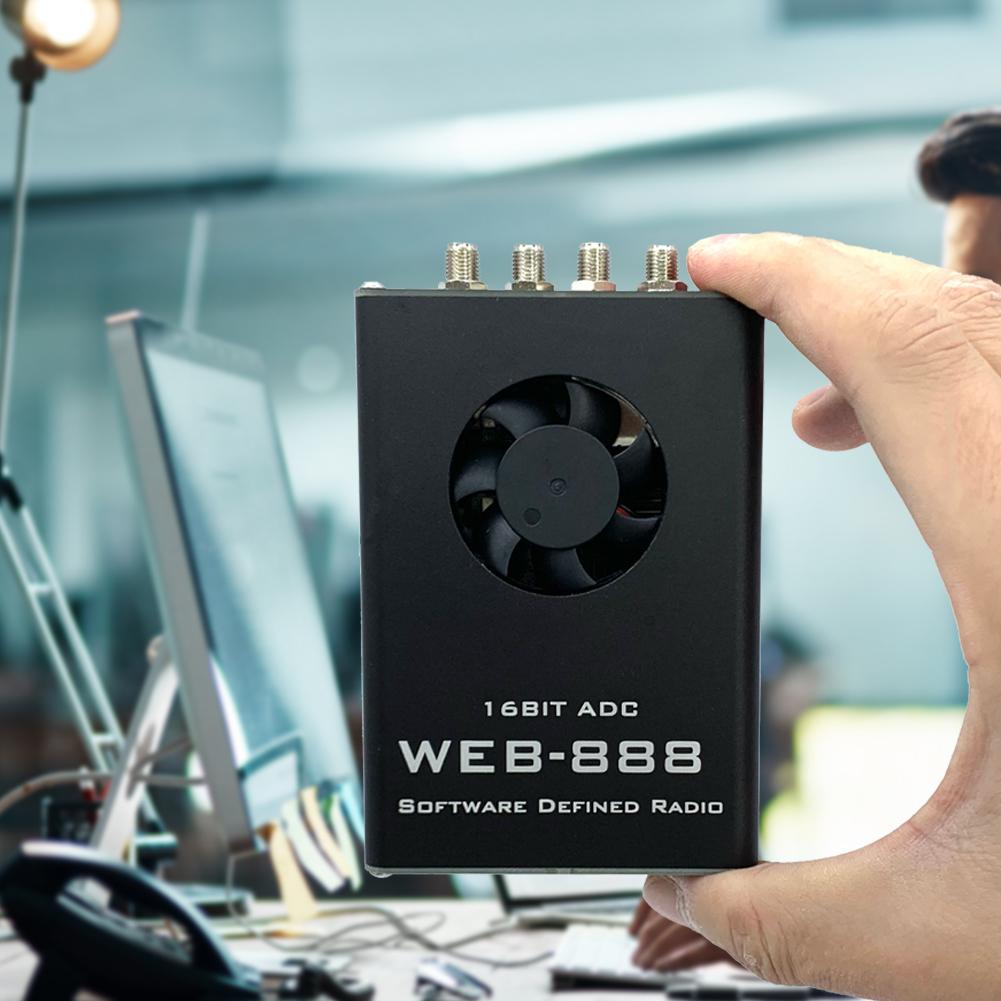

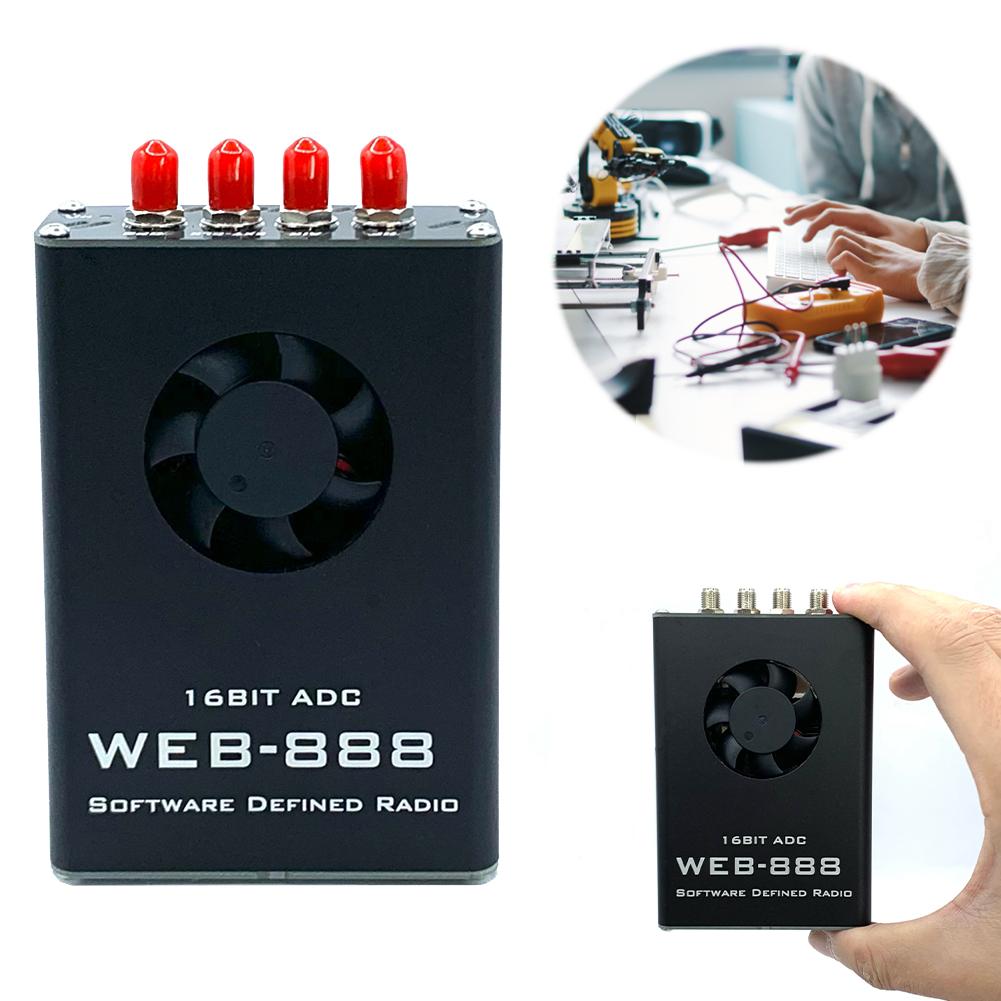

Web-888 16Bit ADC Web Software Defined Radio 62M Bandwidth 10 KHz To 60 MHz HF VHF SDR Radio Receiver GPS Module Web SDR Radio Radio for Amateur
Feature:

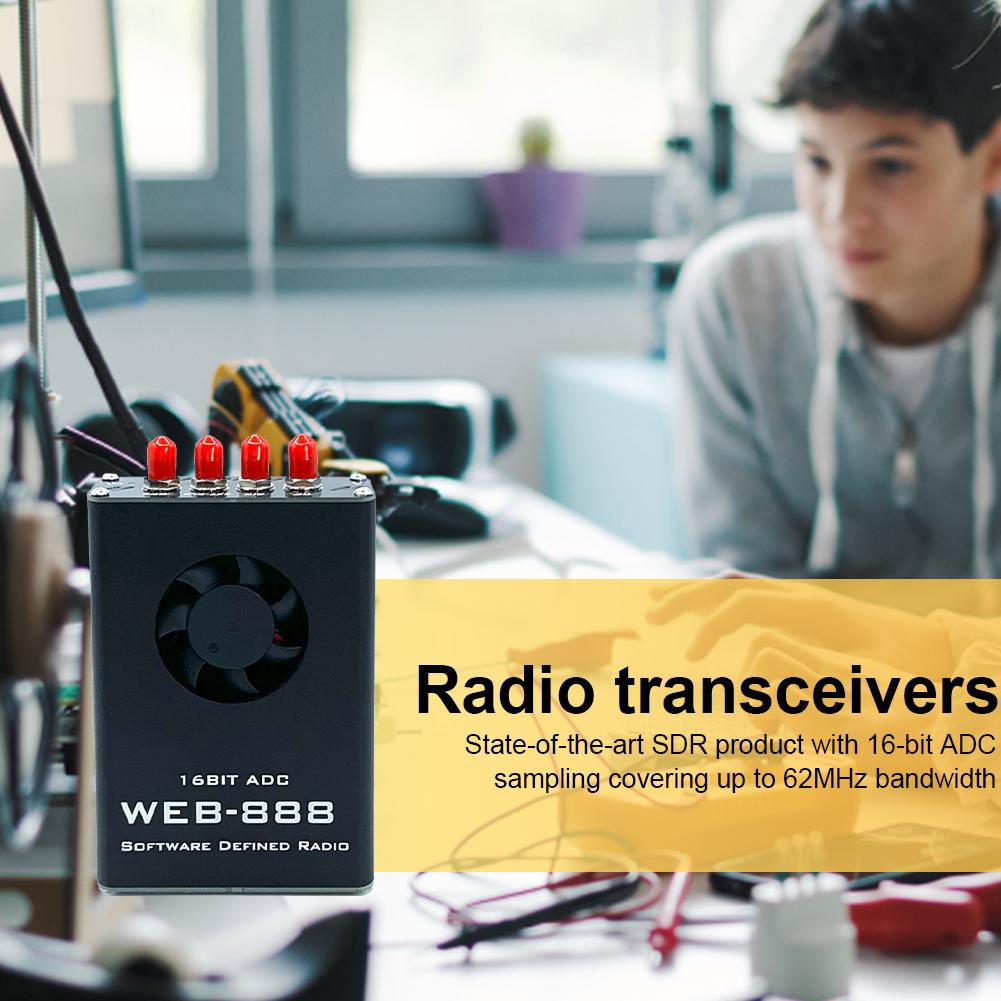

1. Advanced Web SDR: The Web-888 SDR features a web-based interface with a cutting-edge RF front-end and FPGA implementation, utilizing 16-bit ADC sampling to cover up to 62MHz bandwidth, making it a top choice for SDR enthusiasts.
2. Powerful Web Software Defined Radio:Equipped with a Zynq7010 FPGA with dual A9 ARM cores, the Web-888 web software defined radio uses a fast on-chip bus to deliver 13 waterfall-enabled channels, optimized for superior performance.
3. High-Performance SDR Radio Receiver:The Web-888 offers exceptional value with its meticulously designed front-end, 16-bit ADC, and DSP software, positioning it as one of the best high-performance SDR radio receivers on the market.
4. User-Friendly SDR Receiver:With its intuitive web-based interface, the Web-888 SDR receiver requires no prior knowledge to start using in your web browser, making it perfect for both beginners and those seeking a user-friendly SDR solution.
5. Versatile Web SDR Radio Platform:The Web-888 web SDR radio supports 13 channels covering all HF bands and the 6M band, with FT4/FT8 and WSPR skimming, plus future CW skimming support, ideal for HAM band exploration and experimentation.
Specification:
Origin: Mainland China
Hardware Specifications:
Active cooling fan (40mm)
16-bit ADC DDC architecture SDR
61.44 MHz real-time bandwidth
Built-in full constellation GPS module
Dual antenna input
Gigabit Ethernet
Reference clock in/out
24.576MHz, 0.5 ppm TCXO
8 expandable IOs for antenna switching
Software Specifications:
Alpine Linux 3.20 with Linux 6.6 kernel
WebRX-based browser SDR experience
KiwiSDR application websocket protocol
WSPR, FT8 skimmer and other decoders
13 RX channels and 13 spectrum channels online simultaneously
Binary updates with alpha and stable channels
Read-only root partition to prevent SD card corruption
FPGA DMA controller for efficient data transfer without CPU involvement
In addition, Web888 provides the Red Pitaya Notes compatibility repository, which hosts multiple SDR-related projects that are single ADC applications.
Outstanding performance:
16-bit 130 MSPS ADC LTC2208
Up to 100 dB SFDR
Support Dither, PGA can be switched by software
Built-in high-performance GPS:
Supports single-system positioning of BDS/GPS/GLONASS/GALILEO satellite navigation systems, as well as multi-system combined positioning.
Supports 32 channels, 148dBm cold start sensitivity
Supports PPS function, calibrates ADC clock after positioning to achieve GPSDO performance Supports active antenna, 3.3V bias
HF/air band dual antenna input:
High frequency band frequency range: 061.44 MHz
Air band frequency range: 118145MHz
Switch between two sets of antenna inputs by software, built-in PE4312 attenuator, input attenuation adjustable from 0 to 31.5 dB
Reference clock input/output:
External clock input uses a clean 10 MHz reference sine wave or square wave with 0.13.0 V p2p
Reference clock output 1M100 MHz, sine wave, calibrated to 20 dBm by GPS

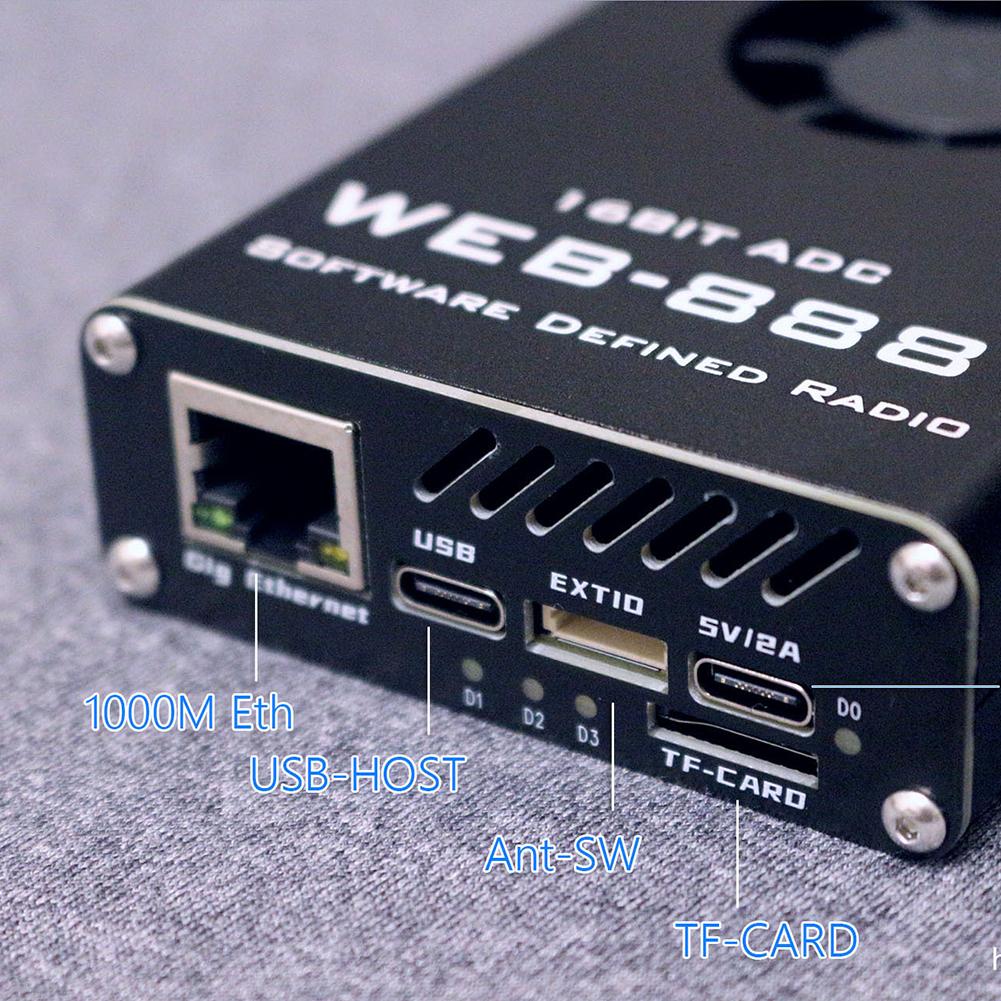

GPIO expansion interface:
5V power output
8 configurable GPIOs, default for antenna switching
2 USBC ports
1x USB 2.0 host
Ability to connect WiFi dongle for SDR WiFi connection
1x power input, 5V/2A

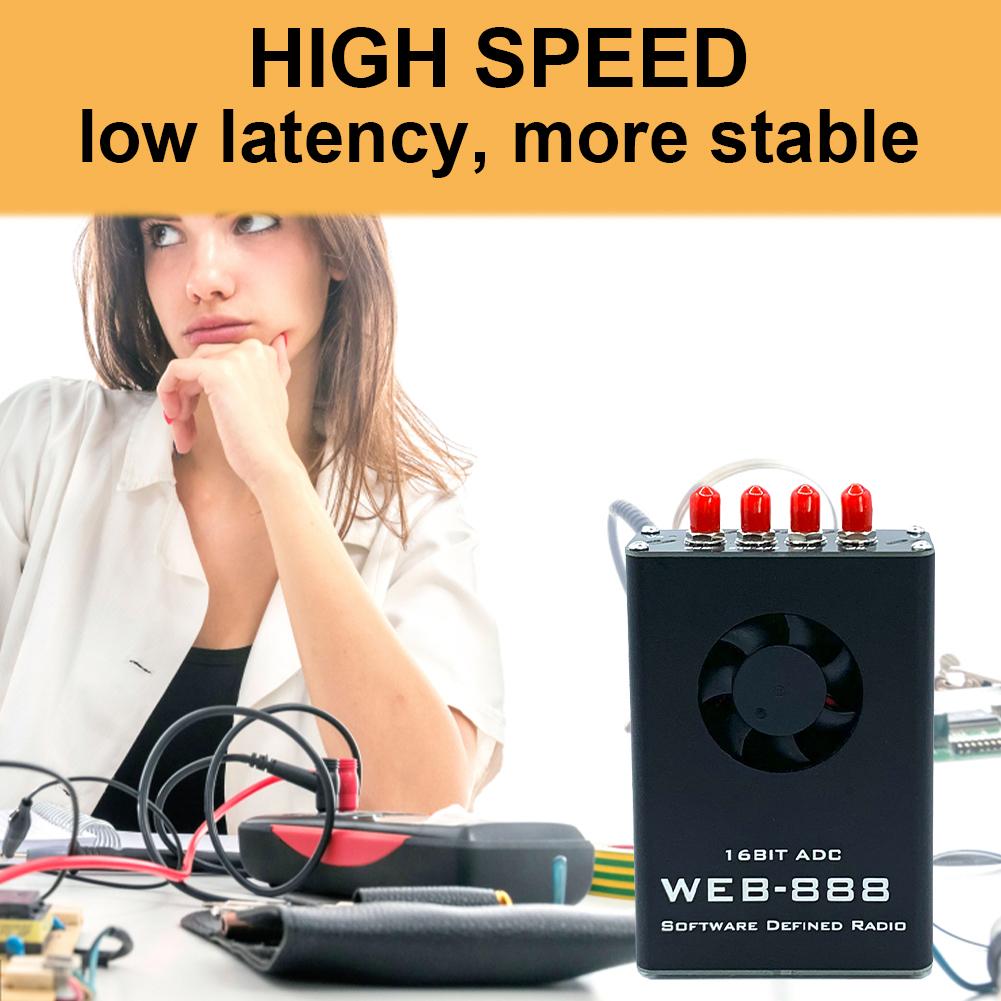

1000M High Speed Ethernet:
High speed, low latency, more stable
Product size: about 100.00x70.00x22.00mm
Product size: 3.94x2.76x0.87inch
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
Packages:
1 x Web-888 SDR
