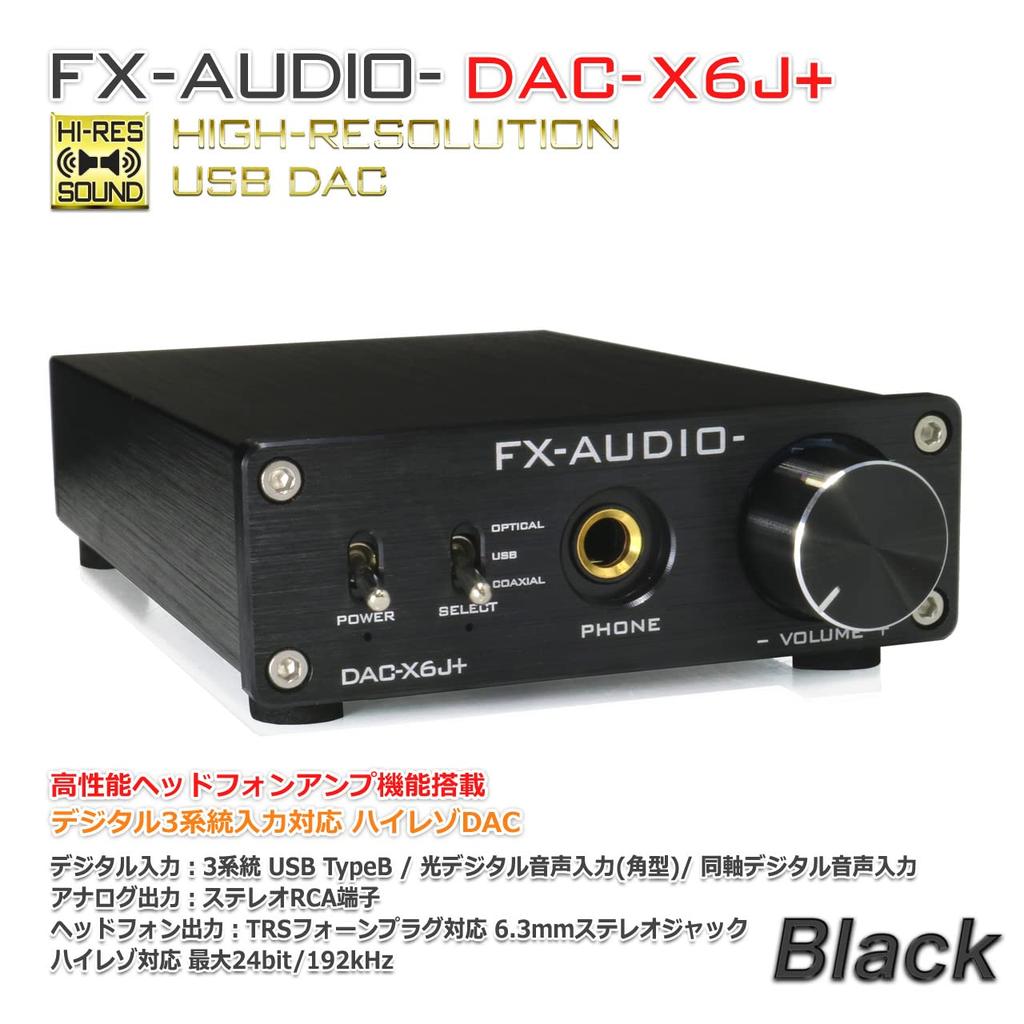

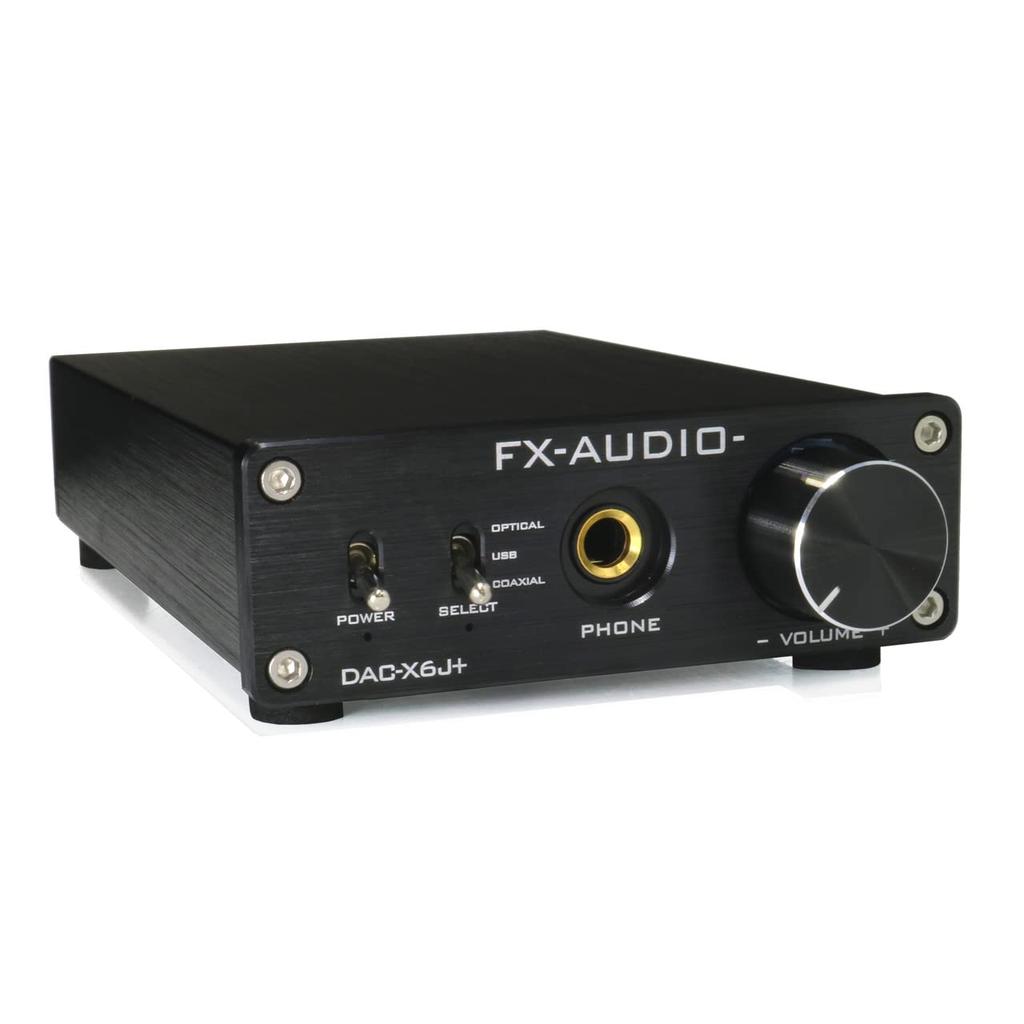

FX-AUDIO- DAC-X6J+ [Black] High-Performance Headphone Amplifier, High-Resolution DAC, Optical, Coaxial, Digital, USB, Up to 24-bit 192kHz

Based on the DAC-X6J, this premium model supports inputs up to 24-bit/192kHz via USB.

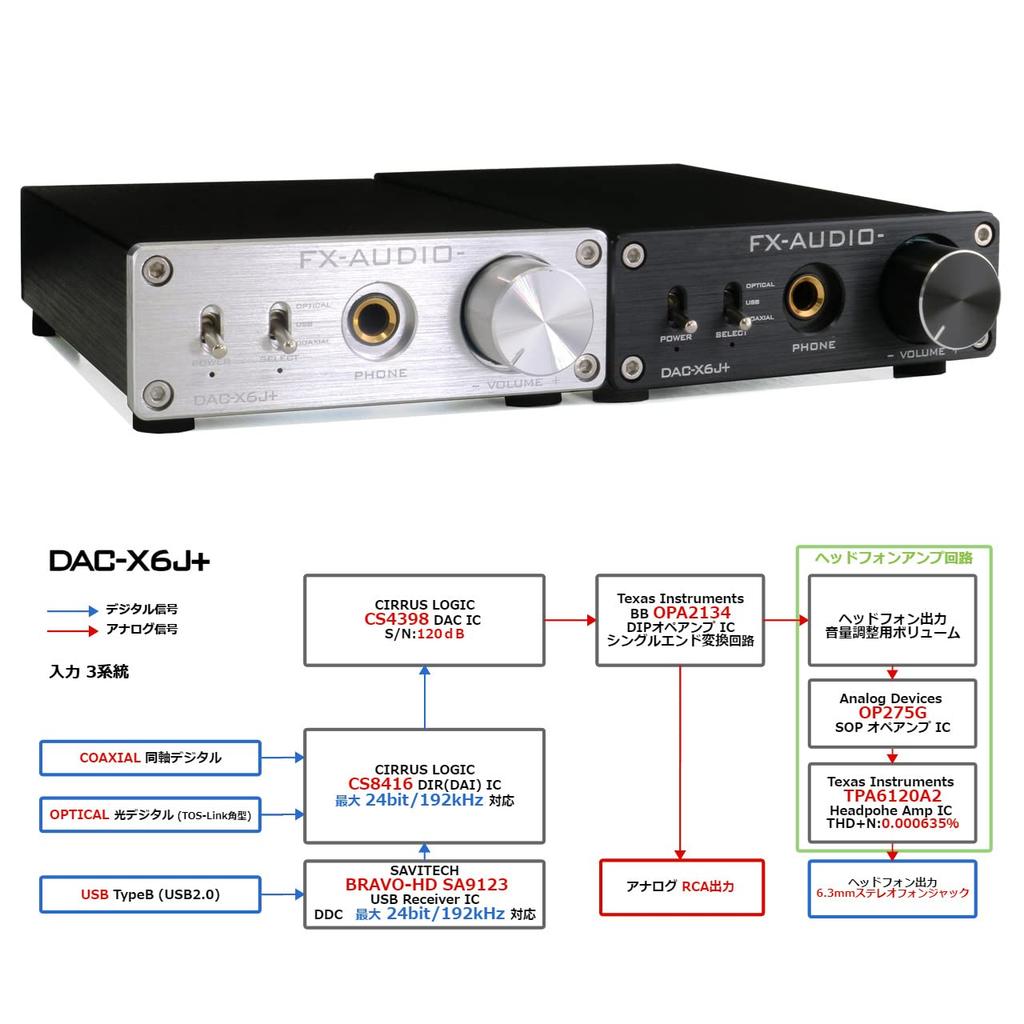

This premium model of the DAC-X6J employs the new-generation SAVITECH BRAVO-HD "SA9123L" USB receiver chip, supporting inputs up to 24-bit/192kHz via USB. This high-resolution D/A converter supports three digital inputs (USB, optical digital, and coaxial digital) and input switching, and also features a high-performance headphone amplifier.

[Notes] *The product warranty period is six months from the date of purchase. *This product requires a separate power supply. A separate AC adapter is required for use. *Replacement of the operational amplifier is not covered by the warranty. https://www.amazon.co.jp/dp/B07W6SFZF5 https://www.amazon.co.jp/dp/B07FVR8FR2

Recommended Power Supply: AC adapter required (sold separately) Recommended AC adapter: https://www.amazon.co.jp/dp/B07GY39R8N https://www.amazon.co.jp/dp/B01M4JK604

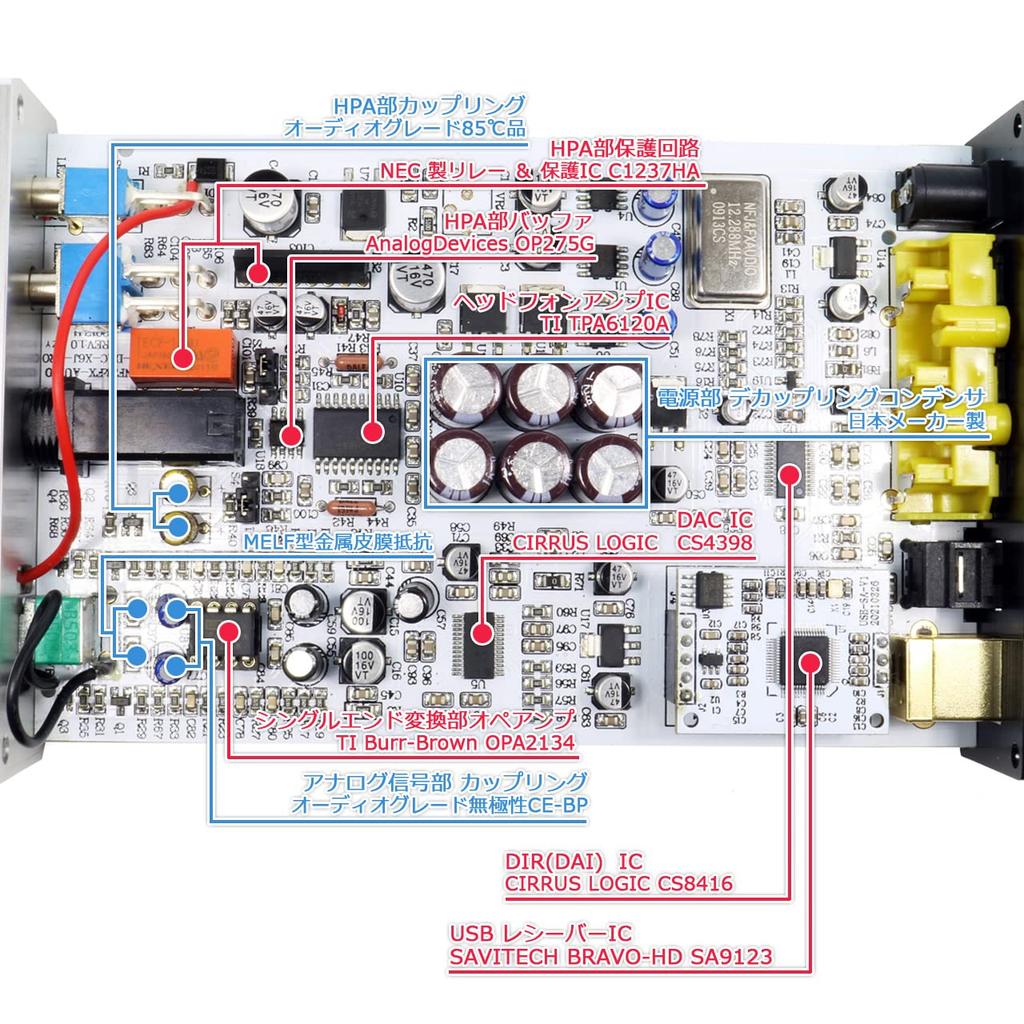

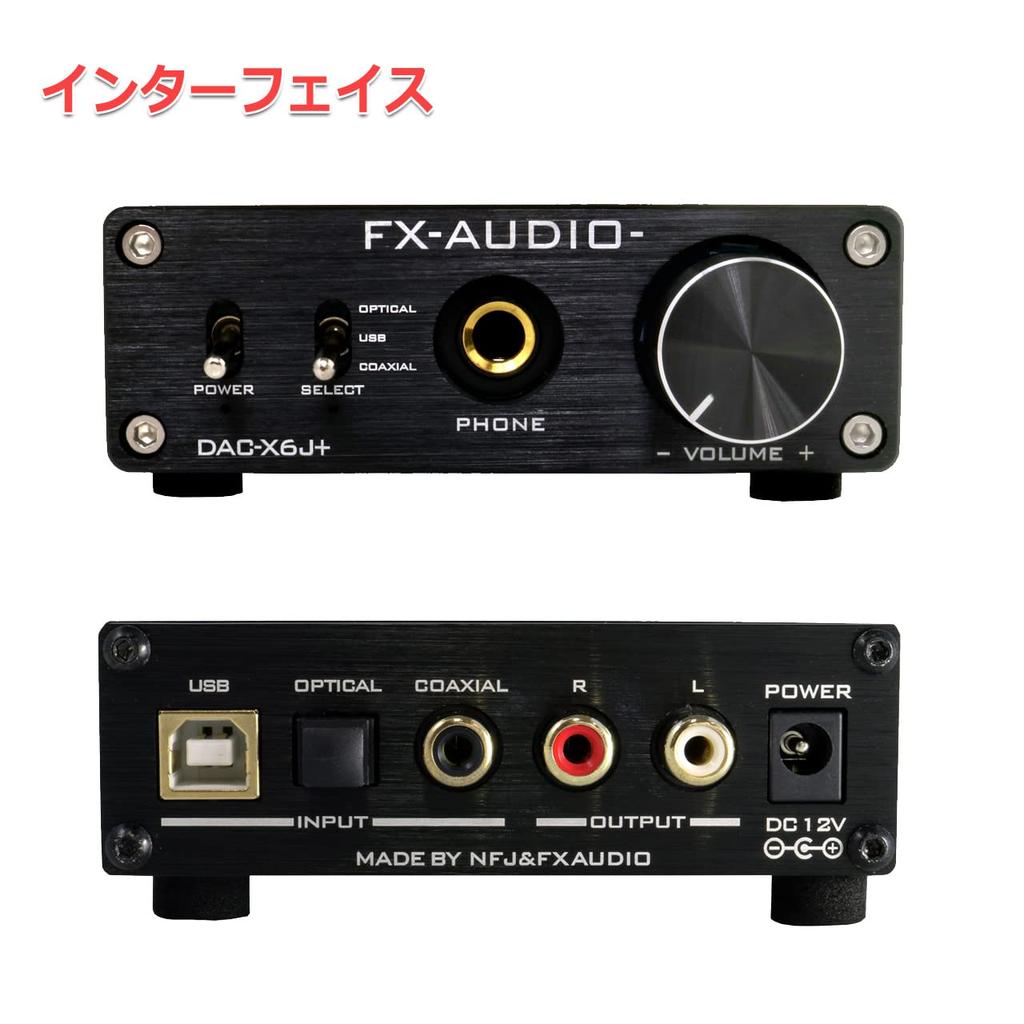

Product Specifications: Brand: FX-AUDIO Model Number: DAC-X6J+ Color: Black Warranty: 6 months from date of purchase Digital Inputs: [3 Inputs] USB Type B port, USB 1.1/2.0 compatible Optical digital audio input (square) Coaxial digital audio input Analog Output: Stereo RCA jack Headphone Output: 6.3mm TRS stereo phone jack Supported Formats: PCM 2-channel stereo up to 24-bit 192kHz DAC IC: Cirrus Logic CS4398 USB Receiver IC: SAVITECH BRAVO-HD SA9123L Audio Receiver IC: Cirrus Logic CS8416 Headphone Amplifier IC: Texas Instruments TPA6120A Headphone Circuit Op-Amp: Analog Devices OP275G Single-Ended Conversion Op-Amp: Texas Instruments LM4562 Functions: Input switching (toggle switch) Headphone output volume adjustment (RCA output can be used simultaneously as fixed output or headphone output) Power Supply: DC 12V / Power Capacity 1A or more (AC adapter sold separately) Power Connector: Outer Diameter 5.5mm, Inner Diameter 2.1mm (Center Positive) Accessories: Instruction Manual Dimensions: W 98mm x D 148mm x H 32mm (excluding protrusions) Weight: 365g

[Compatible OS (USB connection)] Windows 11/ 10/MacOS X / 9.1 or later USB AUDIO CLASS 2.0 compatible: Windows 10 Creators Update version 1703 build 15063 or later, Mac OS X 10.6.4 or later * Works with Windows 10 or later and MacOS using the standard OS driver.

* Operation is not guaranteed with mobile OS devices* Connection with mobile OS devices may not be recognized due to device or software specifications, so operation is not guaranteed. * While operation is not guaranteed, we have confirmed operation with some mobile devices and provide this information for reference. ・iPhone 6/iPhone SE/iPhone XR/iPhone X (connected via Lightning to USB 3 Camera Adapter)

* Specifications and design may change without notice due to product improvements, etc. AC adapter required (sold separately): DC 12V/1A or higher, 5.5mm x 2.1mm DC jack (center positive) CS4398 D/A converter IC SA9123L for high-resolution 24-bit/192kHz USB input High-performance headphone amplifier with dedicated headphone amplifier IC 3-channel digital input switching
