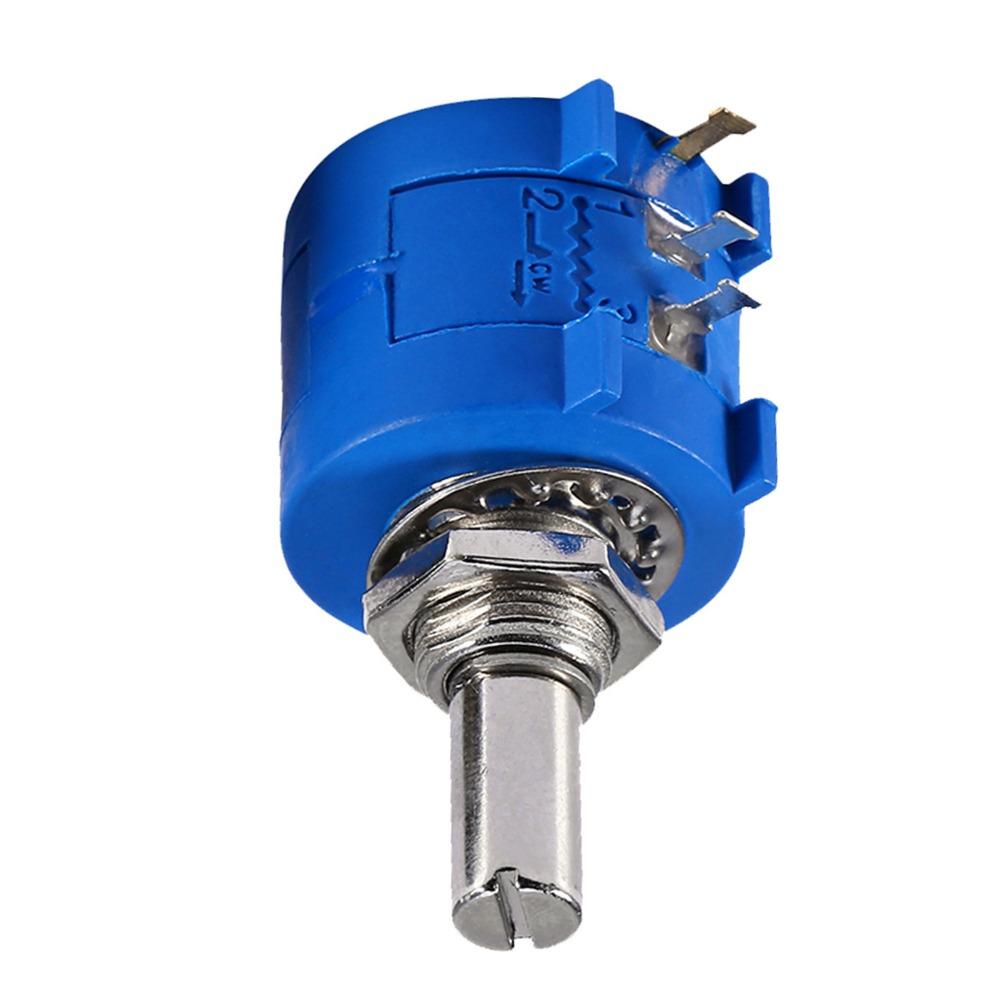

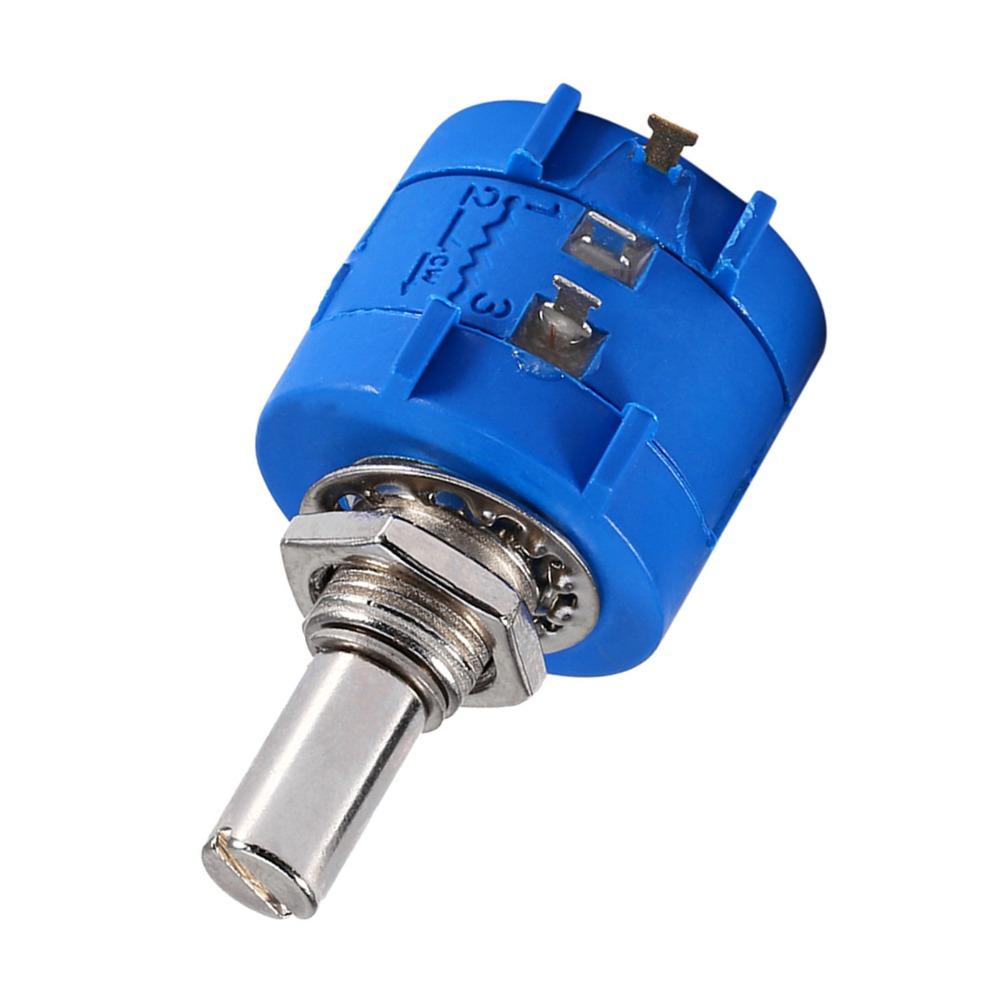

-The multi-turn wirewound potentiometer is small in size, high in sensitivity, and easy to install and disassemble.
-The potentiometer is suitable for all kinds of equipment such as welding machines, wire-cutting machines, and virtually any industrial control system that requires a potentiometer.
-This multi-turn wirewound potentiometer is widely used to adjust timers, speed, and temperature in various types of equipment.
-The multi-turn wirewound potentiometer has a wide range of applications and can be used in a variety of equipment.

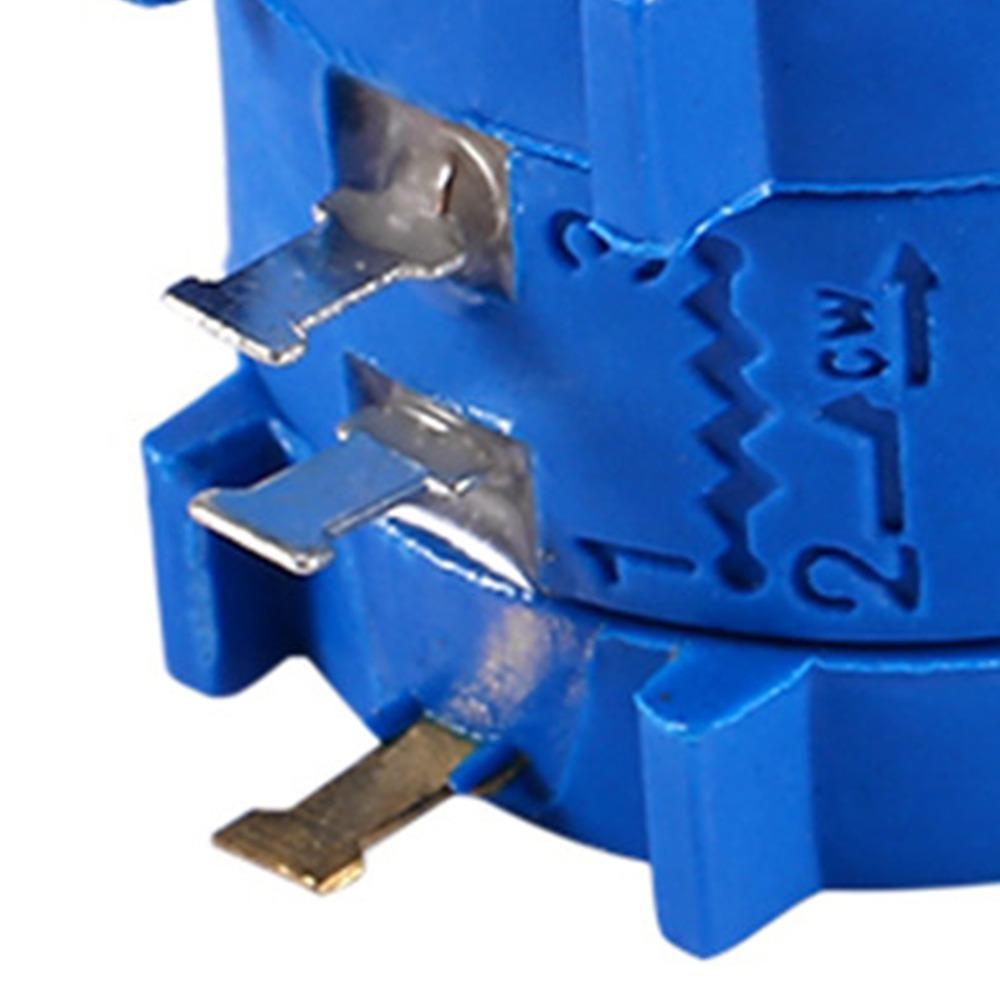

-Wiring the potentiometer before installing it into the panel ensures it works exactly as expected and offers reasonable accuracy.
Specifications:
Model: 3590S-2-103L
Resistance: 10K Ohm
Turns: 10 turns
Resistance Tolerance: ±5 %
Independent linearity accuracy: ±0.25% ;
Rated power (maximum operating voltage 315V): +70°C, 2W
Total Rotational Angle: 3600±5°
Operating Temperature Range: +1℃ - +70℃
Storage temperature: -55℃ - +125℃
Rotational Life: 1,000,000 RMP
Mechanical durability: 10,000 cycles

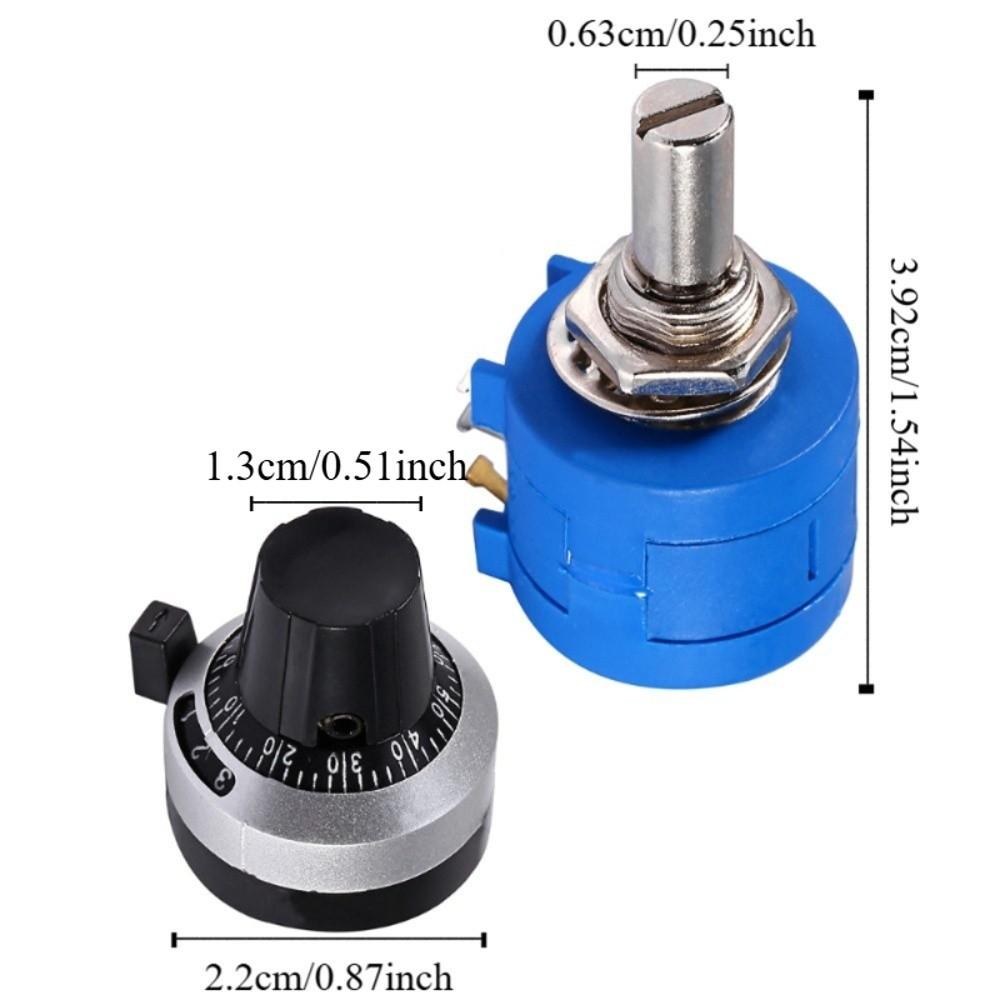

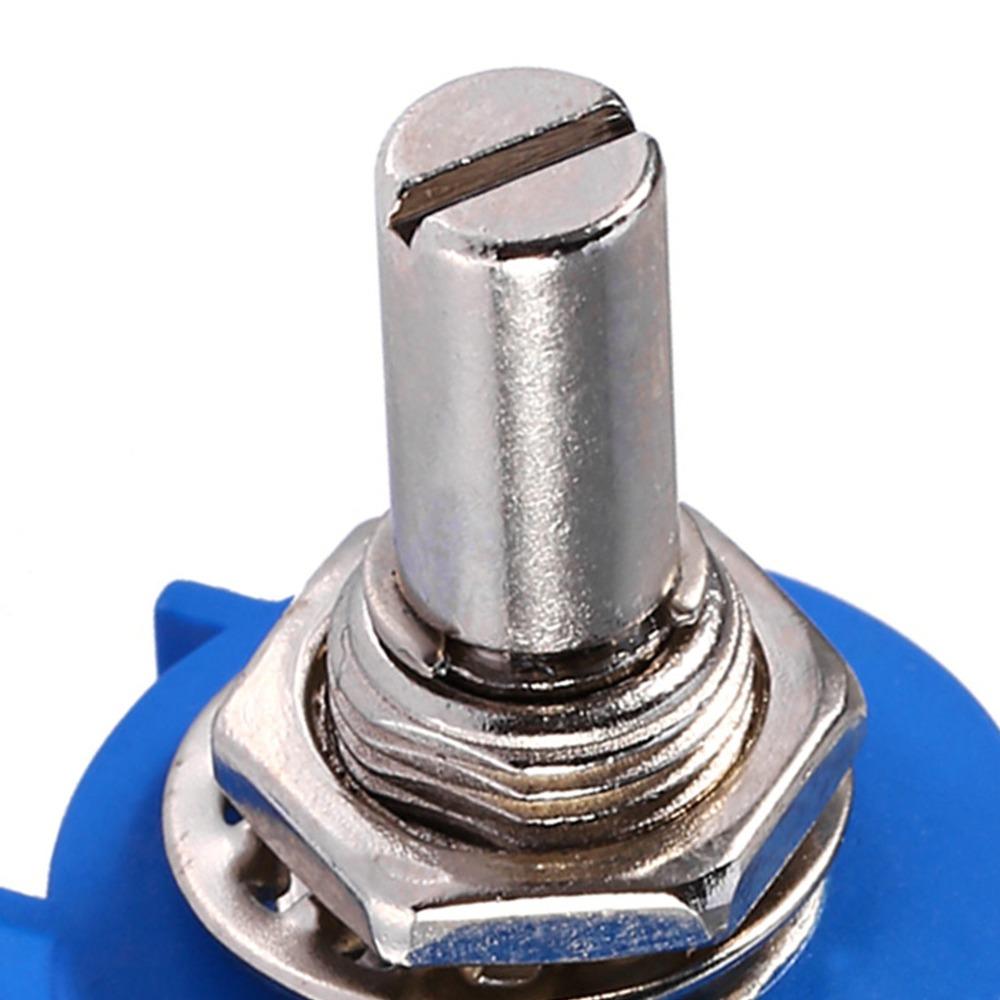

Shaft diameter: 6.3mm
Mounting Hole: 10mm
Note:
1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2.Please allow 0.2 inch measuring deviation due to manual measurement. thanks for your understanding.

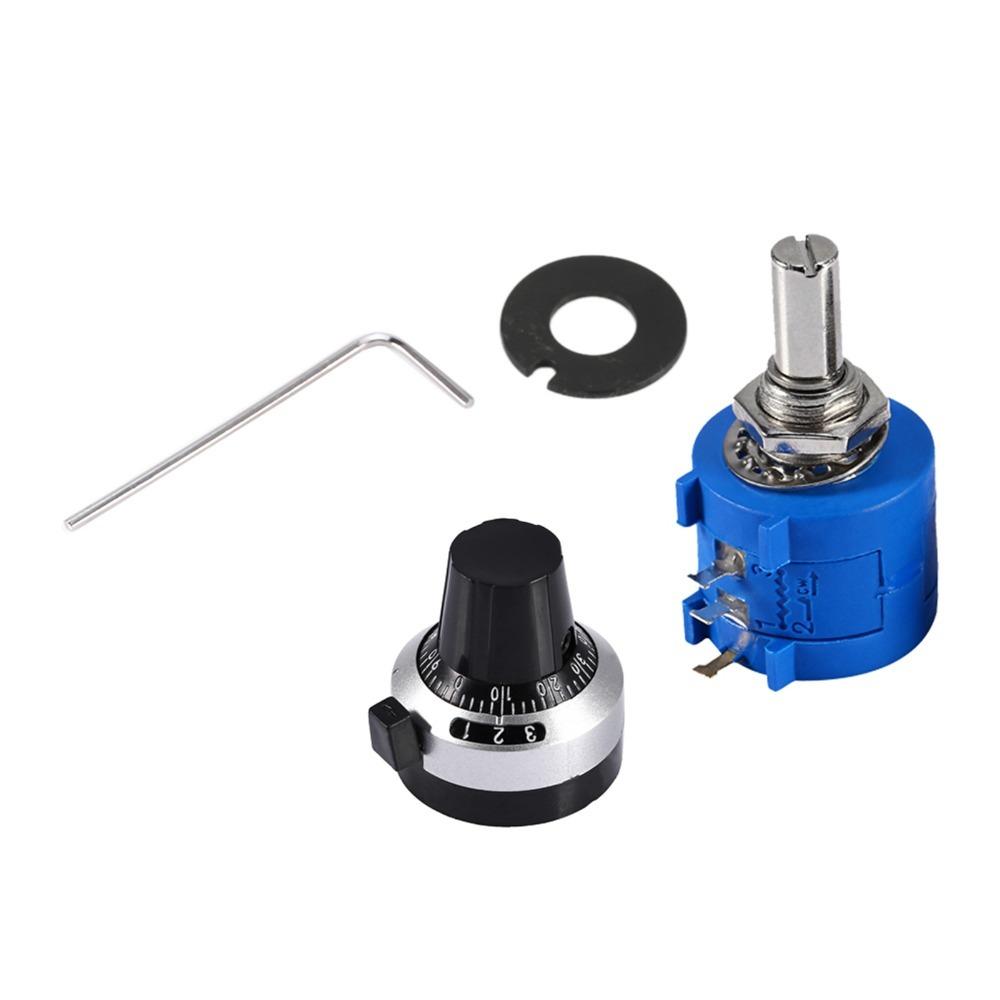

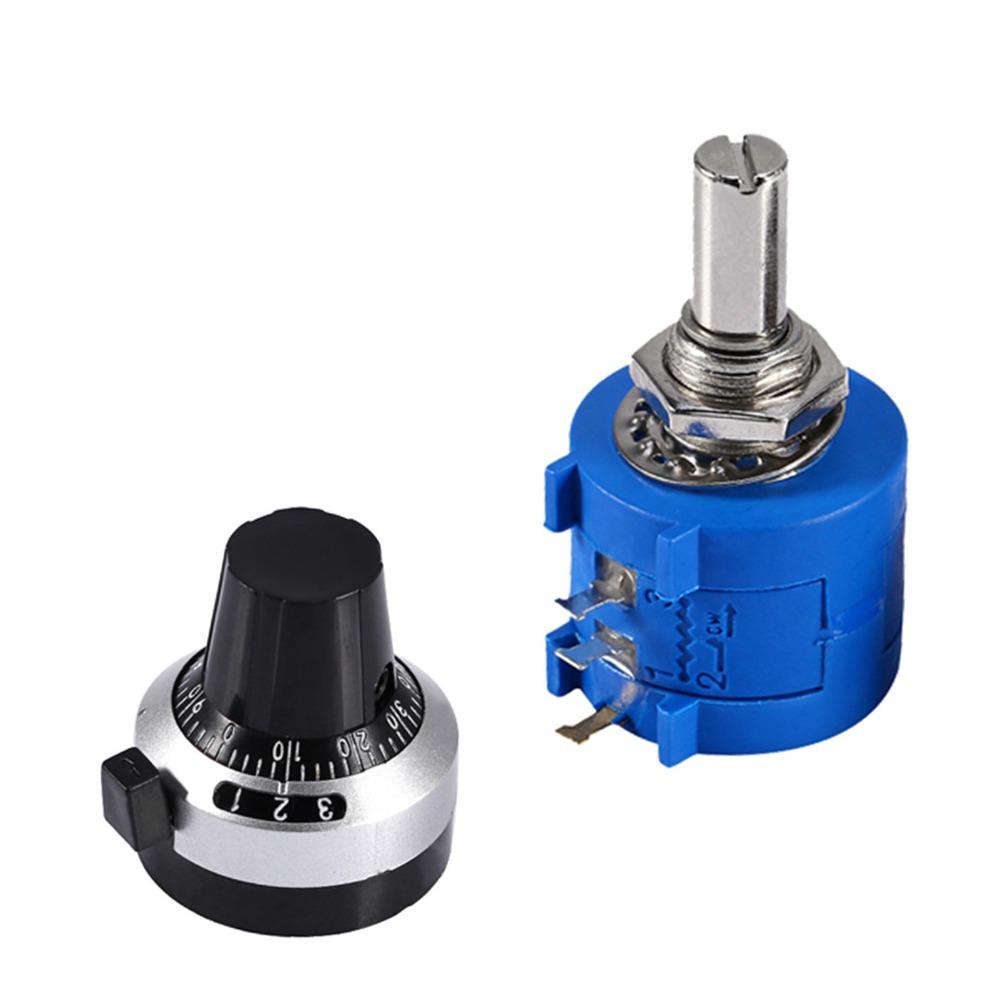

Package List:
1 X 10K Ohms potentiometer

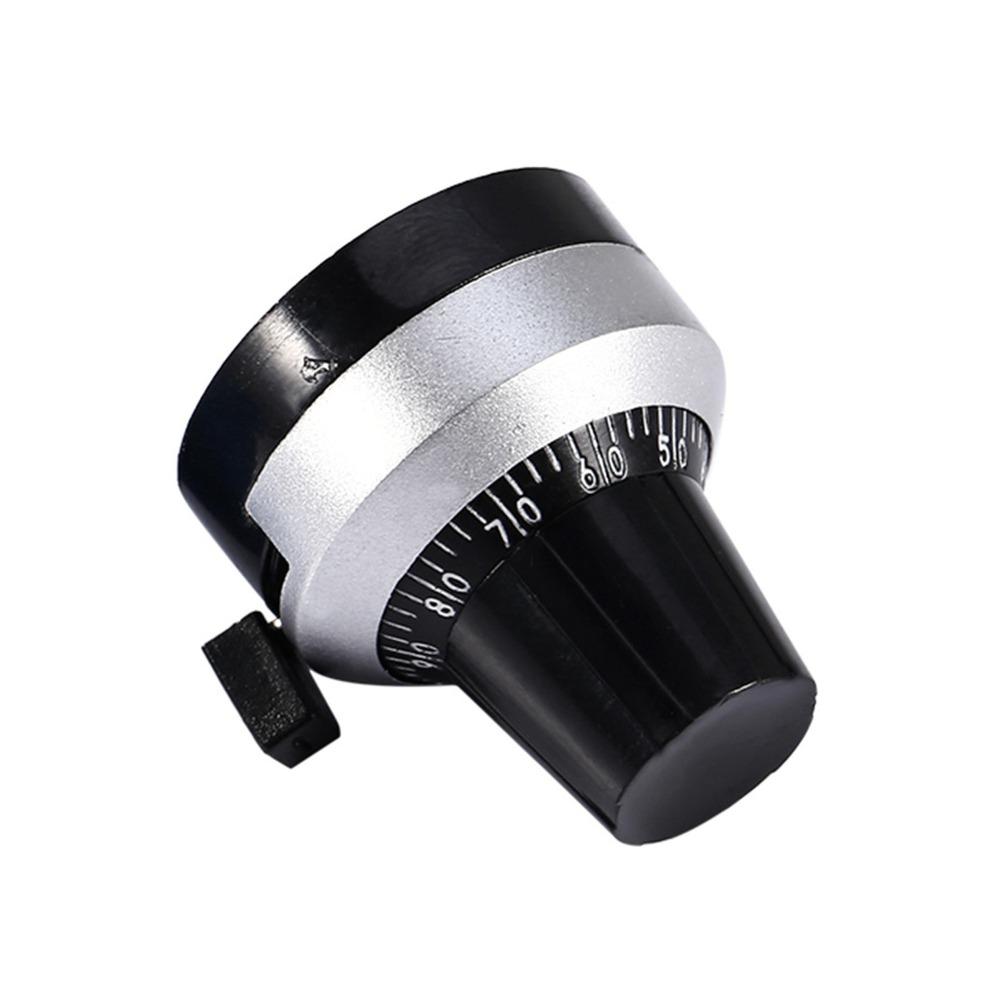

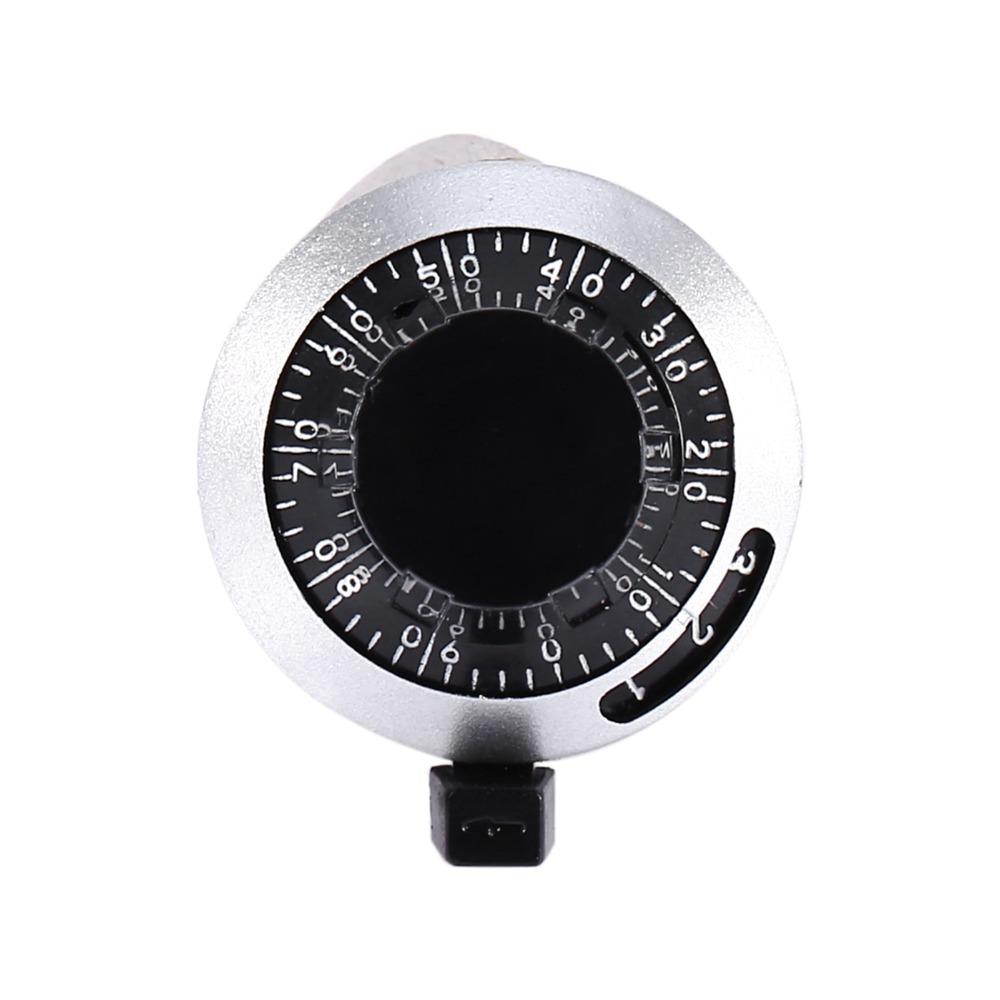

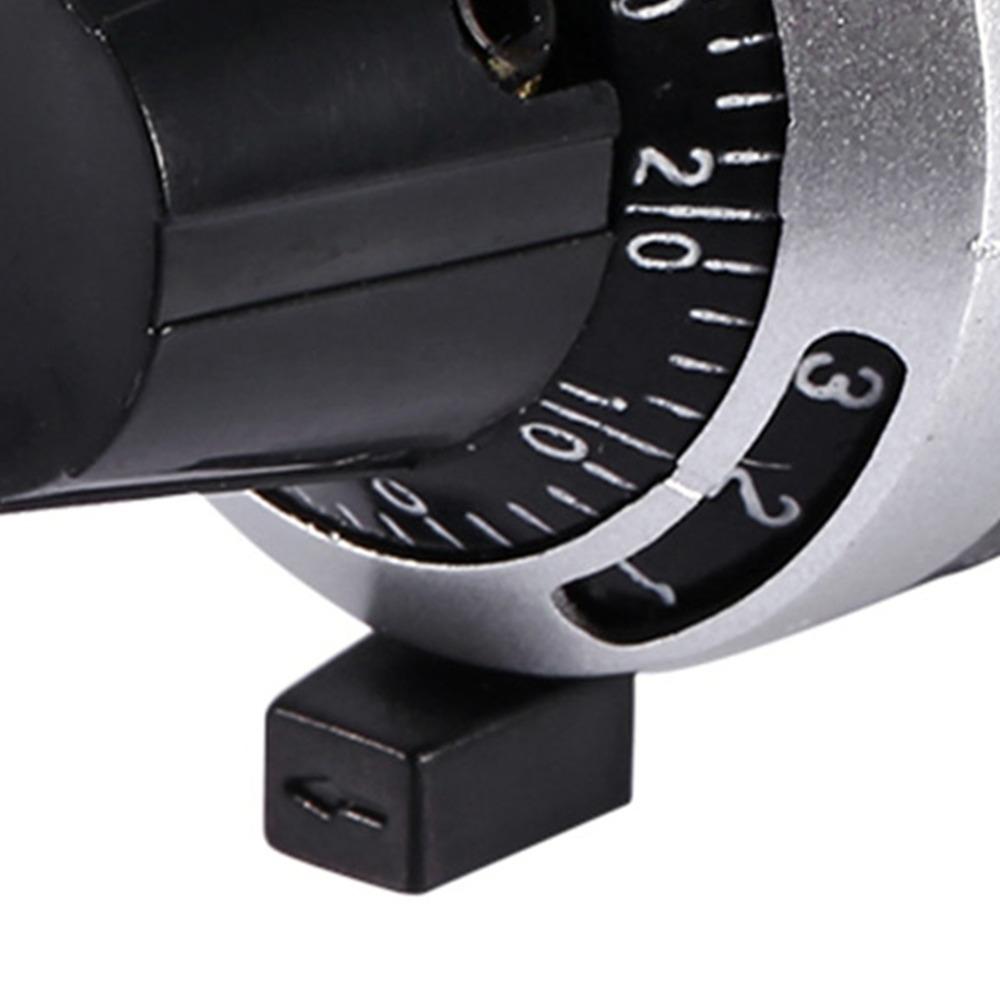

1 X turn counting dial

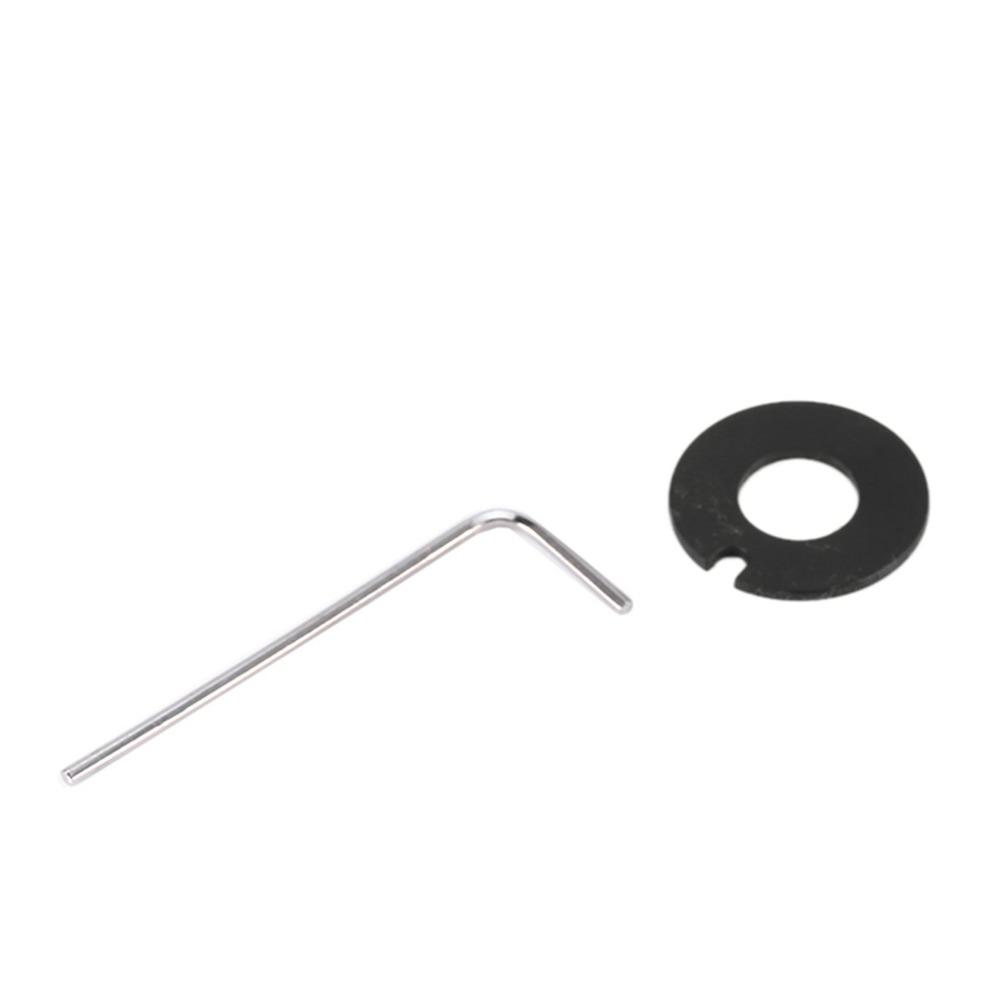

2 X washer
1 X nut
