Specifications:
Model Number : W7
APP:Tuya/TTlock
Fingerprint unlock：Double fingerprint/single fingerprint
Double Fingerprints Version Support Fingerprint, Password, IC Card,
Unlock methods: APP (Options: Tuya / TT Lock)/ Fingerprint / Password / Smart Card / Key Unlock
Power supply: 4.5V- 6.5V ( 4 dry batteries), optional 12V power supply
Typical quiescent current: < 50-65 mA
Number of administrators: 9 groups
Unlock method: Fingerprint, card swipe, password, WeChat applet
Operating current: >250mA
Protection Level : IP68
Fingerprints: 100
Cards: 100
Passwords: 100
Remote control: 30
Password length: 6-8 digits
Virtual password: 16 bits
Low voltage alarm voltage: 4.5+0.2V
Operating temperature: -10°C~ 60°C
Relative humidity: 20% ~ 93%
Features:
Stainless steel material, waterproof, rust-proof
Key Unlock From Outdoor and Indoor
Tuya APP /TT Lock Remote Control, No need gateway
Temporary Password；Timed Password；Support Normal Open Mode (access free)
Virtual Password Anti-peeping Unlock Supported
Mechanical keys and emergency power supply (USB) can be used when the door lock is out of power.
Suitable for 30-60 mm door thickness.(Wooden Door, Metal Door, Outdoor Gate, Glass Door with Frame)
Two Ways of Power Supply
1. Wire-free tntery installation, 6-12 months battery life with 4 *AA batteries installed
2. Wiring installation and power supply
About TT Lock APP
The lock connect with the phone by Bluetooth.
You can open the lock / manage the lock (add user / delete user / set password and so on)
If add a gateway that can connect to Wifi (Gateway buy extra)
It is helpful for Hotel Management
For iOS and Android phone, If add a gateway G2 can connect to wifi
About Tuya APP
1. Tuya WiFi Version Connects to the wifi direct, not need any gateway;
2.Unlock remotely by phone APP;
3.Get the unlock record when someone open the lock;
4.Make the temporary password / timed password in APP

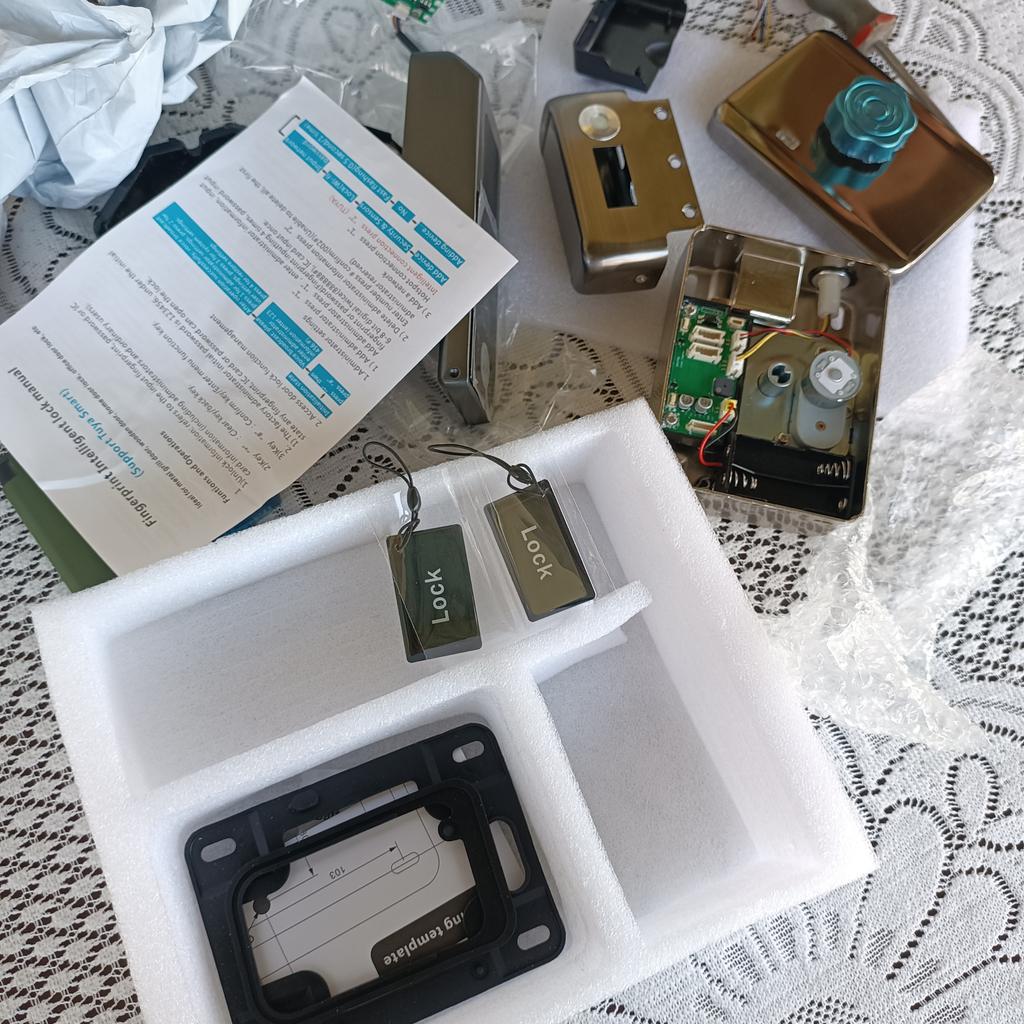

Item Include
Front panel x 1
Back panel x 1 (options)
Cylinder x 1
Smart card x 5
Mechanical Key x 3
Rubber Pad x 2
Screw Kit x 1
Manual x 1
Waterproof Cover x 1
Note:
-Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.
-Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
