Feature:
1. Support pulse signal, and the signal pulse width can be determined that the completion of a valid trigger.
2. Three digital display settings, the delay time information, energy saving standby automatically turns off.
3. Longest delay time of 999 hours, minimum 0.1 minutes, delay time range is adjustable.
4. With optical coupling isolation, improved anti interference ability, industrial level circuit board.
5. All set parameters will be automatically saved if there is a power failure.
6. Interface is clear, simple and powerful, easy to understand, almost meet all your needs.
7. With long service life, it can use up to more than 100,000 times.
Specification:
Condition: 100percent Brand New

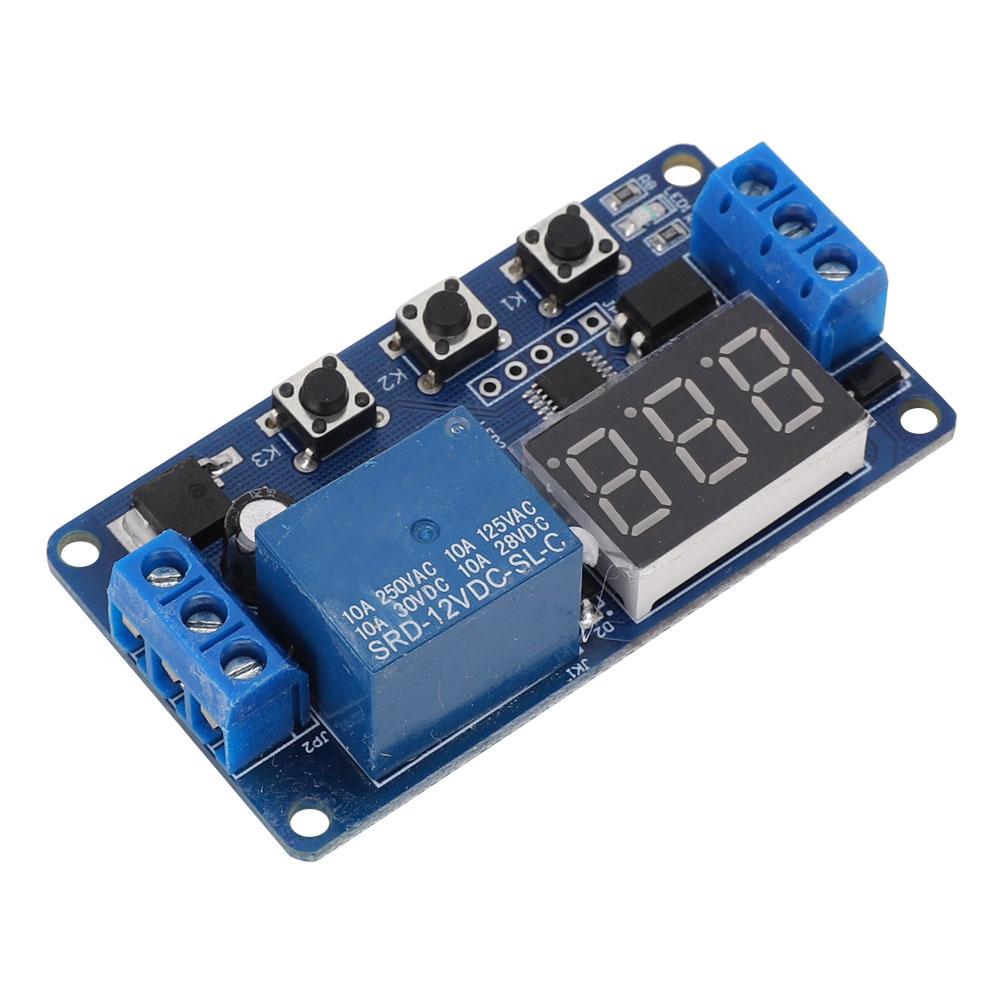

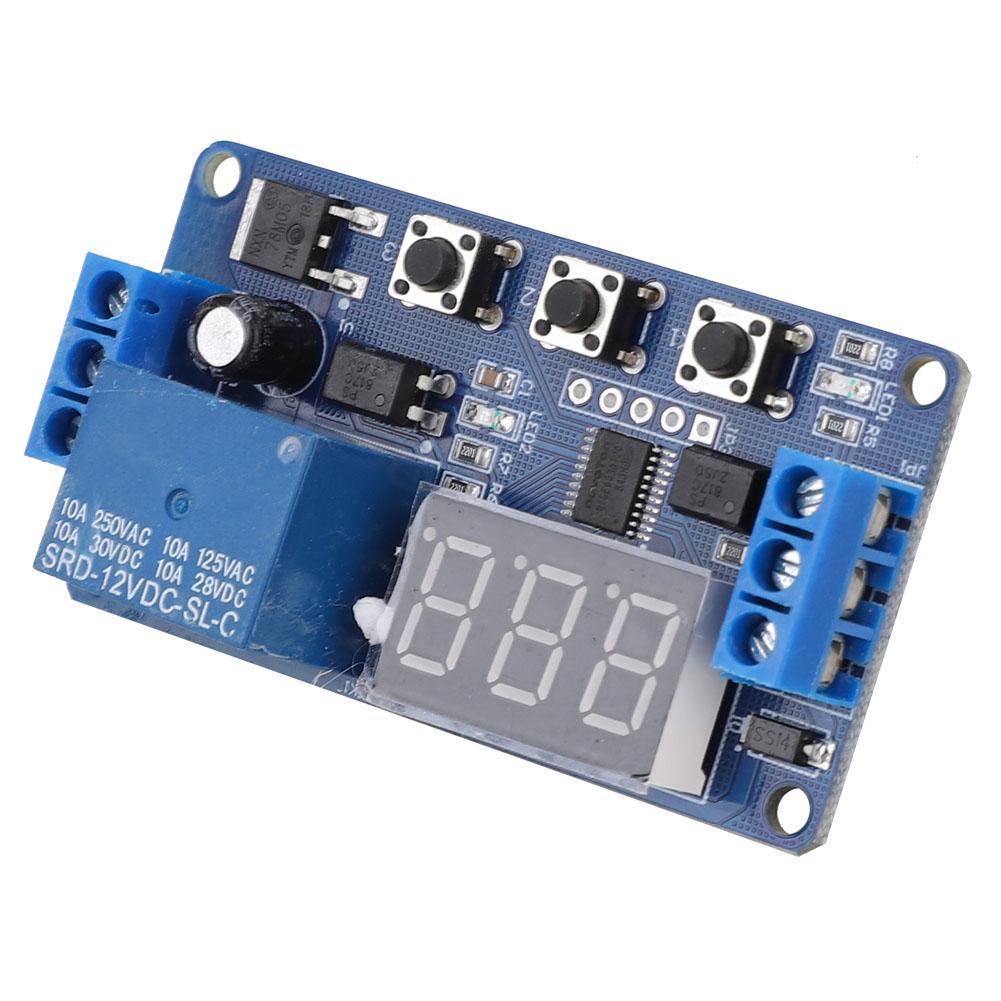

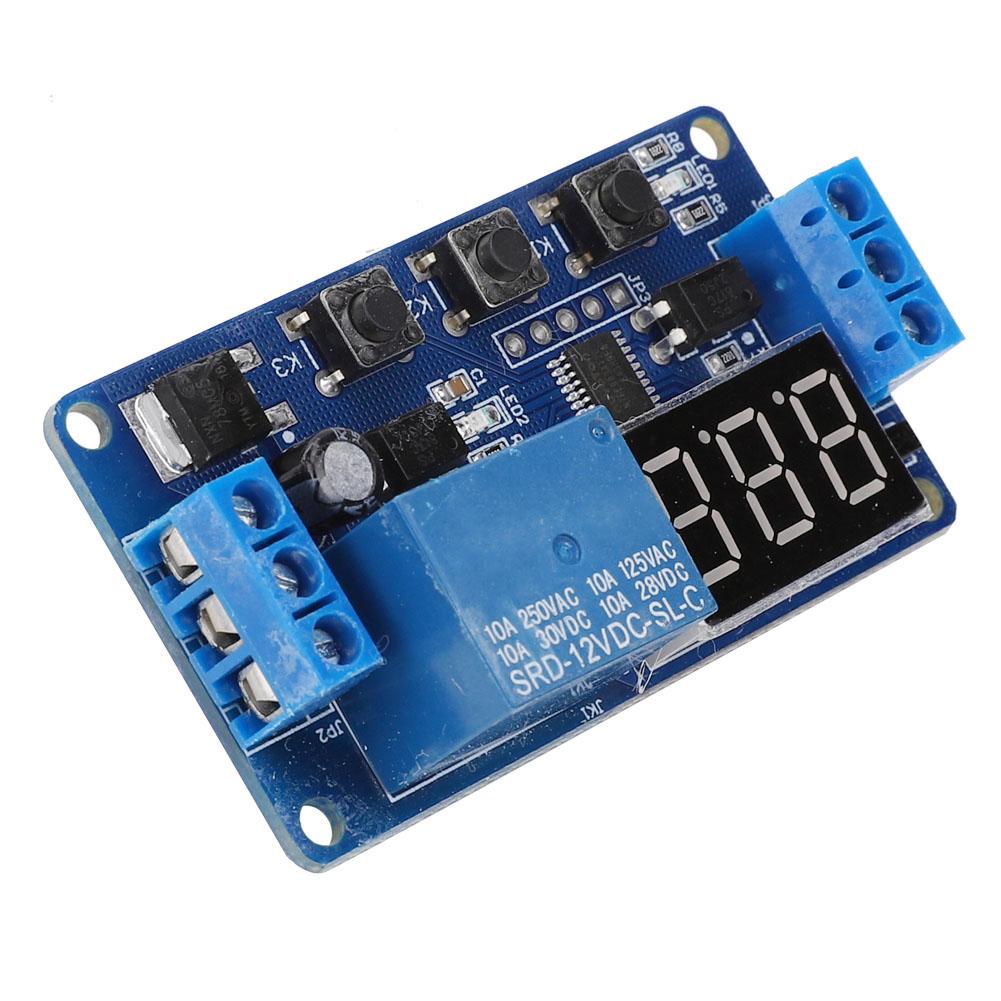

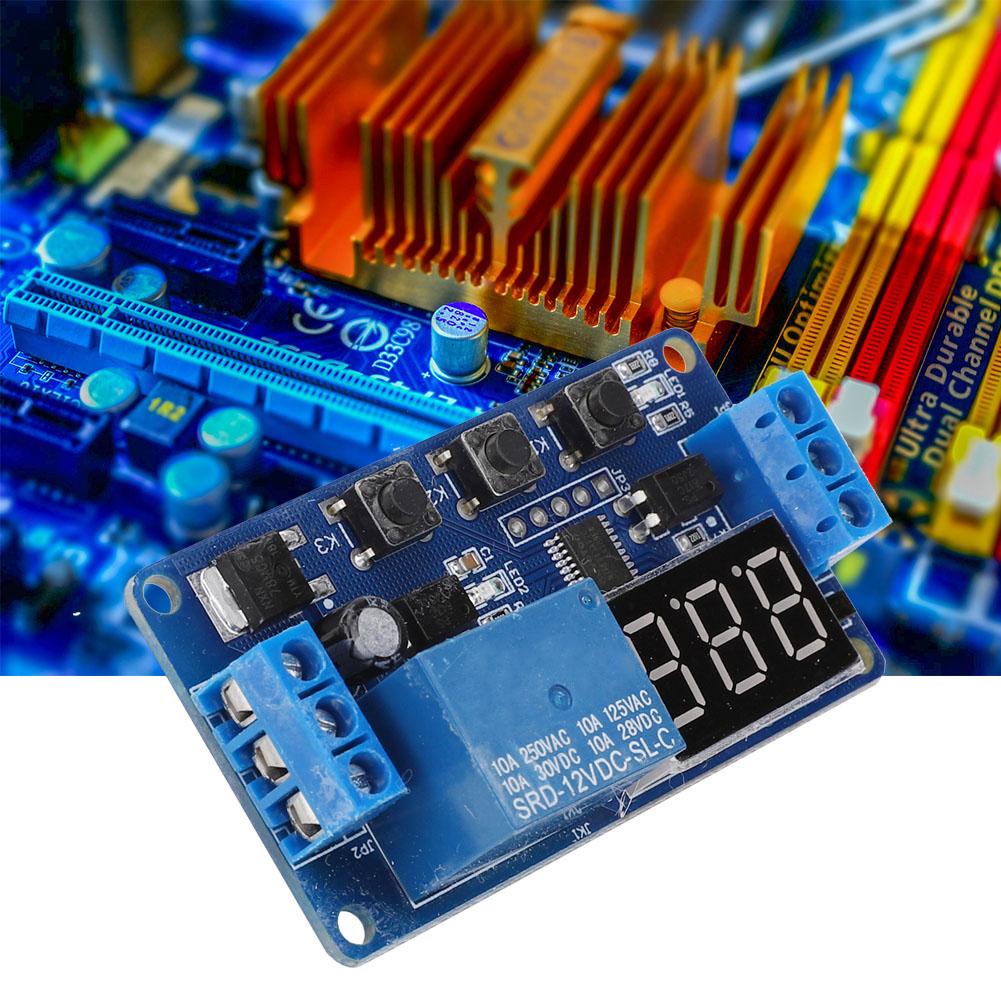

Item Type: Timer Relay Module
Color: As shown in the picture
Size: Approx.64.2x34.8x18.5mm 2.5x1.4x0.7in
Weight: Approx.27g 1oz
Delay Time Range: Minimum 0.1 seconds, maximum 999 hours adjustable.
Output Capability: It can control devices within 30v 5A or AC 220v 5A
Quiescent Current: 20mA
Operating Current: 50mA
Service Life: more than 100,000 times
Working Temperature: 40 85 celsius

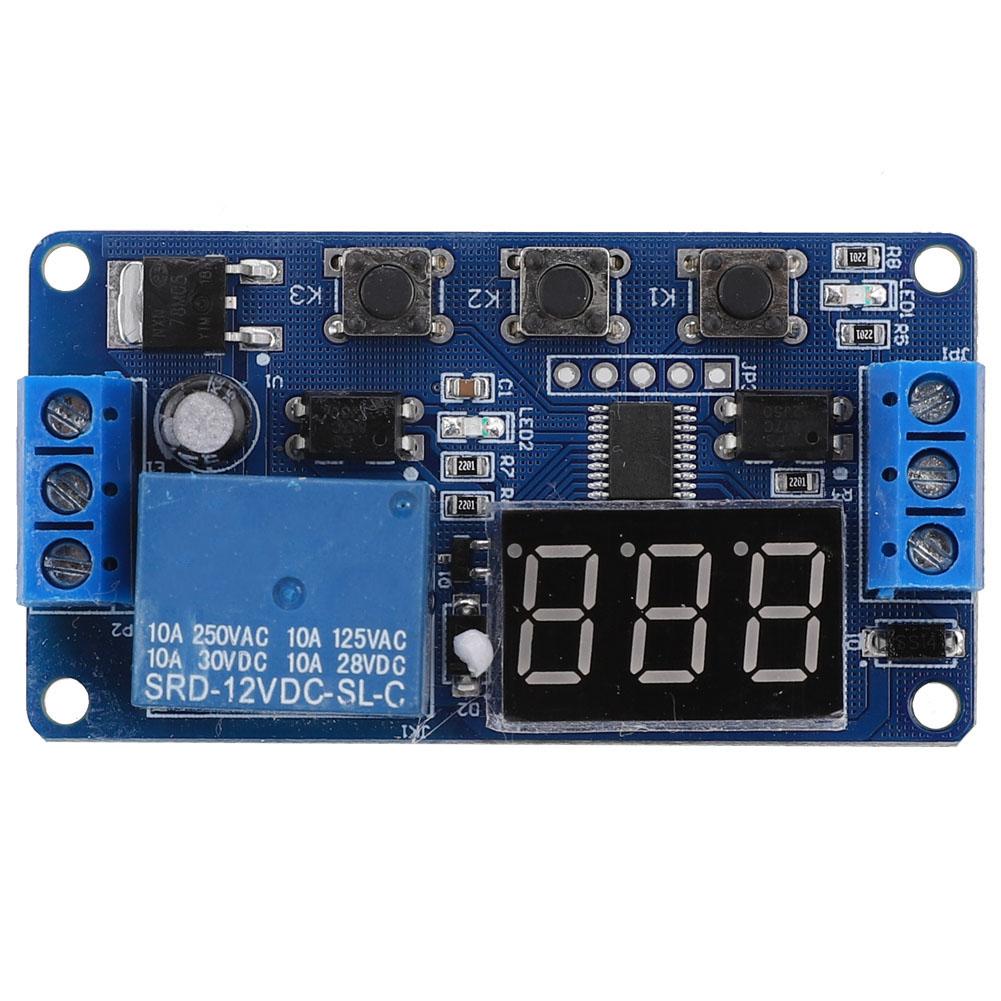

Button Setting Instructions:
K1: Function selection button: Press and hold K1 for 2 seconds, P * appears, short press K1 to select mode, press K2 to enter mode
K2: Shift key: Press to adjust the flashing position of the digital tube, which digital tube flashes, K3 adjusts the value of the flashing digital tube. Until K2 is pressed, the digital tube will no longer flash, the setup time is completed, the setup time is automatically saved and the power is turned off.
K3: When the digital tube is flashing: K3 adjusts the digital change, and 0 to 9 changes sequentially.
Package List:
1 x Timer Relay Module
