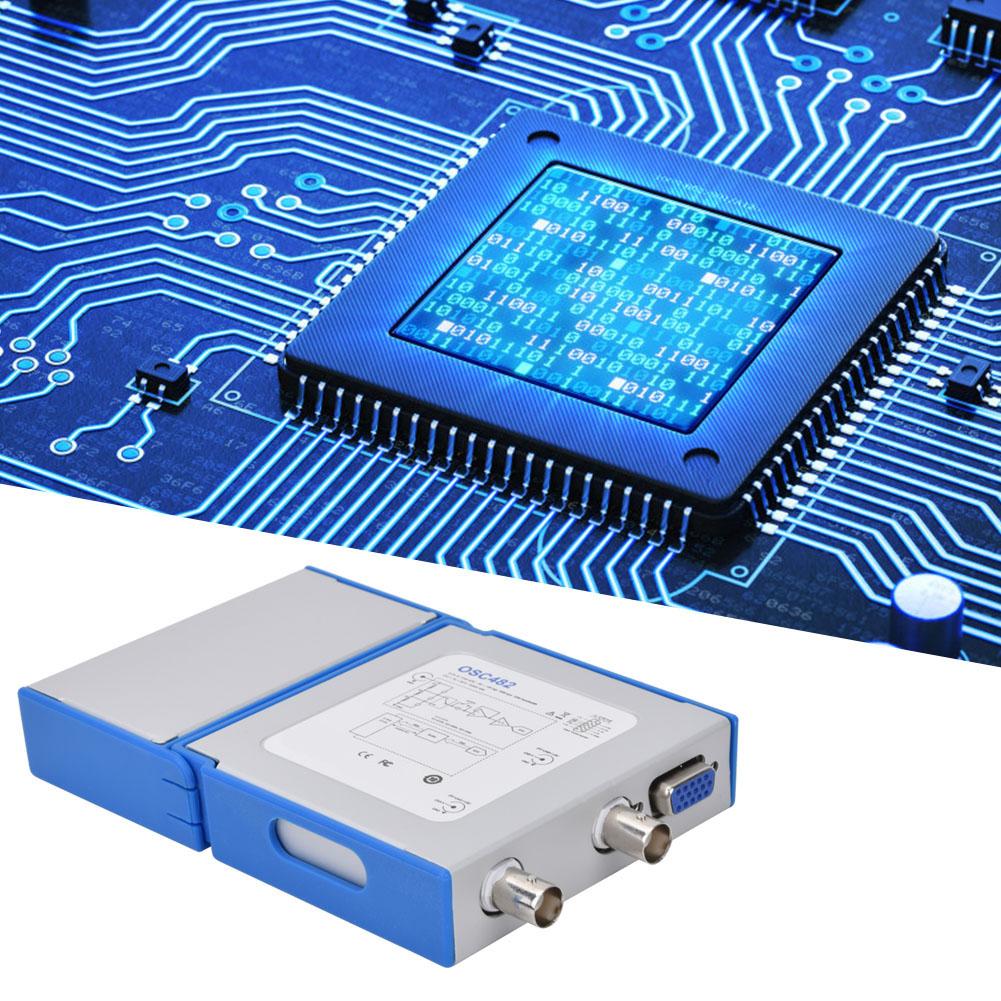

Features:
This oscilloscope can be connected to PC for use, realizing PC large screen display, convenient for observation and maintenance.
Support more than 20 kinds of automatic measurement function FFT spectrum analysis, support a variety of serial protocol decoding.
Open hardware interface supports DIY module expansion and can be used with module logic analysis function.
Provide GPIO interface and software interface protocol for customer s secondary development.
With the function of 13MHZ signal generator and the function of 4 channel logic analyzer, TTL level is easy to operate.

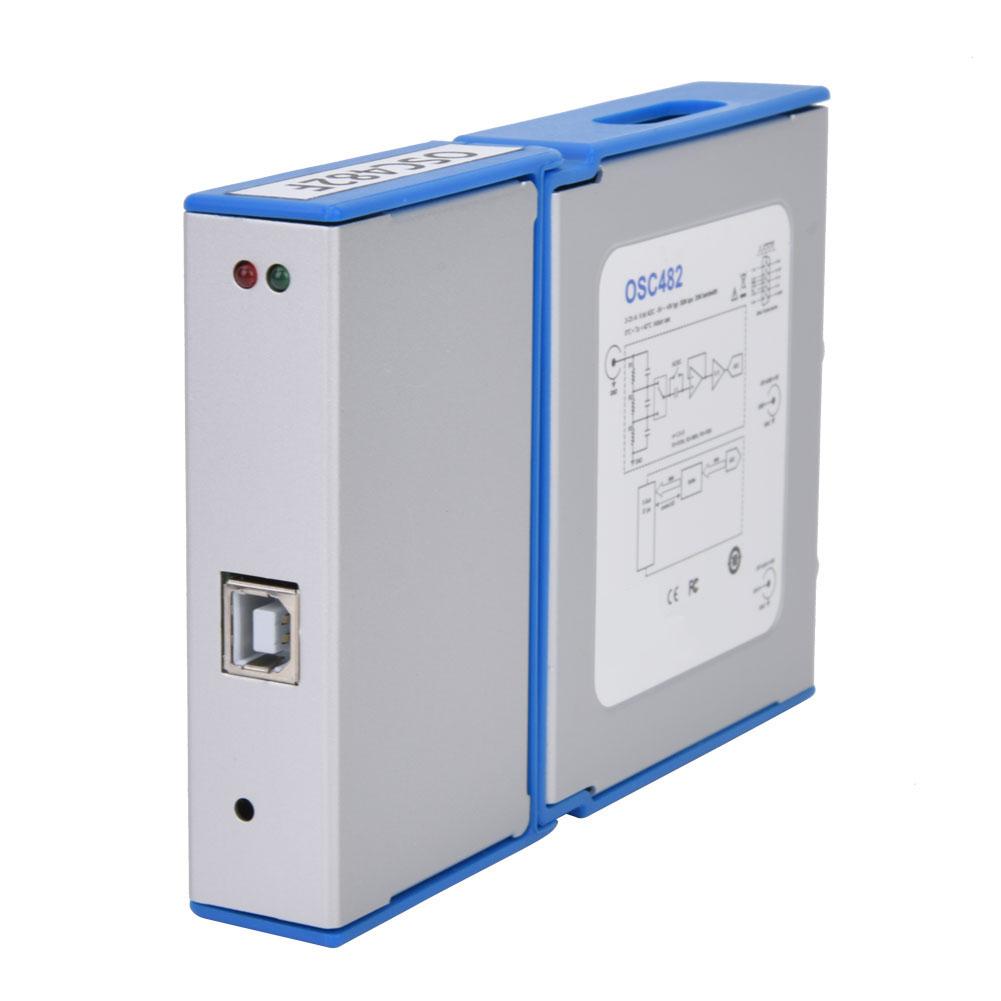

Configuration of USB 2.0 interface, can be directly from the host power, without additional power supply.
The software supports for Windows XP 7 8.1 10 (32 bit and 64 bit), and voice supports switching between Chinese and English.
Small size, easy to carry, suitable for the maintenance and adjustment of notebook computers and production lines, easy to use on business.
Specification:
Condition: 100percent Brand New
Material: Metal + Plastics
Application:
1. General and precise testing.
2. Embedded in teaching equipment or industrial test system.
3. Detection of power ripple and noise.
4. Multi sensor system and serial bus decoding.
5. Analog data acquisition and secondary development and application of digital IO control project.
6. Voltage current data recording and analysis of solar energy system and lighting system.
7. Fault Diagnosis Tool for Field Maintenance Engineer.
8. Basic tools for DIY enthusiasts and creators
Model

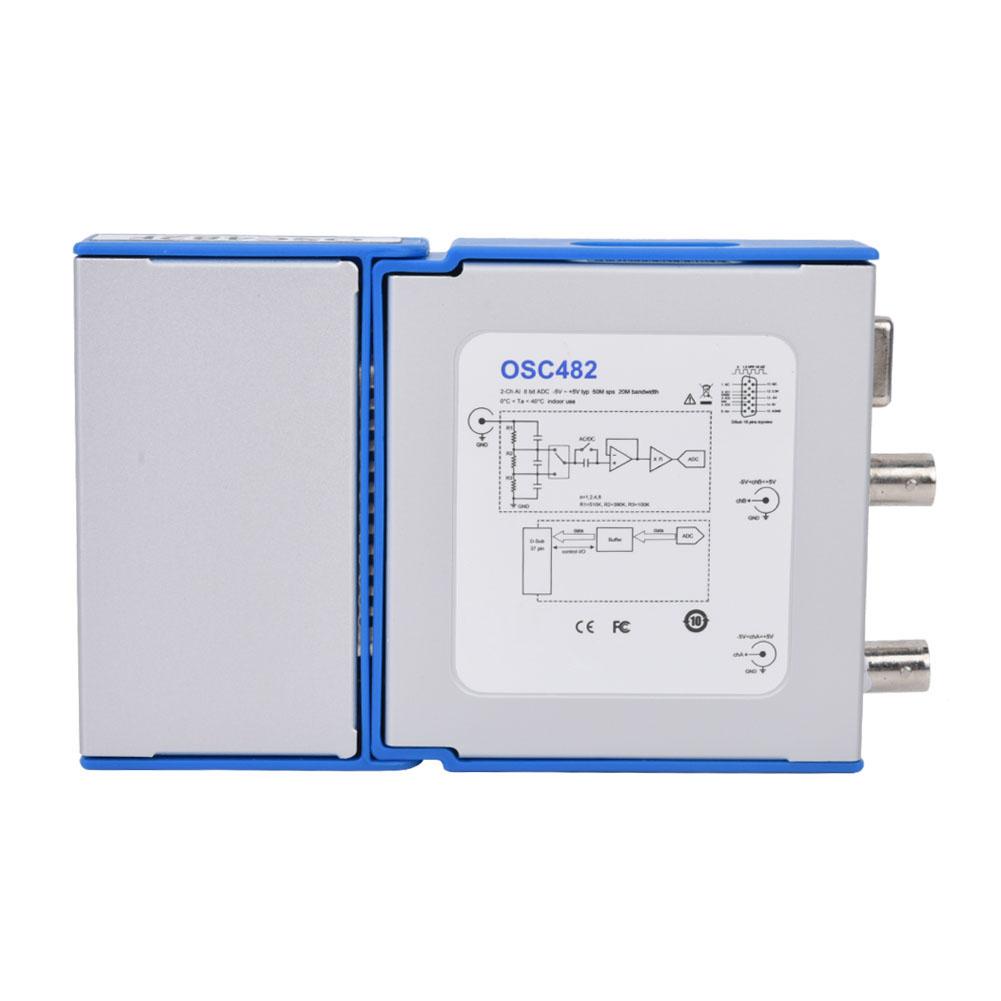

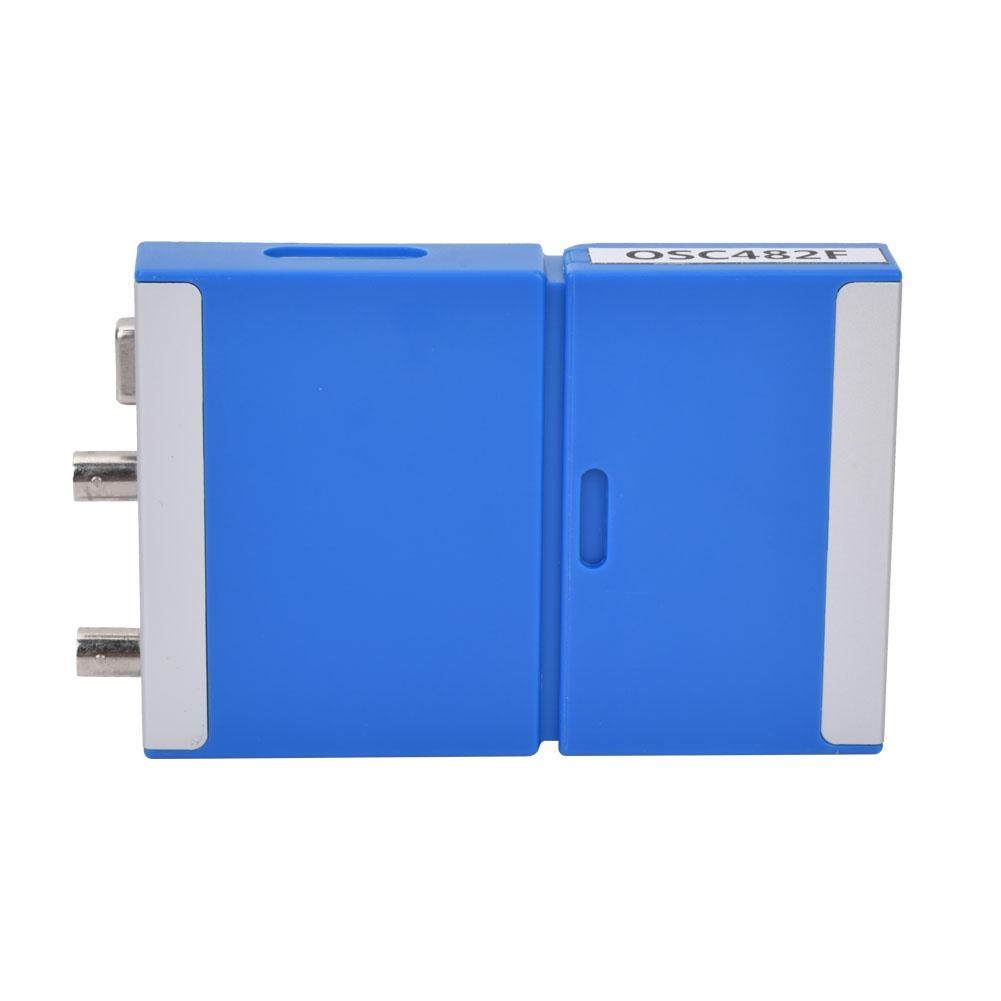

OSC482F
Detail
OSC482M + 13M Hz Signal generator + 4 channels Logic analyzer.
Input channels
2
Maximum sampling rate
50M S s
Bandwidth
20M Hz
FFT
Support
Data logger
Support
I O extension
Support
Signal generator module support
Support
Logic analyzer module support
Support
Connector type

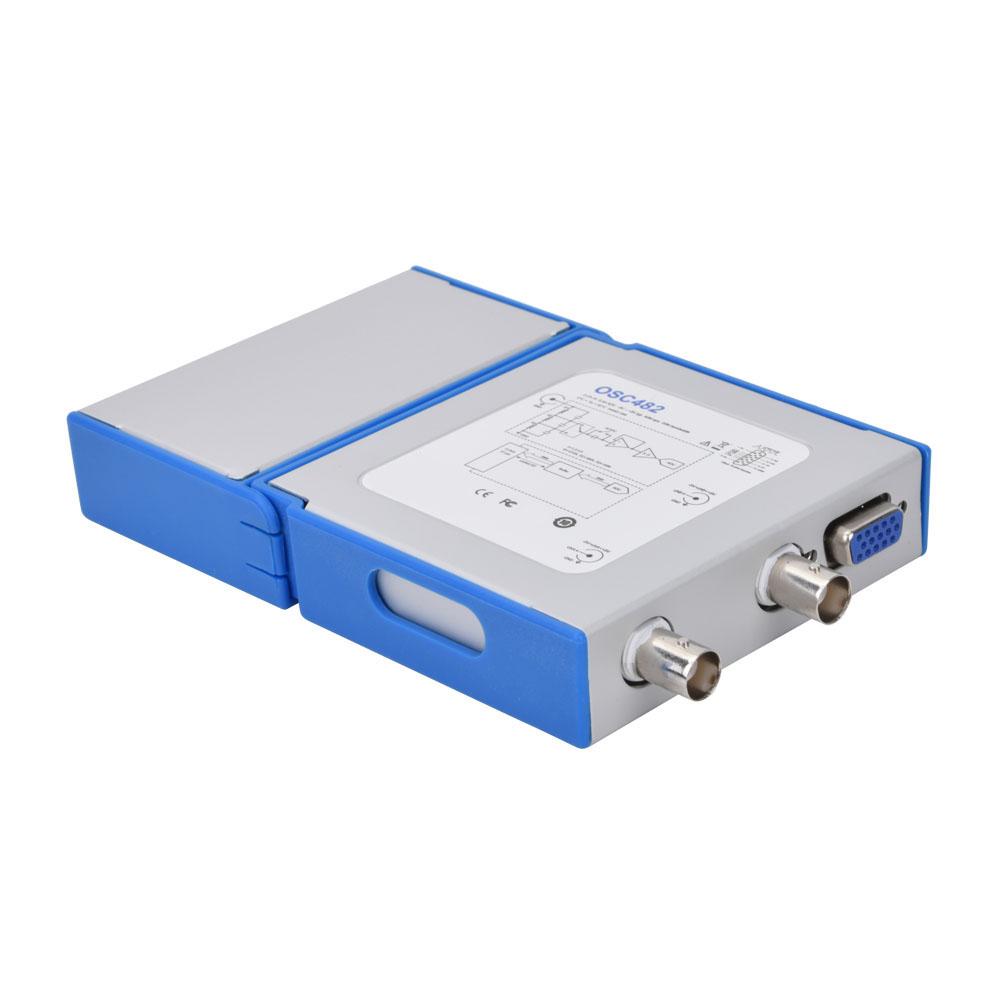

2 channels with BNC sockets, 20 mm spacing.
Vertical resolution
8 Bit.
Maximum sampling rate (S s)
50M
Bandwidth ( 3 dB)
20MHz
Input coupling
AC DC.
Input characteristics
1M Ohm || 25pF.
PC OS requirements
For Windows XP 7 8.1 10 (32 bit and 64 bit).
Overvoltage protection
+ 60.0v (x1), + 600.0v (x10). (DC + AC peak)
Triggering type
Rising falling edge according to trigger level.
Triggering mode
None, auto, normal, single.
Pre trigger capture
50percent of capture size.
Automatic measurements
Maximum, minimum, average, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, peak to peak value, Deep measurement.
Samples Interpolation
Linear or sin(x) x.
FFT
1024 16k points.
FFT window function
Rectangle, Hanning, Hamming, Blackman.
Math
A+B, A B, AxB, X Y.
Acquisition Modes
High Resolution mode Peak detect mode.
Waveform recording and playback
File format :
*.oscxxx.
Record depth:
50 450 frames.
File size:
6 MB 20GB.
Data logger Sampling Interval
1 second to 1 hour.
Data logger Record Duration
1 minute 72 hours.
Temperature range
Operating: 0 degrees C to 40 degrees C (20 degrees C to 30 degrees C for stated accuracy). Storage: 20 degrees C to +60 degrees C.
Reference Output
1K Hz, 1.5 V square wave output with 50percent duty cycle.
Size
153(L) x 93(W) x 23(H) mm.
Languages (full support)
English, Chinese (simplified).
Compliance
CE, FCC.
Weight
604g 21.3oz
Input sensitivity (10 vertical divisions)
20 mV div to 2 V div.
Input ranges( probe x1)
+ 100 mV to + 5 V full scale, in 7 ranges.
Timebase selection (10 horizontal divisions)
50 ns div 2 s div, in 19 ranges.
Typical noise (peak to peak voltage)
20 mv div
2 mv
50 mv div
3.4 mv
100 mv div
6.4 mv
200 mv div
21 mv
500 mv div
32 mv

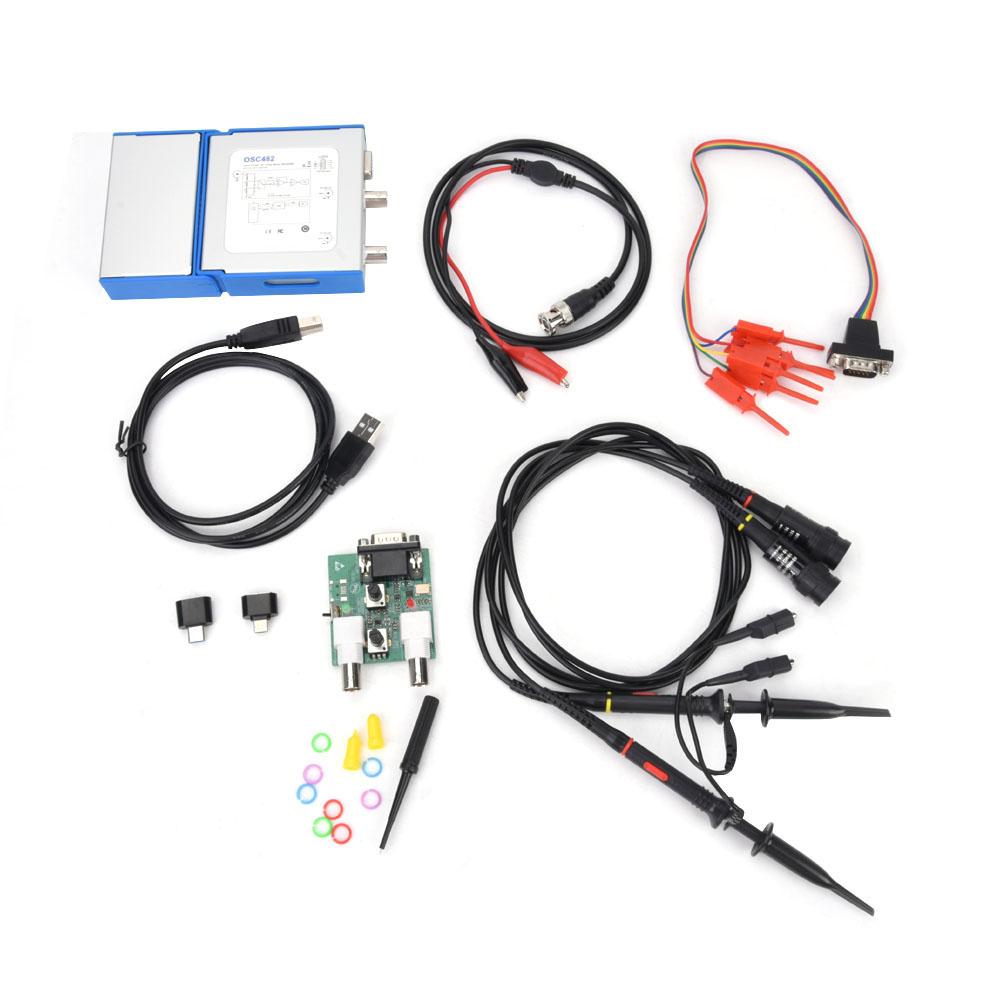

Package List:
1 x Oscilloscope

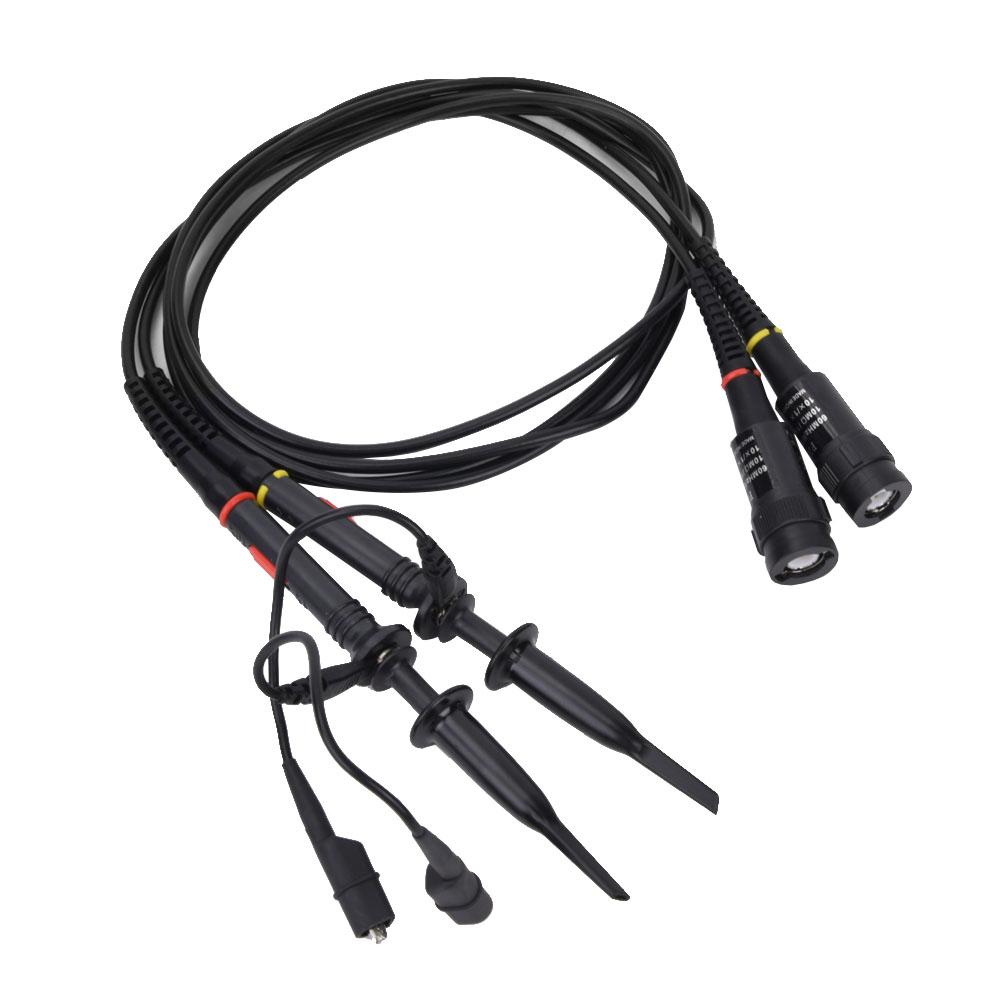

2 x Probes
1 x Probe Adjustment Kit
1 x USB Computer Cable
1 x BNC Clip
2 x Adapters
1 x 4 Channel Logic Analyzer
1 x Signal Generator
.
