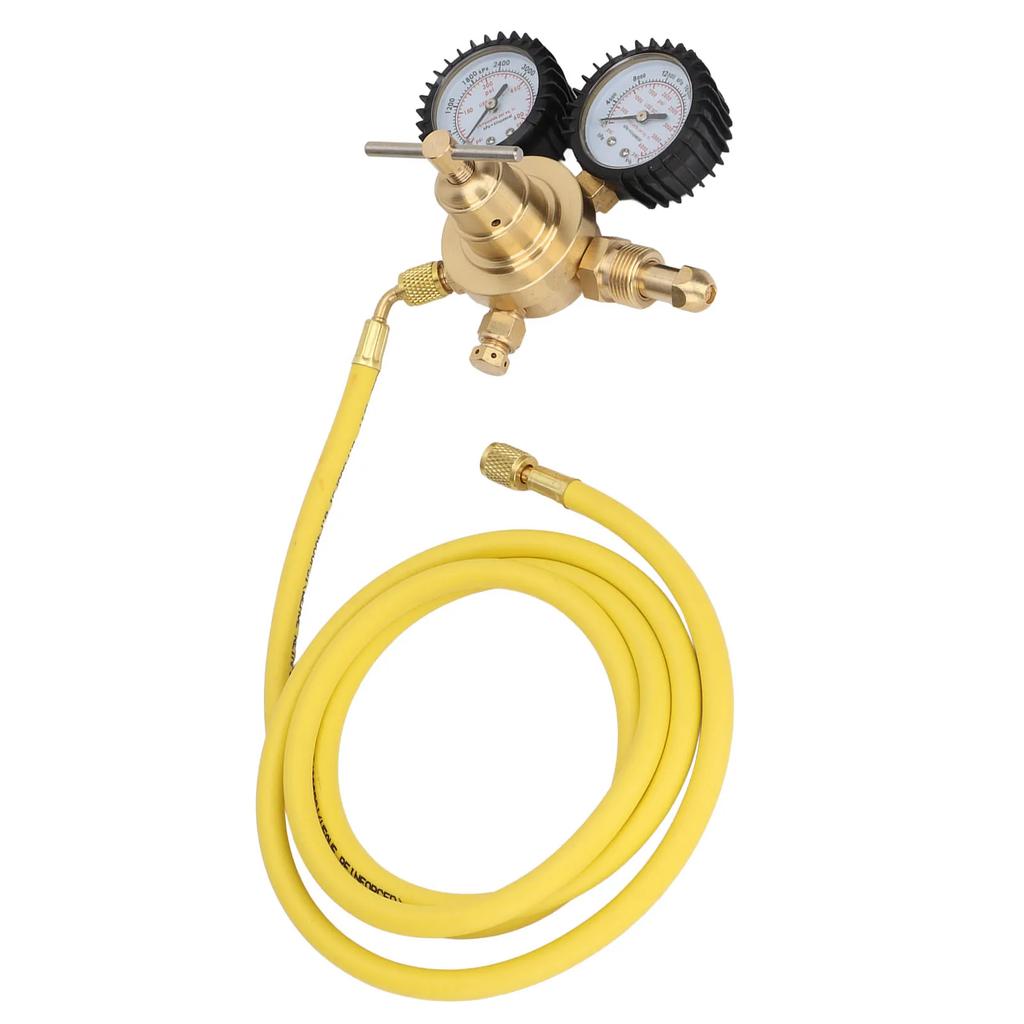

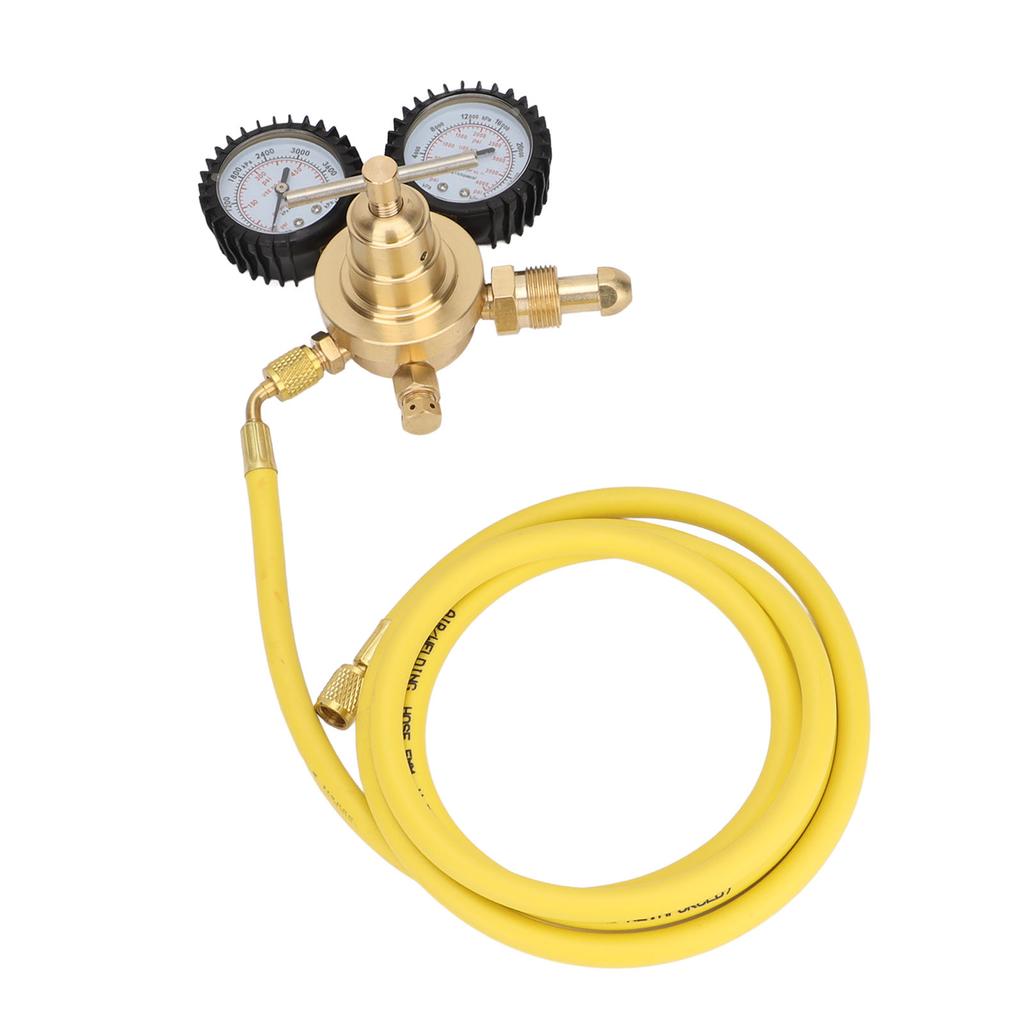

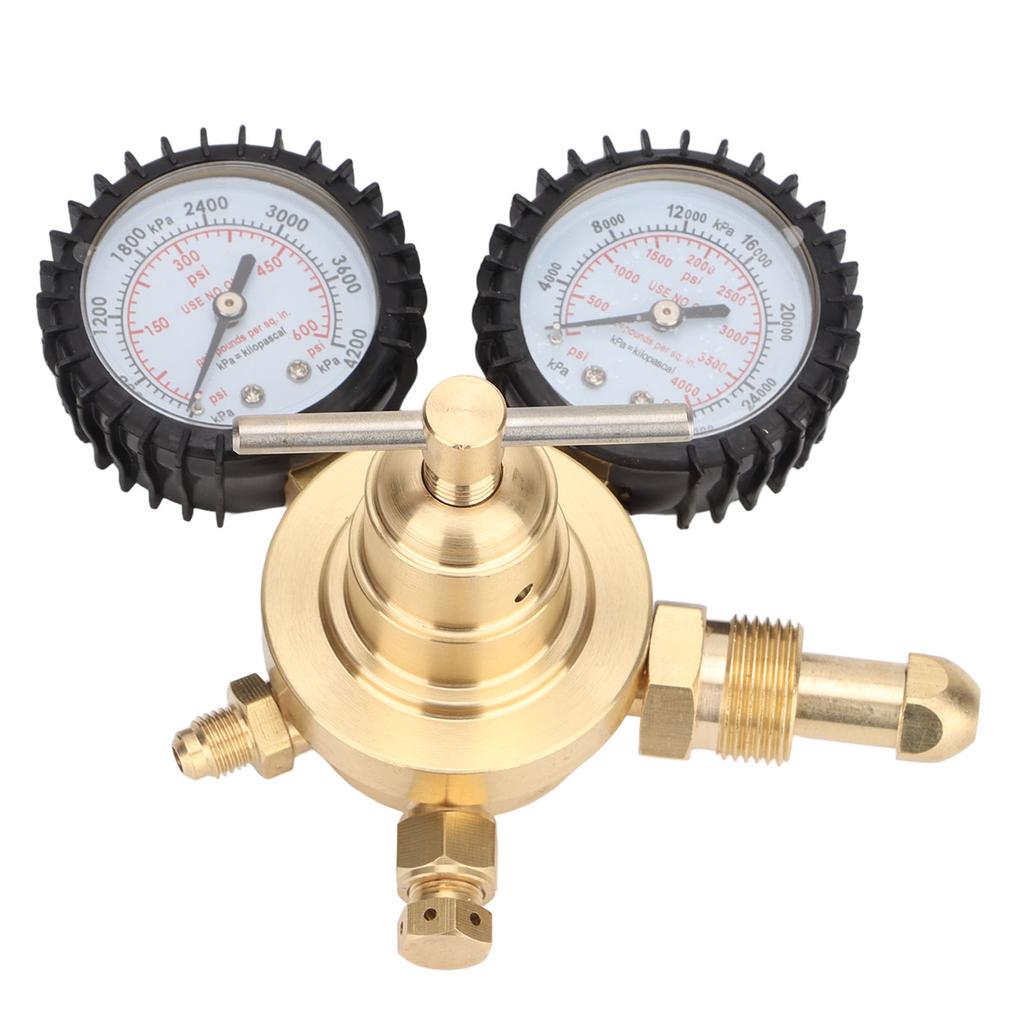

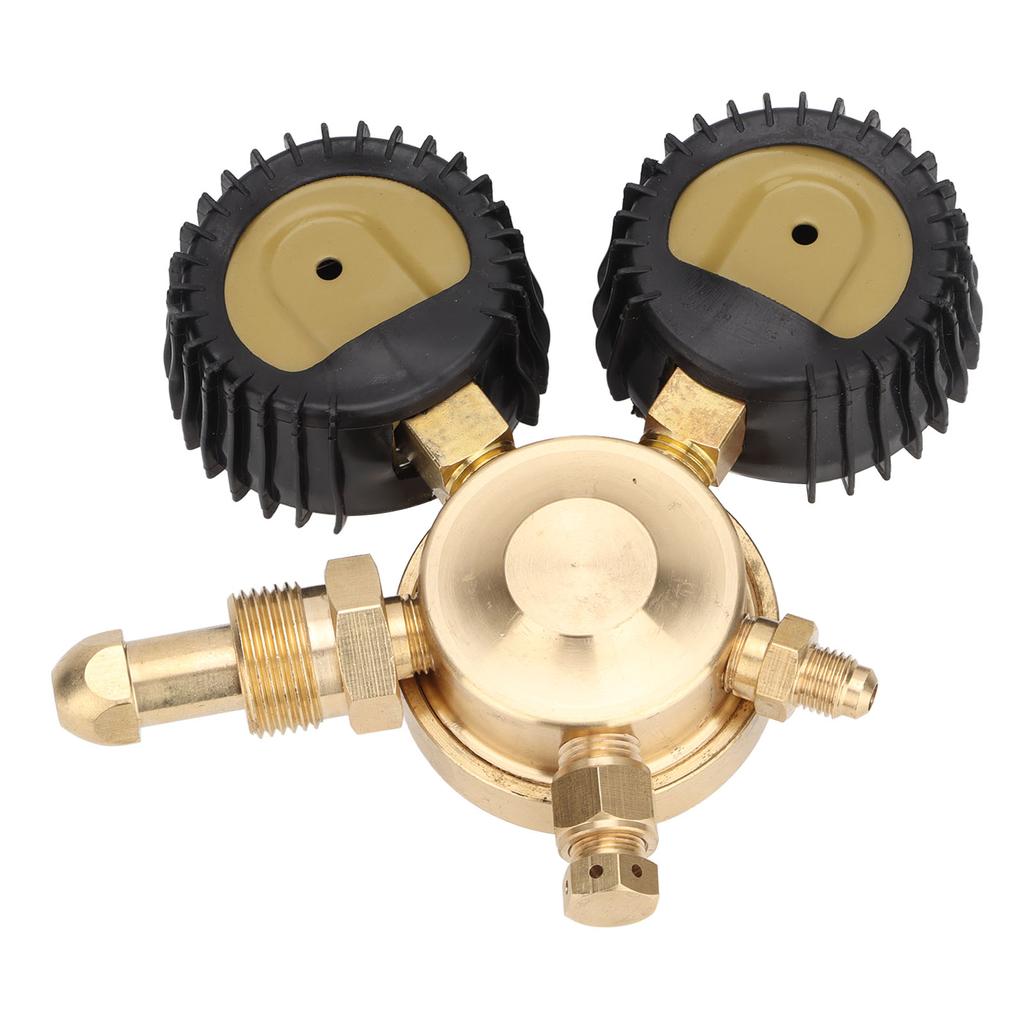

Good luck with your favorite purchasesNitrogen Pressure Gauge Regulator Test Kit Brass Inlet Outlet Connection with 200cm Hose
Feature:
1. STABLE MATERIAL: Nitrogen pressure gauge regulator is made of excellent brass material, reliable and stable, to ensure long term use, you can use with confidence
2. SAFETY REGULATION: Nitrogen regulator low pressure gauge include export pressure regulator, which can effectively regulate nitrogen pressure and ensure the safe operation of equipment
3. CONVENIENT AND FLEXIBLE: Nitrogen pressure gauge is equipped with pressure gauge and valve for easy monitoring and flexible control of nitrogen pressure
4. ACCURATE AND STABLE: Nitrogen pressure test gauge has high accuracy and stability, and is suitable for various nitrogen application scenarios, can be used for welding, cutting, laboratory purging
5. USEFUL AND PRACTICAL: Nitrogen pressure gauge test kit is easy to install and operate, and is an essential tool for industrial equipment maintenance and safety management
Specification:
Item Type: Nitrogen Gauge
Material: Brass
Use: Welding, cutting, laboratory blowing
Basic Parameters: High pressure 4000Psi/28000KPa, low pressure 600Psi/4200KPa
Applicable Gases: Nitrogen, argon, helium
Inlet Pressure: 3000Psi
Inlet Thread: CGA580
Outlet Thread: 1/4, 7/16 in metric
Output Pressure: 450Psi
Safety Valve Action Pressure: 500Psi
Rated Flow: 0.3 m⊃3;/m
Operating Temperature: 0-40℃
Structure: Single stage
Working Principle: Positive acting
Hose: Approx. 2m / 6.6ft
How to Use:
The nitrogen pressure reducer can be directly connected to the nitrogen cylinder for use in medical experiments, industrial equipment for stable pressure control, and energy saving emissions reduction. This nitrogen pressure reducer features an export pressure gauge range of 600psi and a maximum output pressure of up to 450psi, suitable for foreign standard nitrogen cylinders.
The lightweight valve body structure of the nitrogen pressure reducer uses the opening and closing of the control valve body opening and closing parts to adjust the flow of the medium, reducing the pressure of the medium. The feature of the nitrogen pressure reducer is to maintain the outlet pressure within a certain range while the inlet pressure is constantly changing.
The internal structure of the nitrogen pressure reducer is a piston structure with a high outlet output pressure of up to 40kg, which basically meets the needs of most customers. The valve body of the nitrogen pressure reducer is made of excellent brass, with an imported high density filter to reject impurities and ensure nitrogen purity.
The spring adjustment of the nitrogen pressure reducer stabilize the outlet pressure, and there is a safety valve at the bottom for reliable overpressure jump protection, ensuring stability and safety.
Package List:
1 x Gas Meter
1 x 2m Gas Pipe
1 x Wrench
