Electric Bicycle Foldable FAFREES 20" 750W Motor Top Speed 45Km/h 48V 30AH Max Range 200Km F20 X-Max

Ayzeze: Safely charging your e-bike or e-scooter

• Don’t leave your battery unattended while charging, when you're out or while you're asleep

• Don’t cover chargers or battery packs when charging

• Don’t overload sockets or use unsuitable extension chords

• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C

• Don’t charge batteries next to combustible materials or hazardous substances

• Always unplug your charger once you have finished charging

• Always make sure to only use the proper proprietary charger

• Always ask a professional when converting your e-bike or e-scooter

• Always check your battery (and charger) for visible damage

-----

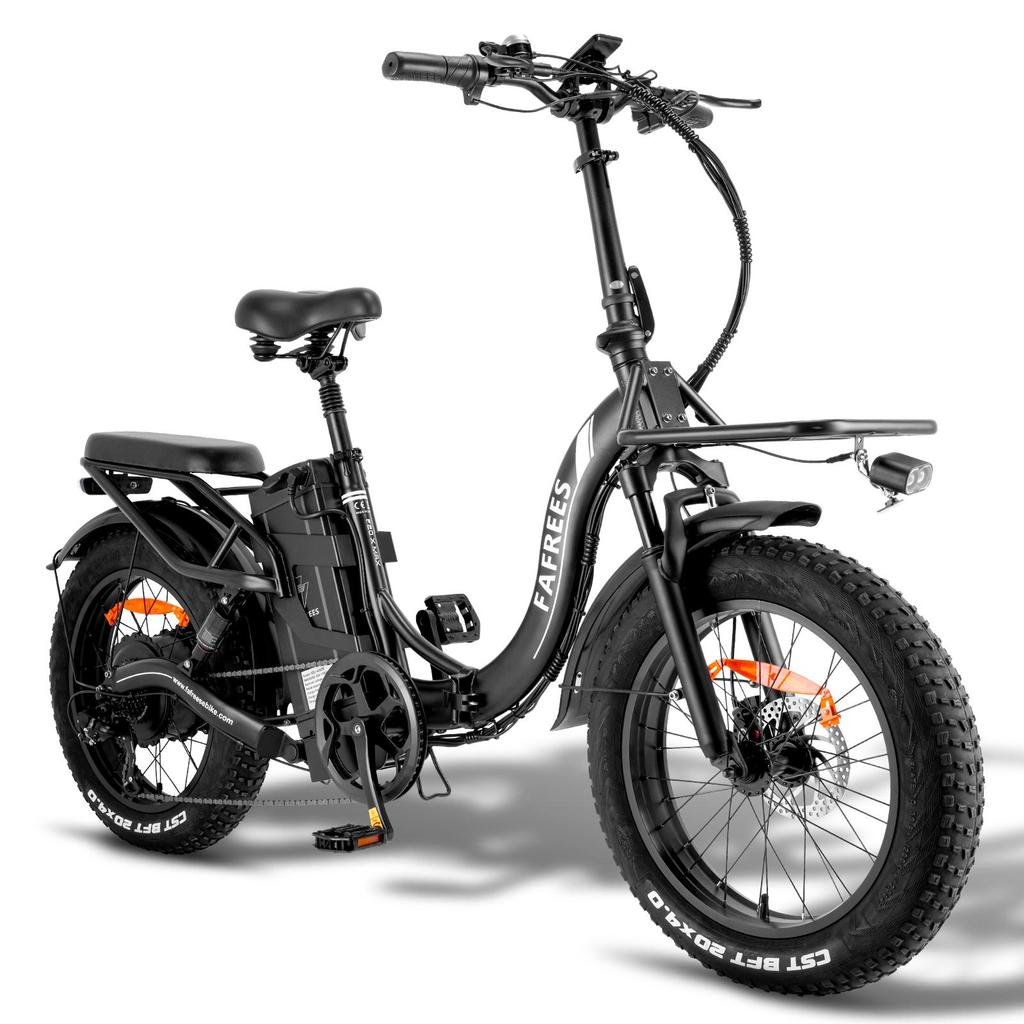

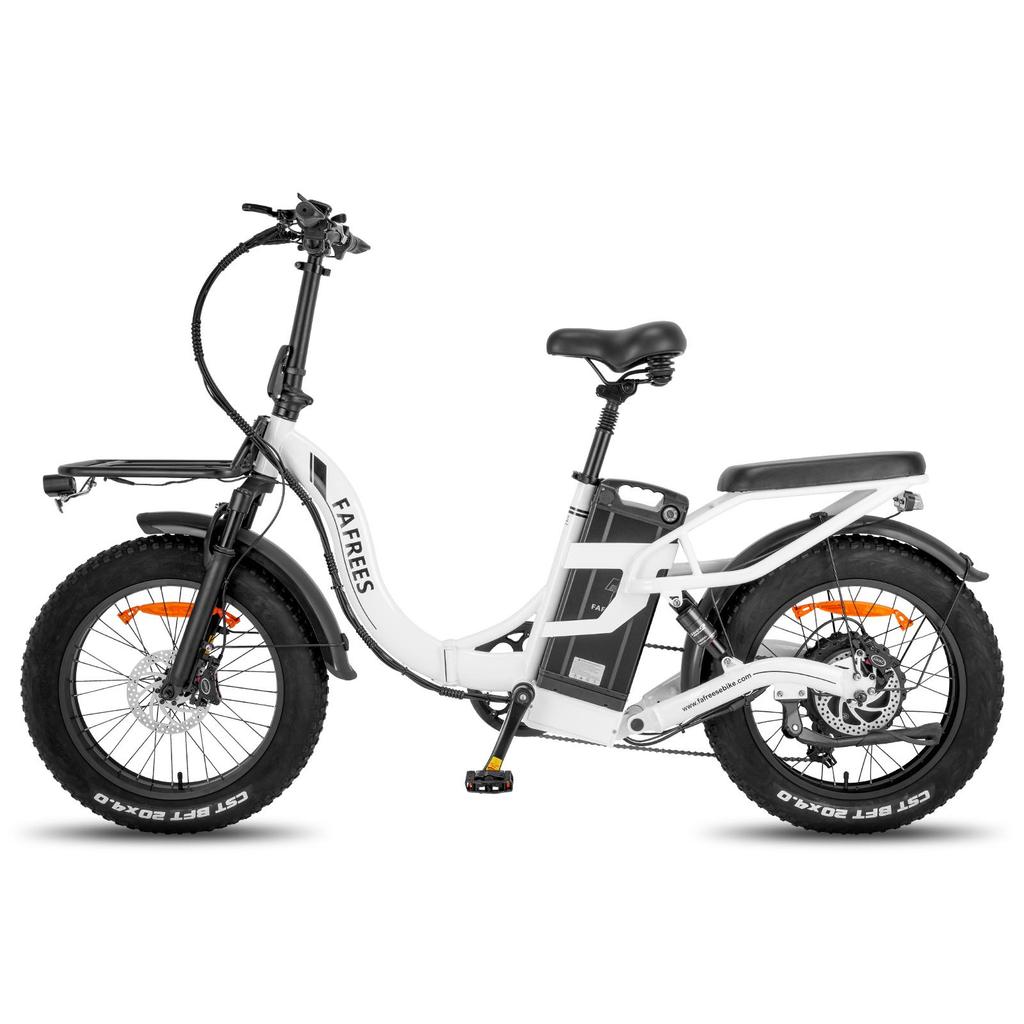

FAFREES F20 X-Max Foldable Electric Bike

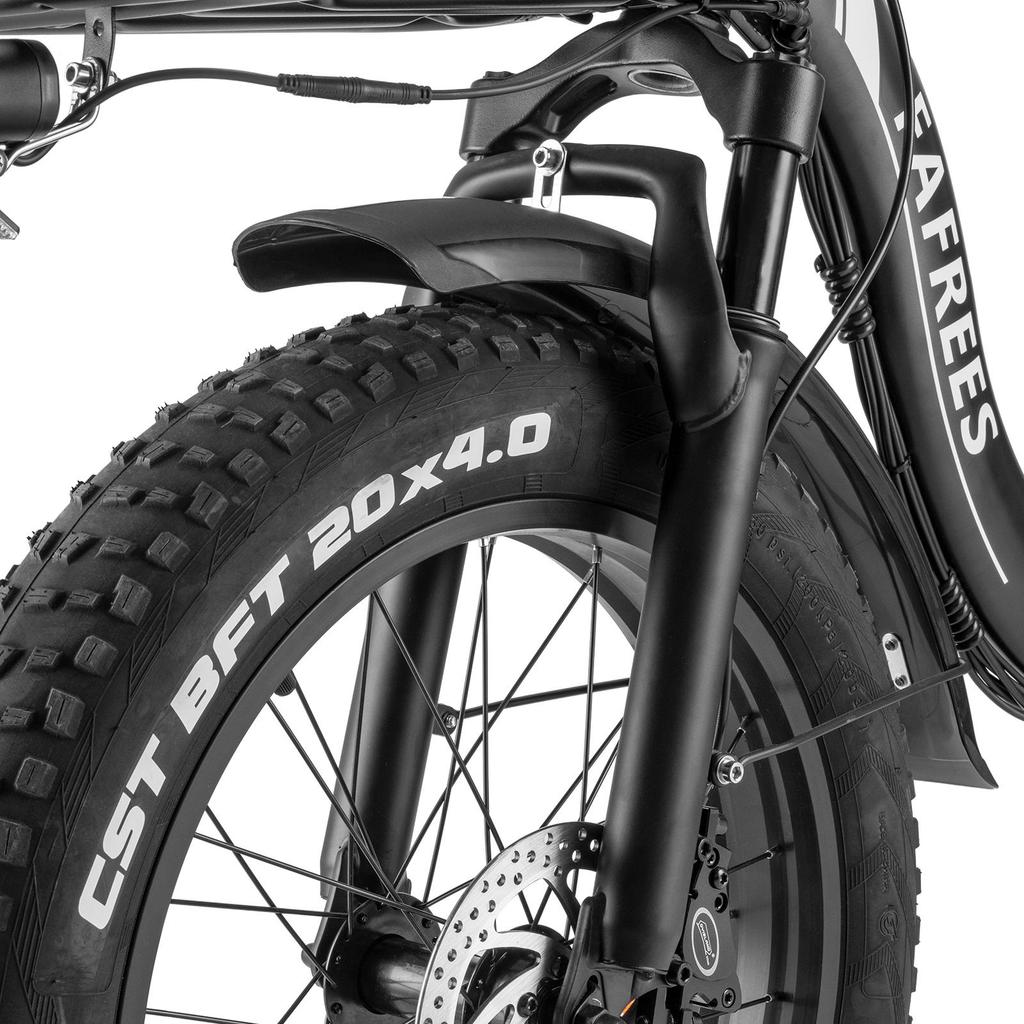

[🛞 20"×4.0" Wide Tires] Equipped with ultra-wide 4.0-inch tires, it offers both all-terrain versatility and stability, making it easy to navigate challenging terrain.

[⚡️ 750W Powerful Motor] Equipped with a 750W high-performance motor, it provides ample power output, making it easy to conquer steep slopes and complex terrain.

[🚴 Dual-Mode Speed: 25 km/h (Compliant) / 45 km/h (Unrestricted)] The default maximum speed is 25 km/h (compliant with the new national standard), and can reach 45 km/h after the speed limit is lifted, meeting the needs of various scenarios.

[🔋 48V 30AH Large Battery] Equipped with a 48V 30AH high-performance lithium-ion battery, it provides a solid energy source for an extremely long range.

[🛣️ Pure Electric Range 120-140km | Power-Assisted Range 180-200km] The pure electric range is 120-140km, and the intelligent power-assist mode can reach 180-200km.

[🛡️ Maximum Load 150kg] The reinforced foldable frame structure has a load capacity of up to 150kg, ensuring a safe and stable ride.

[🔄 Quick-Fold System] The innovative quick-fold structure allows for quick storage, making it easily compatible with public transportation and home storage.

Product Specifications:

Brand FAFREES MODEL F20 X-Max Type Folding Fat-tire Ebike Color Black/Grey/White/Red Dimensions Unfolded size 186*126*63CM Folded size 105*45*76CM Adjustable height of handlebar 116-132CM Adjustable height of seat 86-106CM Package size 106*47*78CM Tire size 20*4.0 inch Pedal-ground distance 10CM Recommend rider heights 165-210CM Weight Net Weight 49KG Package weight 55KG Battery weight 7.5KG Load capacity 150KG Material Frame material High-tensile Steel Tire Type Air tire Driving Default maximum speed 25KM/H Adjustable maximum speed 45km/h Max range for assisted mode 180-200km Max range for pure power 120-140km Max climbing Gradability 25° Battery Battery type Lithium-ion Samsung cell 21700 Rated voltage (V) 48V Input voltage (V) 54.6V Battery capacity (AH/Wh) 30Ah/1440Wh Undervoltage protection value (V) 39.6V Overcurrent protection value (A) 30A Motor Motor rated power (W) 750W Motor peak output power (W) 980W Motor location Rear drive Maximum torque (N.m) 65 N.m Charger Input voltage (V) 110-240V Output voltage (V) 54.6V Rated current (A) 3A charging time 9h Damping Fork Type Shock fork Fork travel distance 50mm Type of rear shock Rear shock absorbors & Shock seat tube Rear shock travel distance 15mm Display Display type LCD Display 6km/h walk assist mode Yes Cruise control Yes APP control N/A PAS level 0-3 Transmission Shimano 7s Brake type Hydraulic Disc Brakes Folding parts Folding handlebars, frame, pedals Headlight LED headlight with horn Taillight Tail light with brake light and turn signal Riding mode Human/assisted/pure power Operating temperature -10℃-40℃ Waterproof grade IPX4

Package contains： 1*F20 X-Max ebike 1*Charger 1*Tool kit 1*Owner's manual 1*Gift box (Including 1*Inner tube, 2*Valve caps, 4*Spokes, 2*wheel reflectors, 2*Battery fuses, 2*Brake linings, 1*key chain)"
