Wireless Charger Transmitter Receiver Module Circuit Board QI Standard Fast Charging DIY Wireless Charger Receiver Moudle

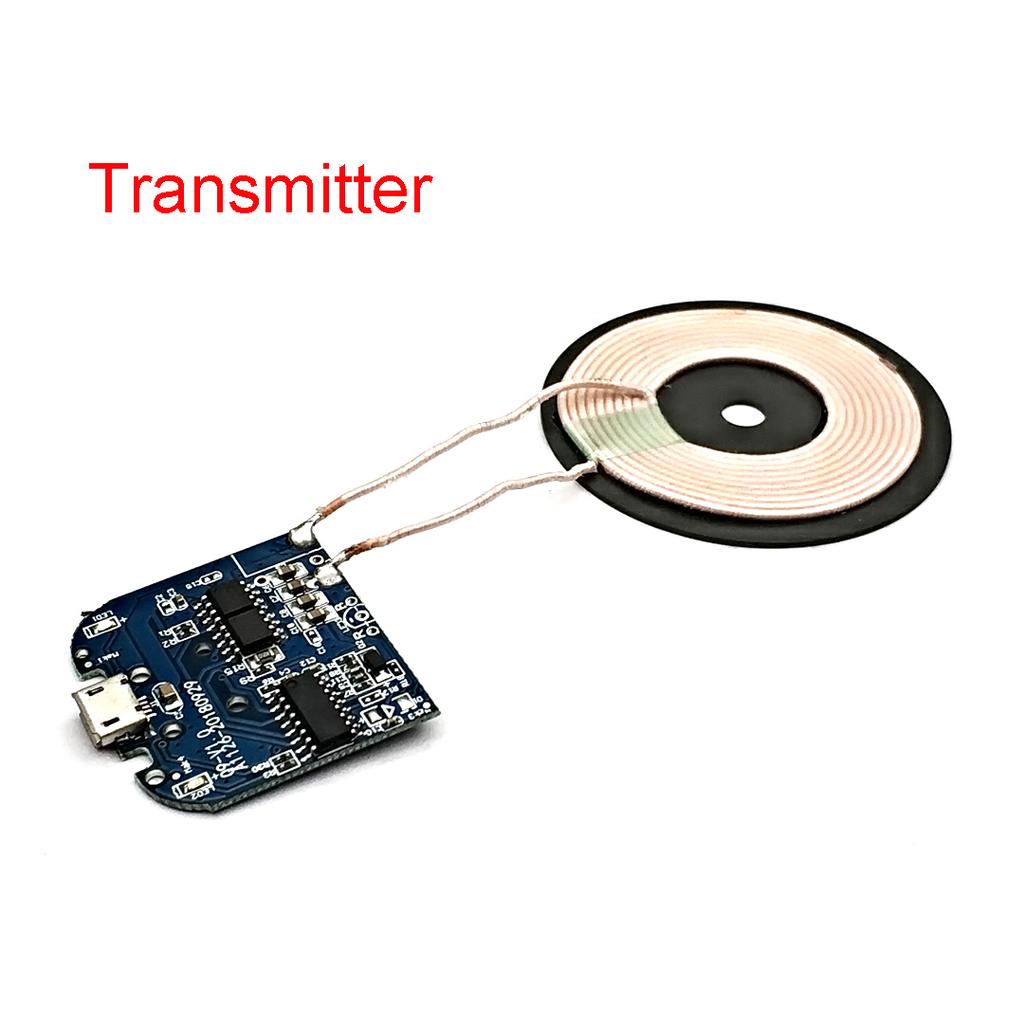

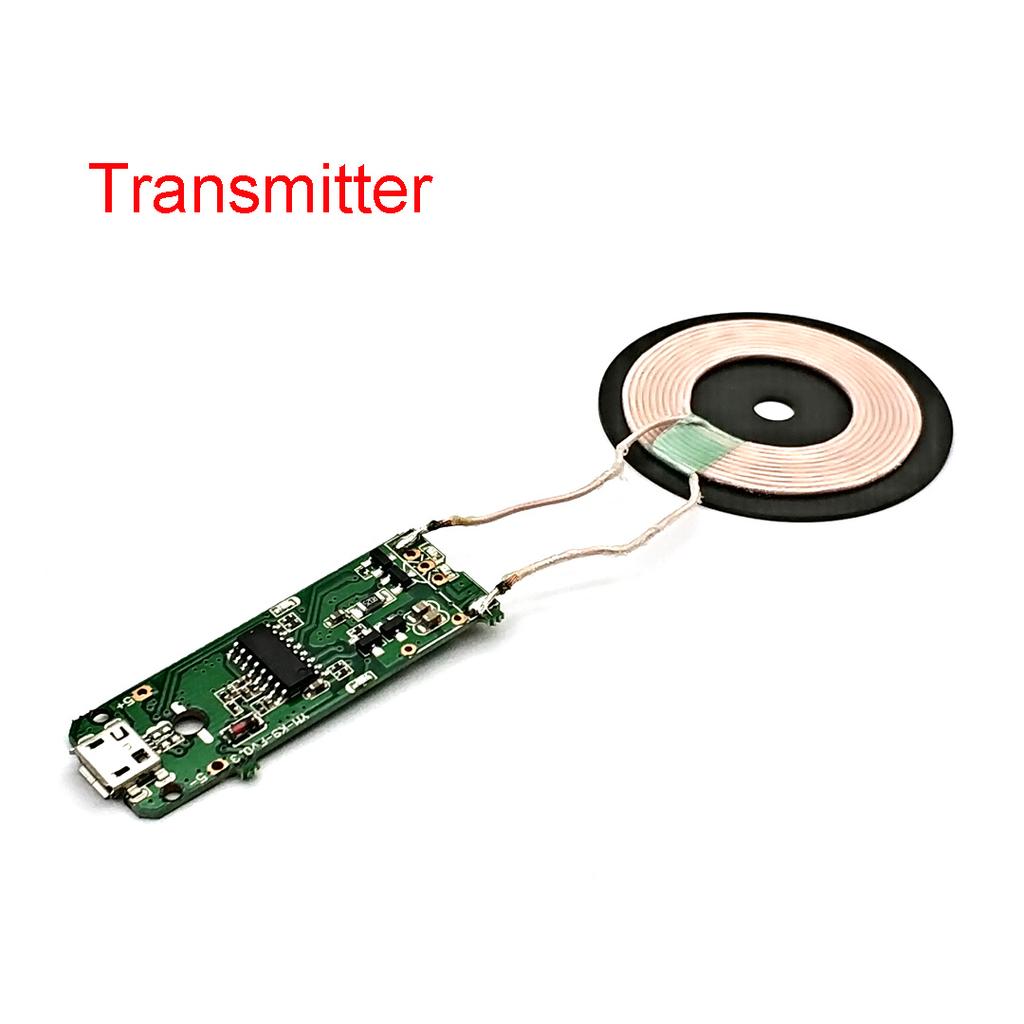

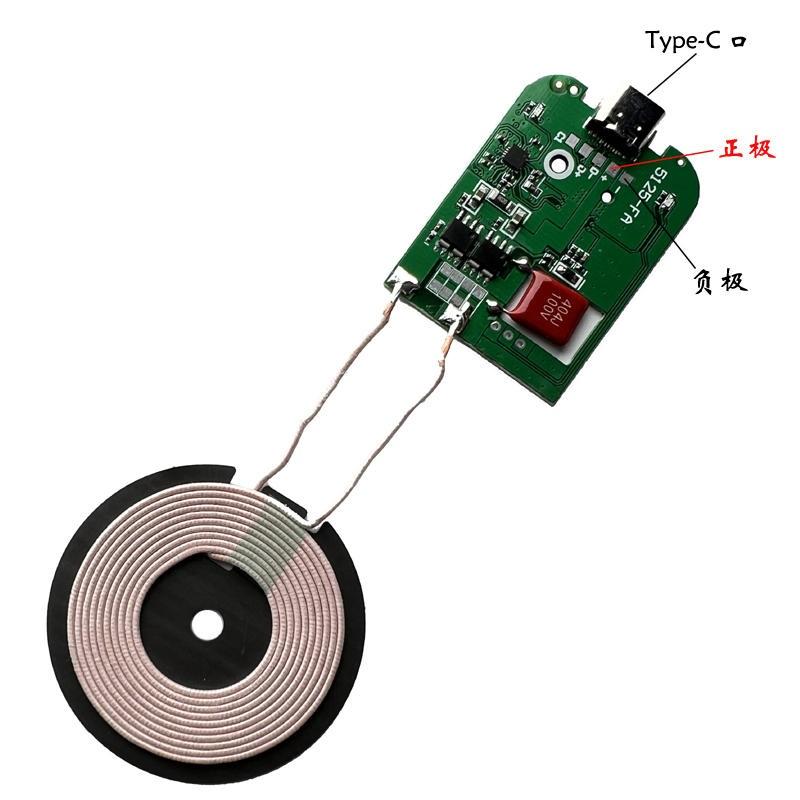

Transmitter 5V1A/ 5W: 100% brand new and high quality Qi wireless charger PCBA circuit board,allows to charge for any Qi-enabled device. Better for DIY, you can give it a case (not too thick) or fix it on your furniture or other devices, but please note the transfer efficient distance is only 5mm. High power, quick-acting charging. Over 75% high-efficient energy conversion. Ultrathin,lightweight,safe and reliable. Specification: Wireless charging standard: Qi standard Input voltage:DC5V Input current:1A Charging voltage:5V Charging current:500-1000mA Charging power:5W Charging distance:5mm Conversion:≥75% Cable Length:25mm How to use: Please confirm that your phone is Qi-compliant. Protective cases that exceed 7 mm thick prevent the charger from working properly. In this case, remove it before charging

note: Wireless charging = transmitter + receiver (both can be charged together) 1, there is a "charger" (ie coil patch): If your phone has a built-in "receiver", or you have already purchased a "receiver" in another home, then you only need to buy a "transmitter" Charging. 2, there is a "generator" (ie the base): If you have already purchased the "transmitter", then you can just recharge by purchasing the "receiver".

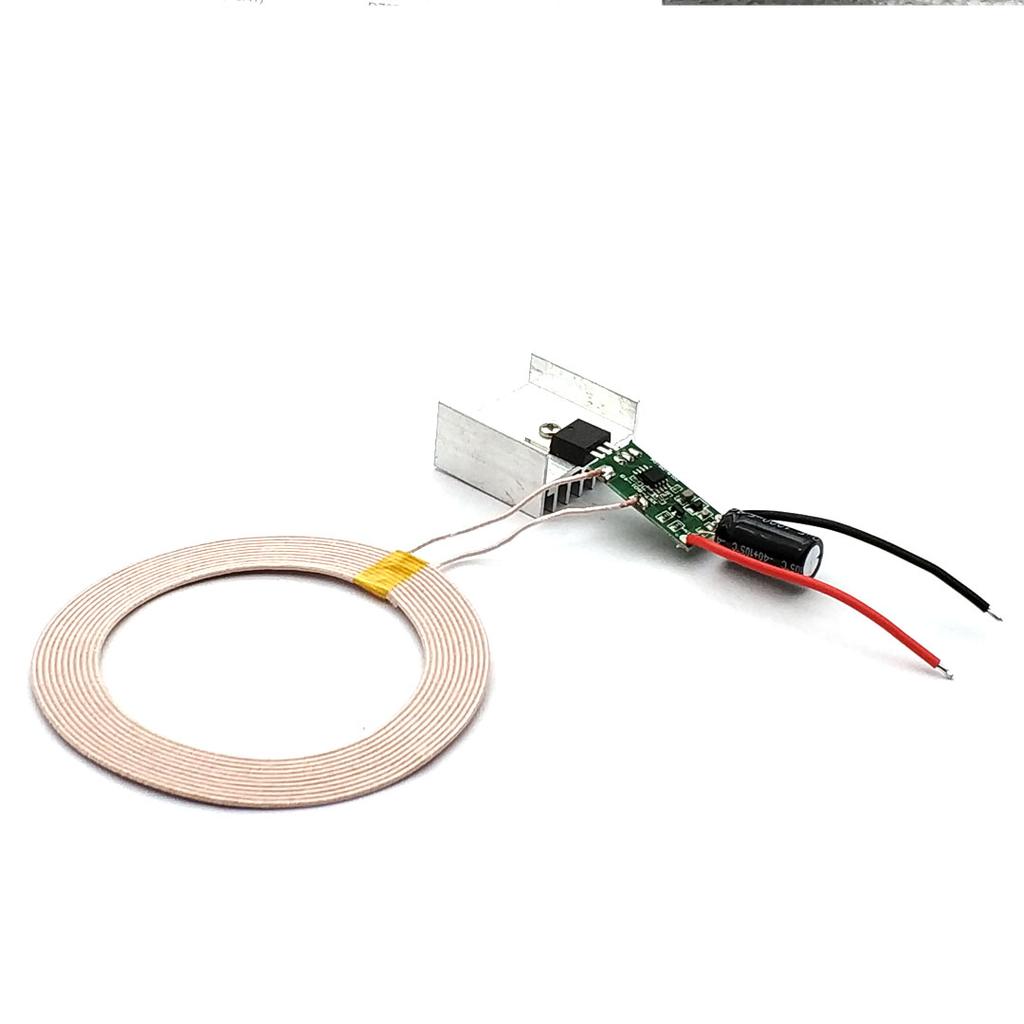

Transmit 12V3A / Receive 12V3A: This module is designed using XKT-801 chip, the circuit is simple and practical The main technical parameters: Transmitting voltage adopts wide voltage design: 24V Transmitting module size: 17 * 28mm Transmitting coil: inner diameter 70mm outer diameter 88mm thickness 1.3mm Receiving module size: 30mm * 36mm * 6mm Receiving coil size: inner diameter 70mm outer diameter 90mm thickness 1.3mm Induction distance: 3mm ~ 20mm Receive output 12V3A when distance 5mm Note: This module cannot be used below 3mm! Try to charge less than 2A for a long time The receiver module will be damaged due to overvoltage!

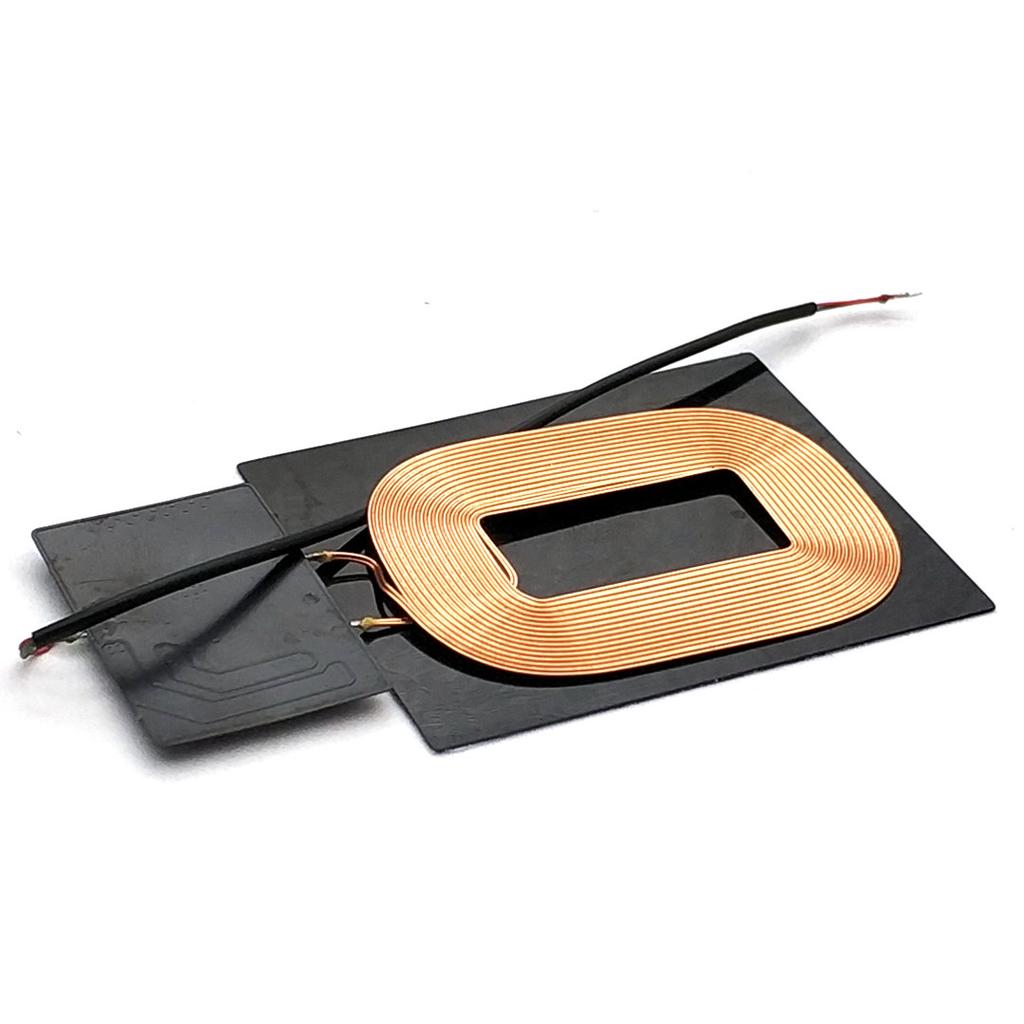

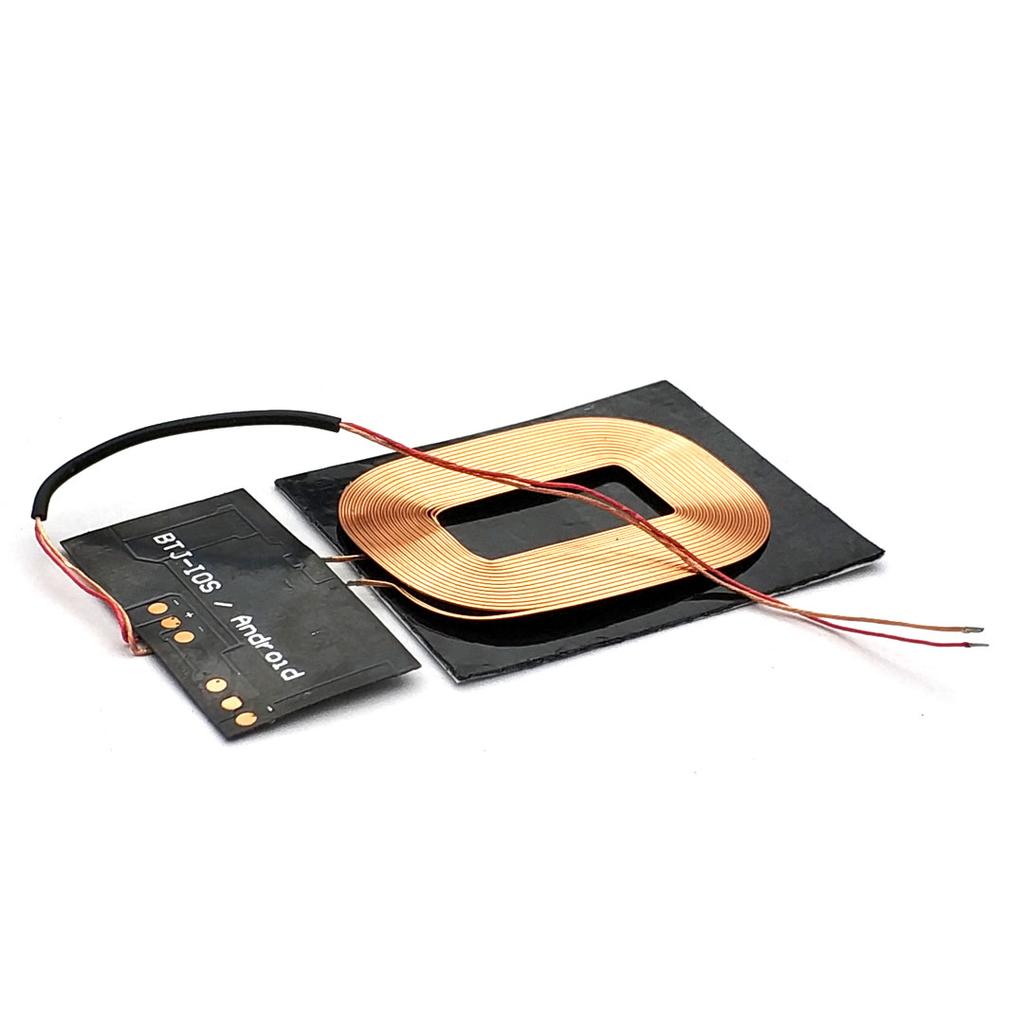

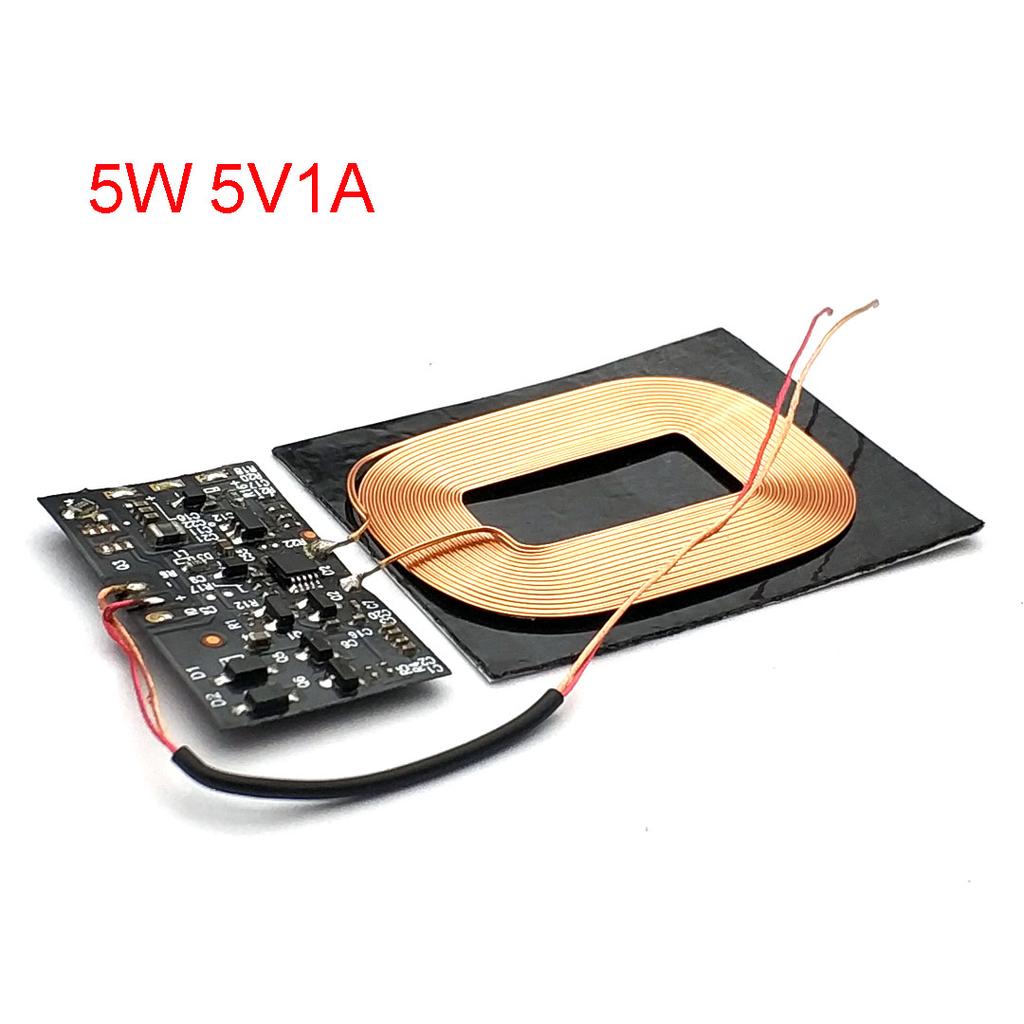

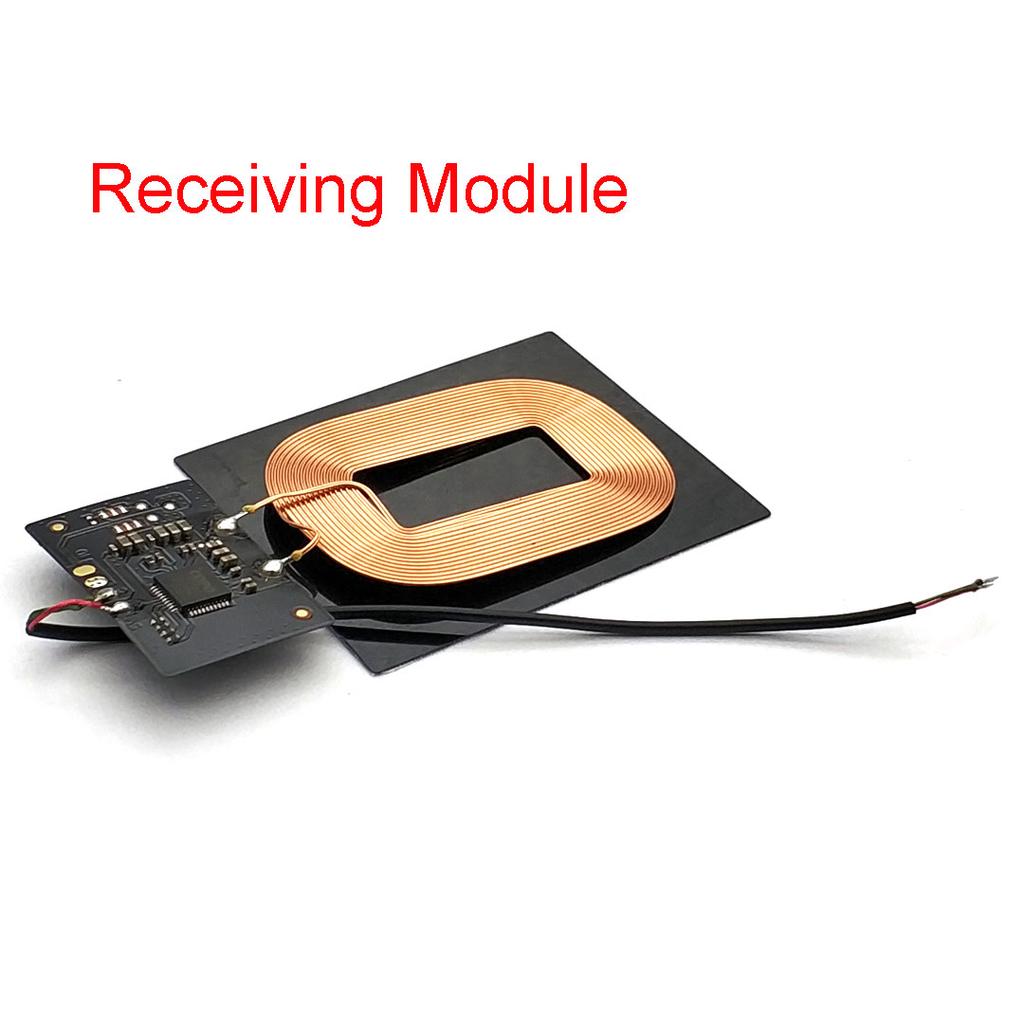

Receiving end Receive 5V1A: 1. Pure copper coil, high permeabillity, low loss, assuring fast charging. 2. Can charge the battery directly. 3. Charging current is around 5V 1A. 4. Can be directly connected to the phone's motherboard, the phone will display wireless charging. 5. Red is positive and gold is negative. The wire can be bent freely. Specification: Material: PCB Product Name: Wireless Charger Receiver Module Input Power: 5V 1A or 9V 0.5A Output: Power up to 5W Charging Efficiency: 75% Transmission distance: 2-8mm Charger Applicable Form: Wireless Charger Executive Standard: Qi Wireless Charging Standard Product Certification: CE/FCC/ROSH Board Size: 1.9 * 3.2cm / 0.7 * 1.3in Copper Coil Size: 4.1 * 2.9cm / 1.6 * 1.4in Cable Length: 5cm / 2.0in Weight: approx. 6g

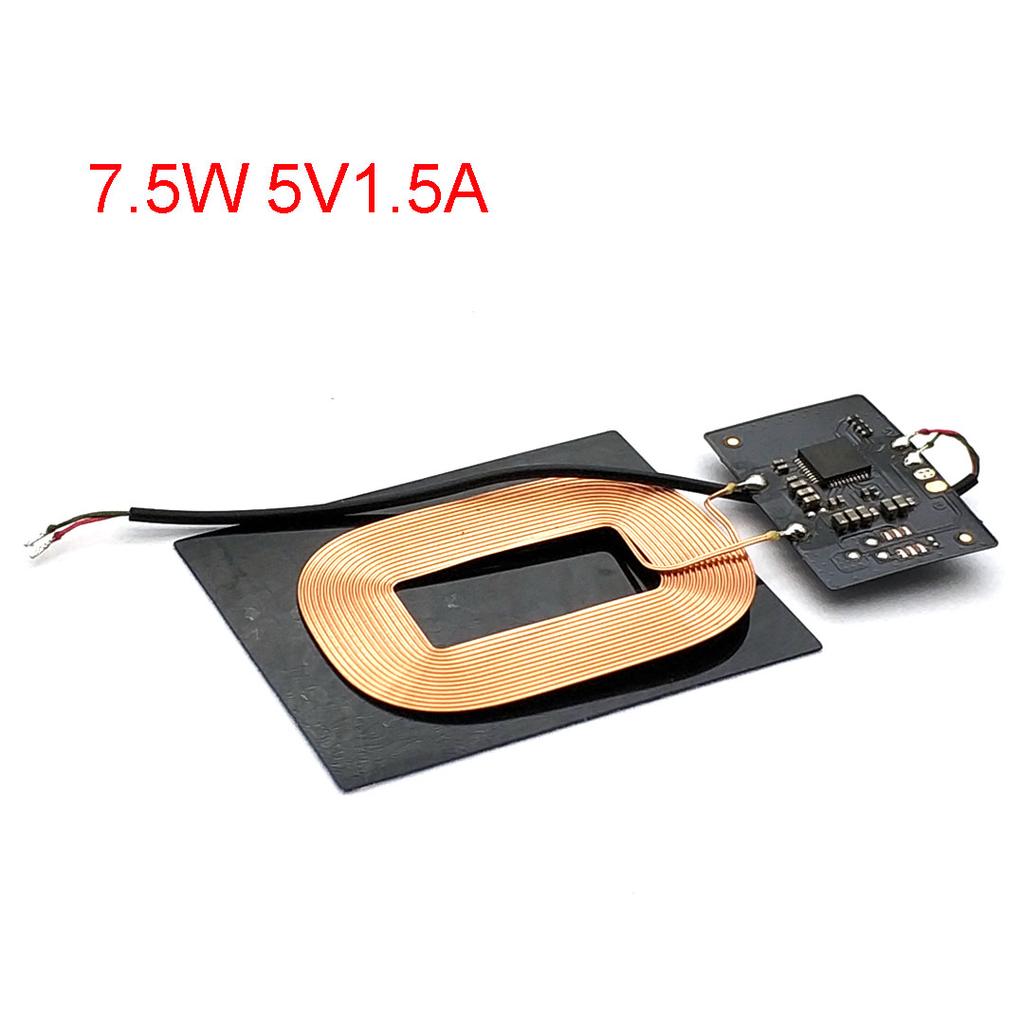

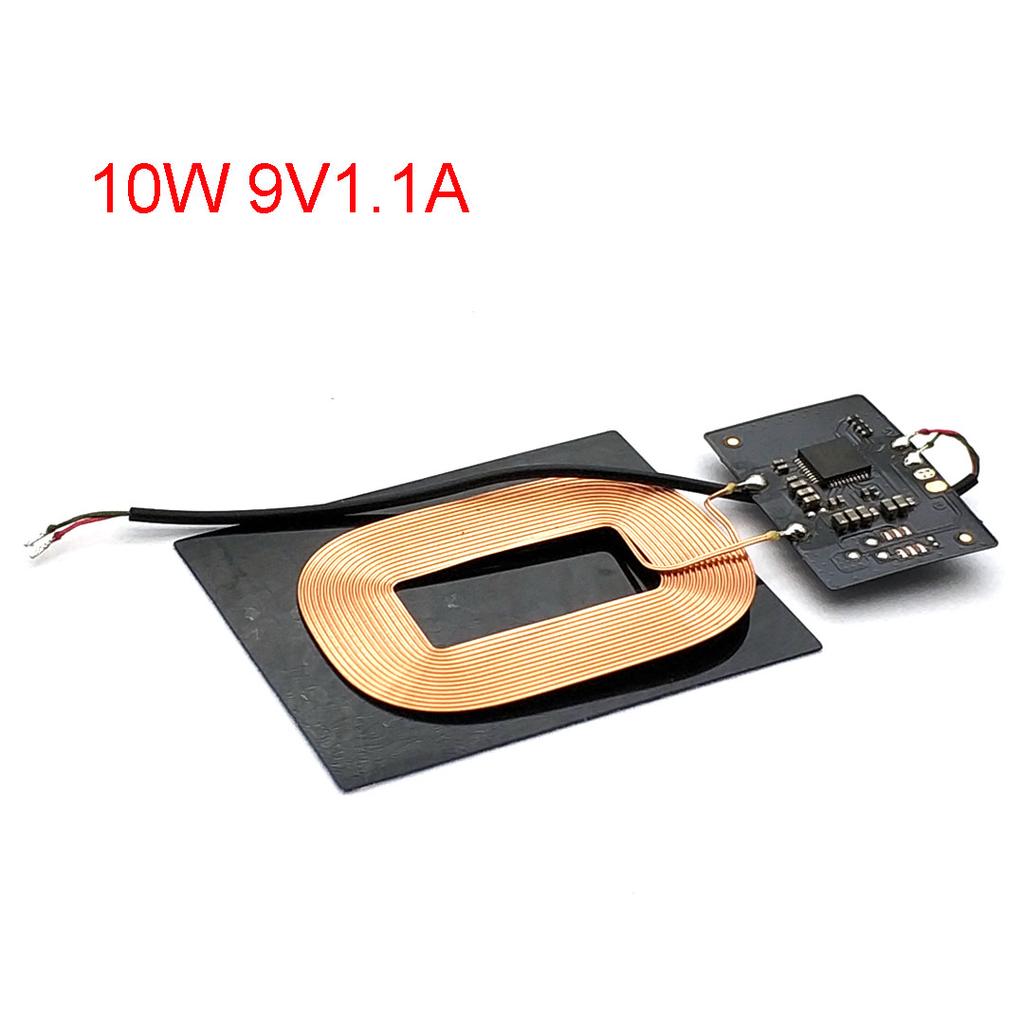

Receive 7.5W 5V1.5A / Receive 10W 9V1.1A: Suitable for electronic product modification wireless charging Compatible with for QI wireless charging standard Output power: 5V1.5A7.5W / 9V1.1A10W Implementation standard: for Qi wireless charging standard Product certification: CE/FCC/ROHS

1. Output: 5V1.5A7.5W / 9V1.1A10W 2. Charging efficiency: 75% 3. Transmission distance: varies according to the transmitter 4. Implementation standard: for Qi wireless charging standard 5. Product certification: CE/FCC/ROSH

Package Included 1 Pcs Wireless Charging/Receiving Module
