Feature:
1. Good Heat Dissipation: The controller shell is made of premium metal with grooved design, with good heat dissipation, designed to protect the internal circuitry from thermal overload. The display panel is made of ABS, waterproof, light and durable, with fine workmanship and good toughness, providing better protection for internal circuit, making it more durable.
2. S810 Panel: The S810 display panel has powerful functions, when you are riding a bike, it will display many useful data on your bike, such as switch buttons, light switches, battery display and other functions, allowing you to notice battery power.
3. Suitable: The 25A motor controller kit is suitable for 750W motor, suitable for DIY electric bike, electric scooter, folding car, etc. It is easy to maintain, greatly enhances the pleasure of riding and is suitable for cyclists who like a challenge.
4. Standard Wiring: These accessories such as tail light, headlight and thumb throttle have standard wiring, no need to buy additional extension cable.

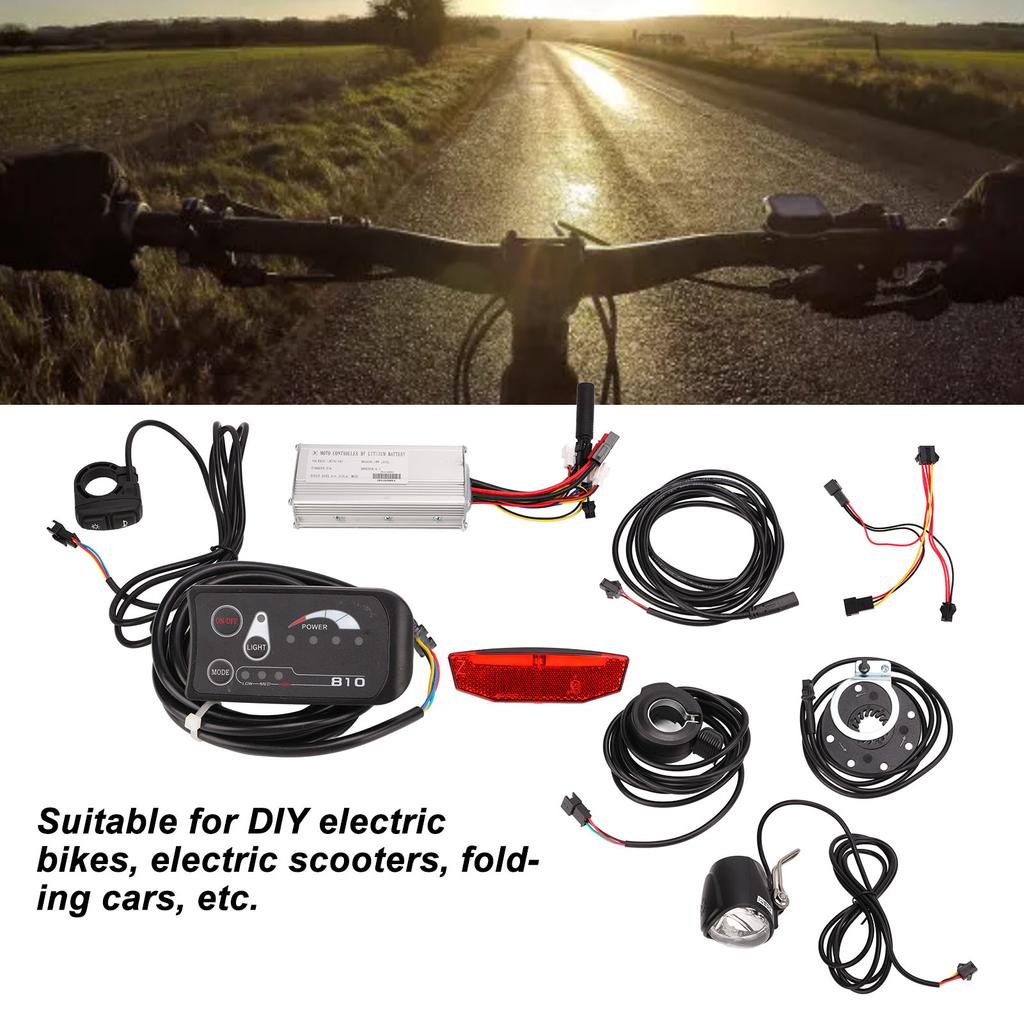

5. Include: The electric bike motor controller kit includes controller, S810 display panel, thumb throttle, power assist sensor wiring, power assist sensor boost sheet, headlight, tail light, horn light button, 4 in 1 connection cable,suitable for your own DIY modification, to meet all needs.
Specification:
Item Type: 25A Motor Controller Kit
Material: ABS, Rubber, Aluminum Alloy, Metal
Total Weight: 882g/31.11oz
Application: Suitable for 750W Motor, Matching Communication Protocol for UART products (cOmmonly Known As No.2 Communication Protocol)
Controller
Size: Approx.120x53x33mm/4.72x2.09x1.30in
Rated Voltage: DC 36V 48V
Current: 25A
Speed Setting: 1.1-4.2V
Supercharger: 1:5
Applicable Motor Power: 750W
Brake: Input Low Level
Controller Line Definition:
1. Black Single Wire: Motor(9pin)
2. Black and Red Single Wire: Battery Power x 2
3. Black, Yellow and Brown Three Pin Wire: PAS(3pin)
4. Black, White and Three Pin Wire: Throttle(3pin)
5. Black, Yellow Two Pin Wire: Brake(2pin) x 2
6. Black and Red Two Pin Wire: Headlight(2pin)
7. Black and Red Two Pin Wire: Rearlight(2pin)
8. Five Pin Multicolor Wire: Display(5pin)
Package List:
1 x Motor Controller
1 x S810 Display Panel(Including Bracket, Wire)
1 x Throttle Dial(Including Wire)
1 x 8C Power Assist Sensor Wiring
1 x 8C Power Assist Sensor Boost Sheet

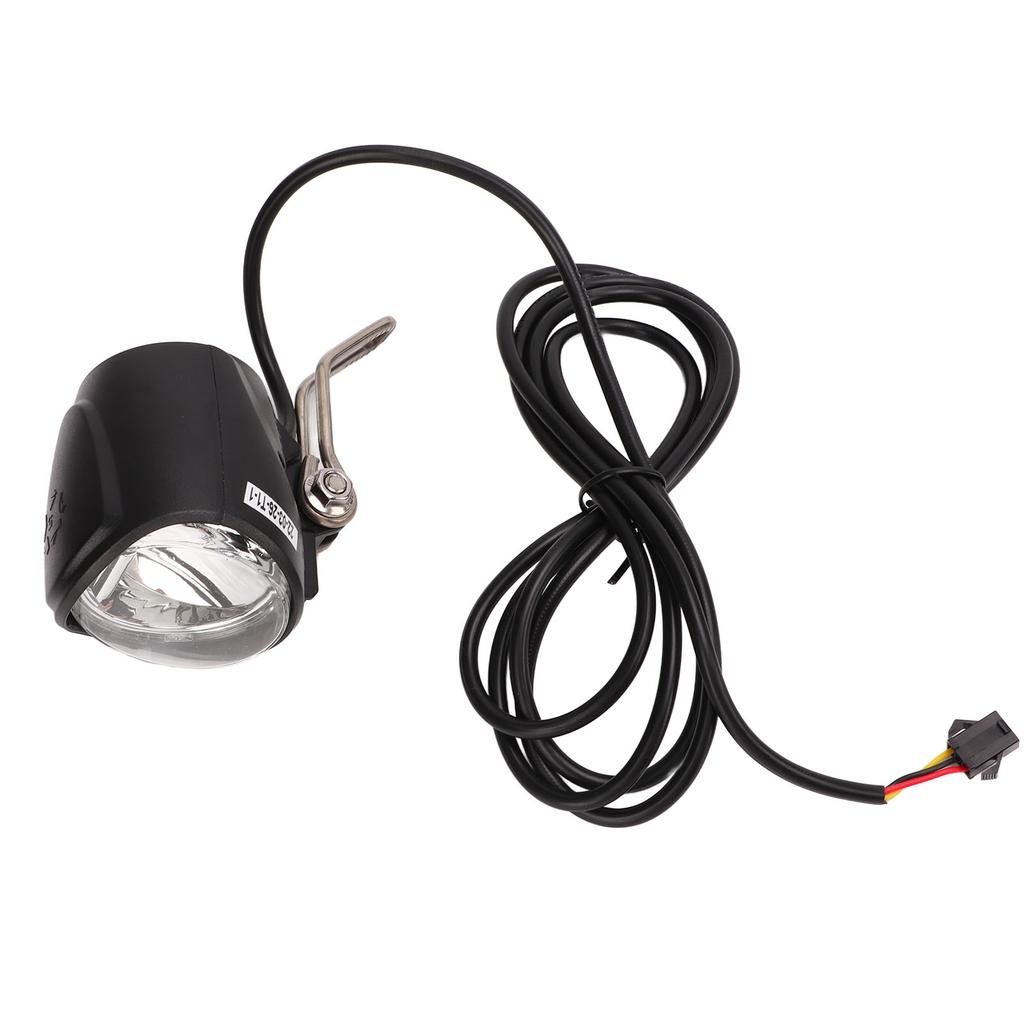

1 x Headlight(Including Wire)

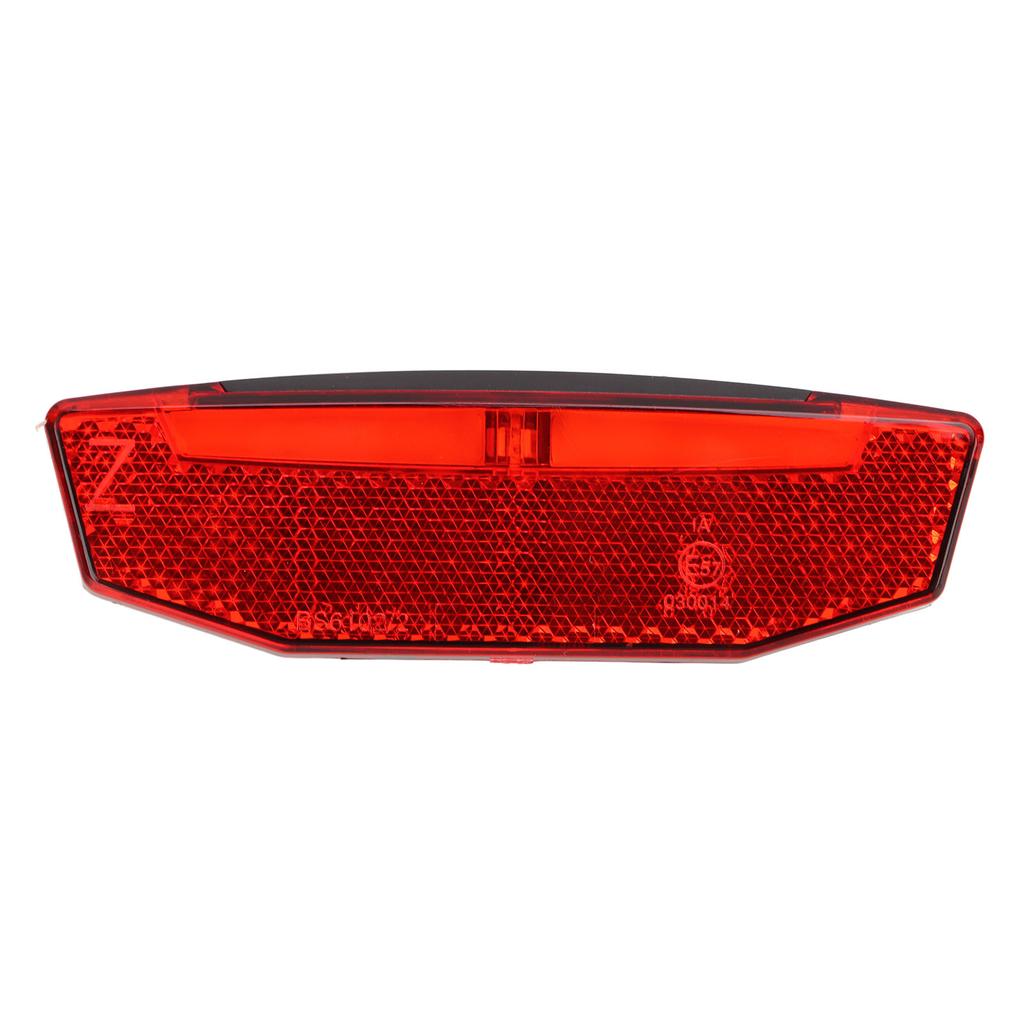

1 x Tail Light
1 x Tail Light Wire

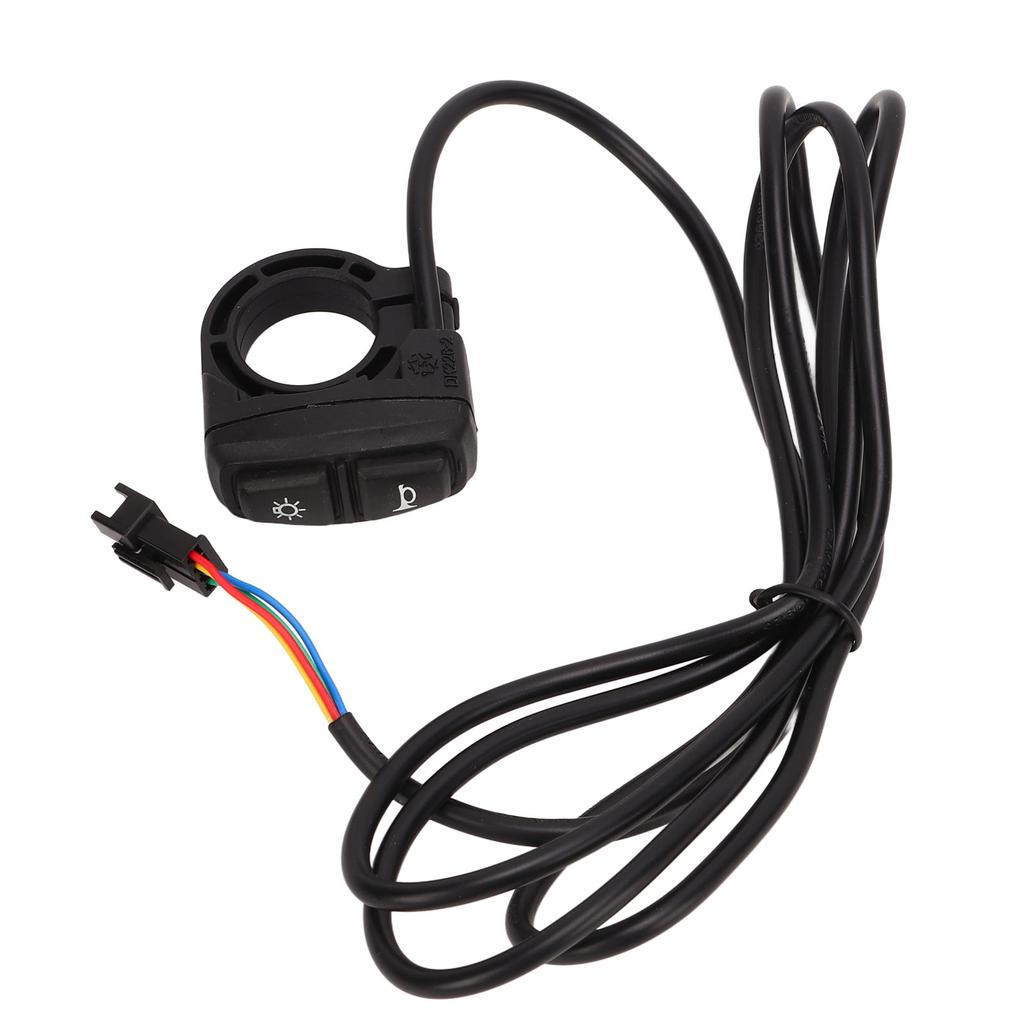

1 x Horn Light Button(Including Wire)
1 x 4 in 1 Cable
2 x Use Manual
Note:
The matching communication protocol is used for UART products (i.e. No. 2 communication protocol)
