Feature:
1. WORKING VOLTAGE CURRENT: Working voltage DC 5 to 12V (5V 6V 9V 12V), working current 5V, forward 4mA, reverse 36mA, 12V, forward 6mA, reverse 44mA.
2. LOADING: Load voltage DC 1 to 48V or AC , load current maximum 2A, maximum forward time 5000 seconds, step 0.1 second, maximum reverse time 5000 seconds, step 0.1 second.
3. CONNECTION: VIN connects to the positive pole of the power supply, GND connects to the negative pole of the power supply, P+ connects to the positive pole of the motor power supply, P‑ connects to the negative pole of the motor power supply, M+ and M‑ connects to both ends of the motor.
4. USAGE: After power on, D1 flashes 3 times, D2 goes out, M+ output is positive, M‑ output is negative, the motor rotates; after time delay T1, D2 conducts, M+ output is negative, M‑ output is positive, the motor reverses.
5. D2 CLOSED: After time delay T2, D2 is closed, M+ output is positive, M‑ output is negative, and the motor rotates forward.
Specification:

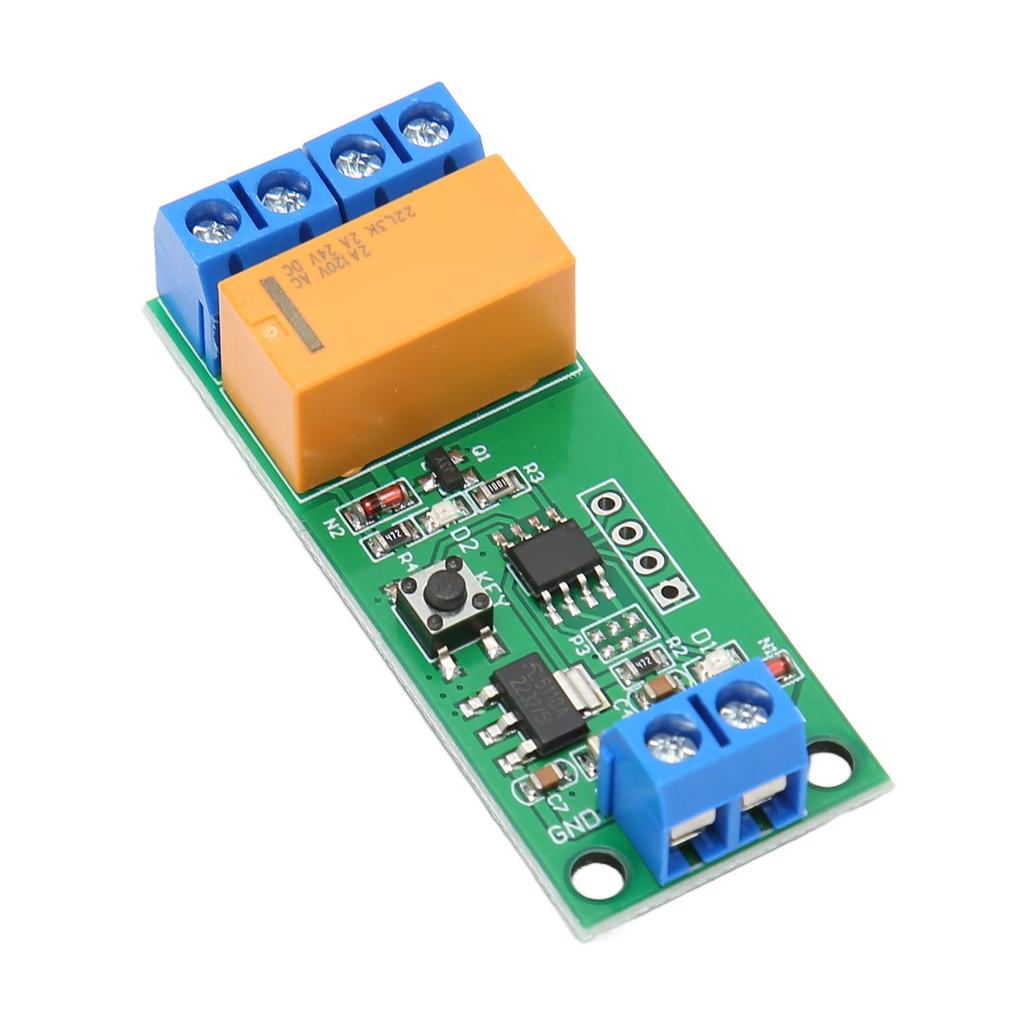

Item Type: Motor Reverse Polarity Relay
Material: PCB
Working Current:
5V, Forward 4ma, Reverse 36ma
12V, Forward 6ma, Reverse 44ma
Load Current: 2A
Forward Time: 5000 Seconds (40,000 seconds by shorting the pad), step 0.1 seconds
Reverse Time: 5000 Seconds (40,000 seconds by shorting pads), step 0.1 second.
Package List:
1 x
Motor Reverse Polarity Relay
