Feature:
1. Composed of professional PCB materials, stable performance and long service life.
2. Increase the power supply anti?reverse protection to reduce the risks of work errors and improve work efficiency.
3. With three?digit display, three?button adjustment is convenient and easy to use.
4. The module with small size, easy to carry and store, convenient to use and with good performance.
5. Great workmanship, with strict quality control and quality assurance, high safety factor, can be used with peace of mind.
Specification:

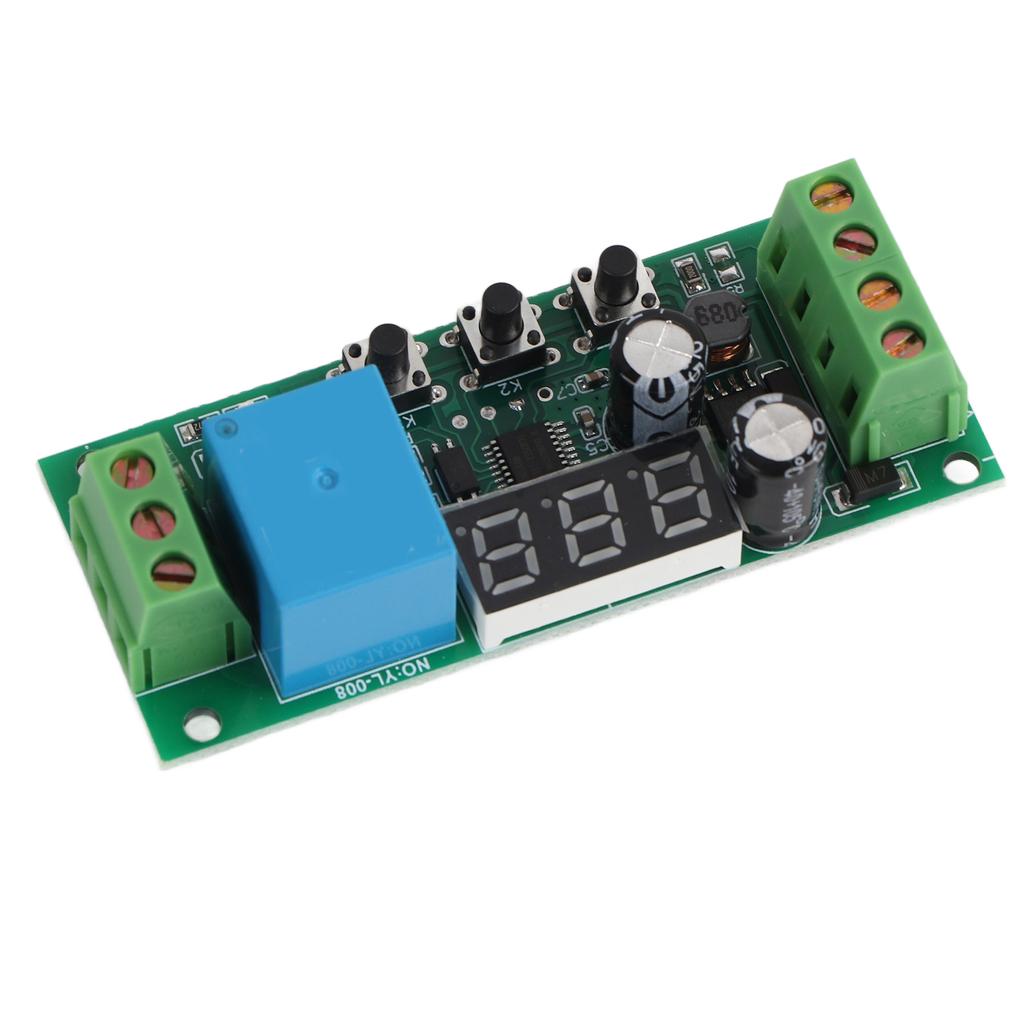

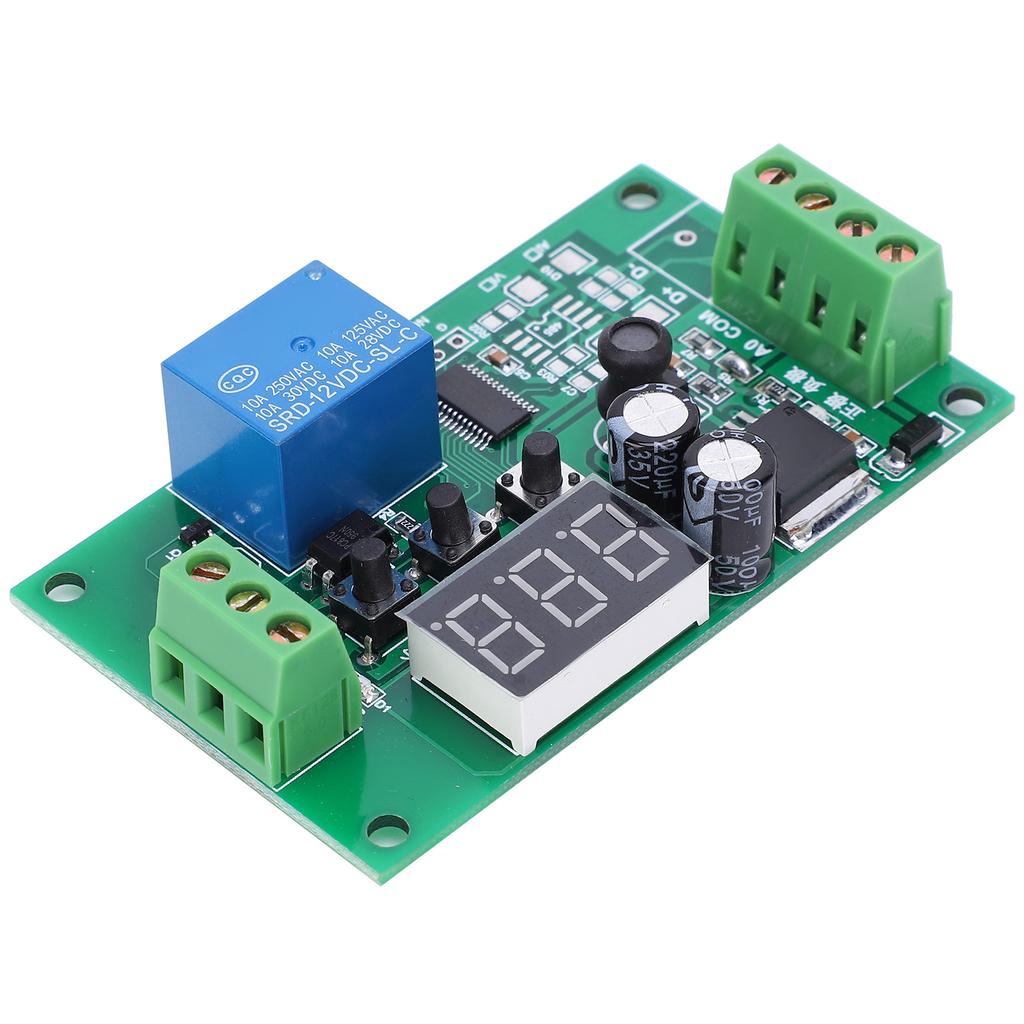

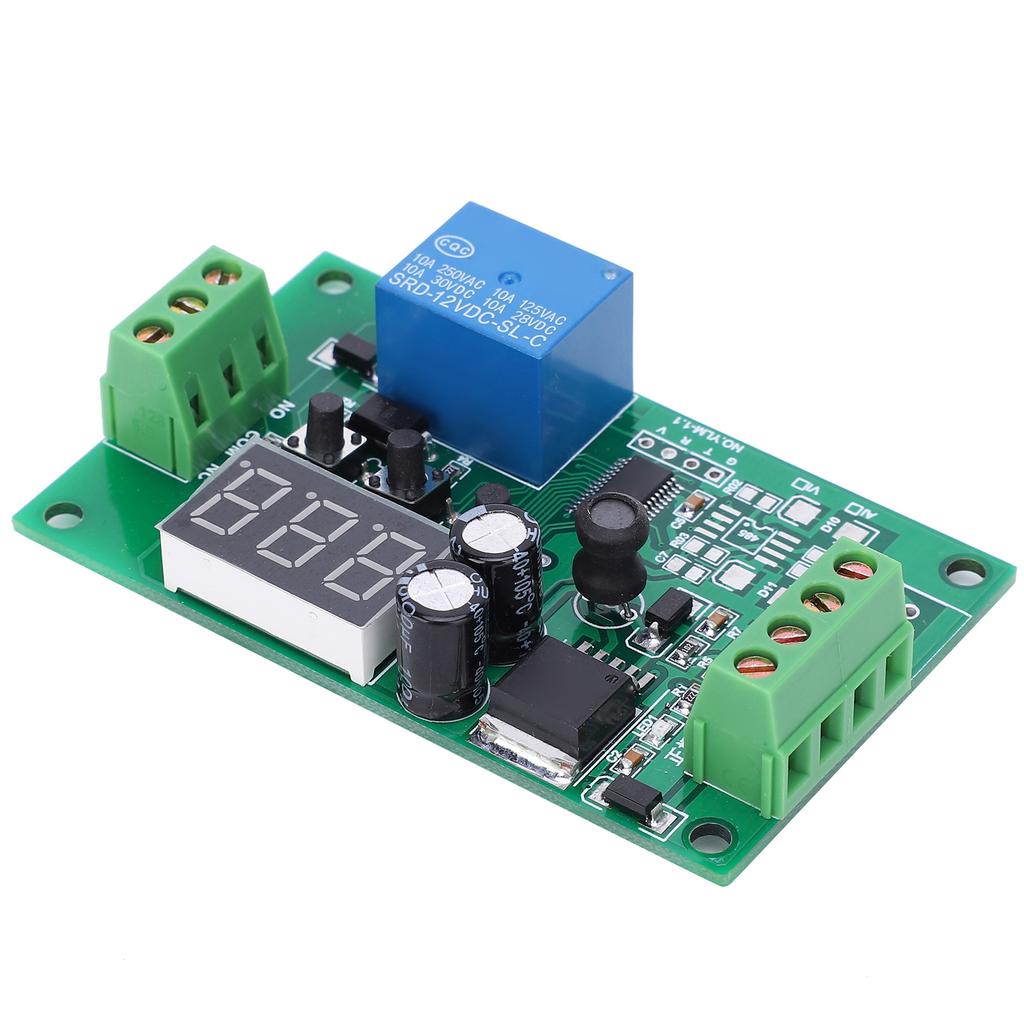

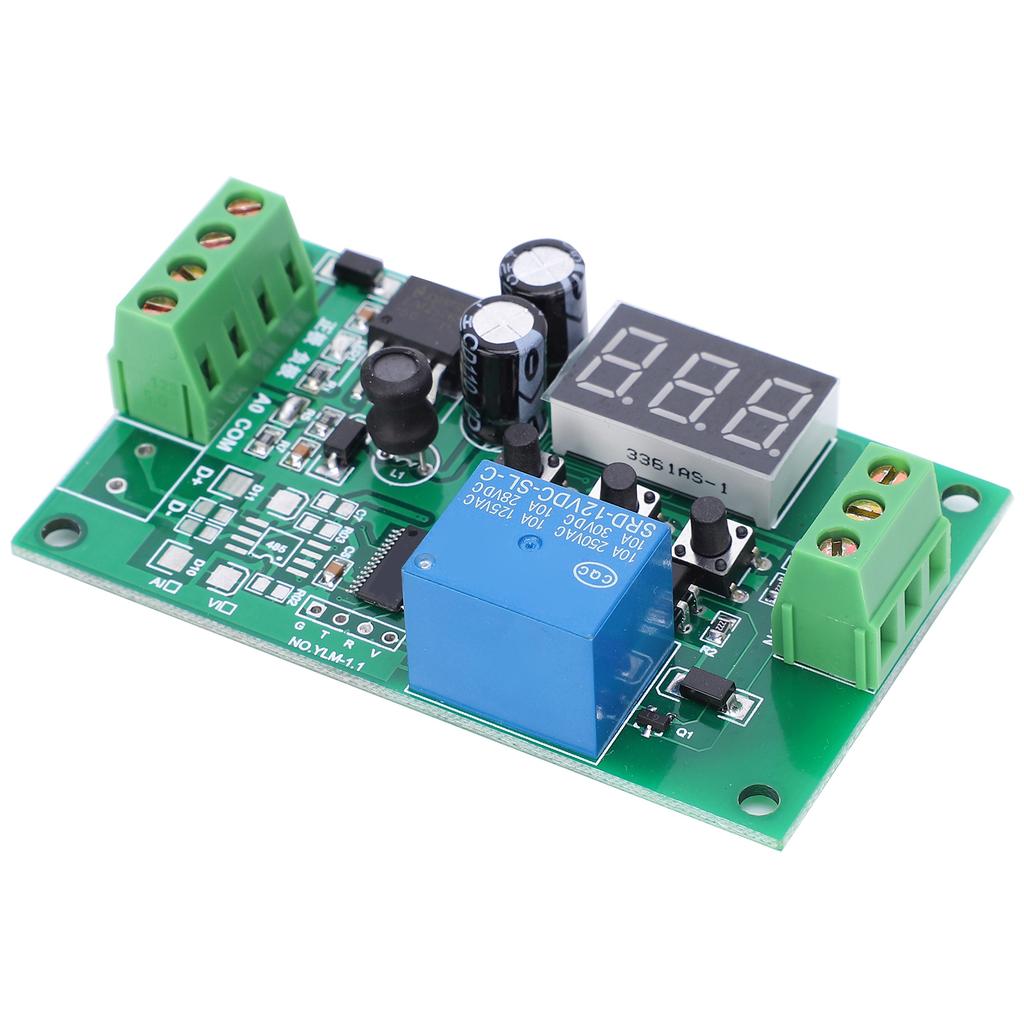

Item Type: Current Detection Sensor Module Material: PCB
Working Current: Standby: 12mA, Working: 56mA
Working Voltage: DC12V
Digital Display Life: more than 50,000 hours
Relay Life: less than 100,000 times
Digital Tube: 3 in 1
Working Temperature: 20 celsius ~75 celsius
Measuring Range: 025mA
Detection Signal: 420ma
Product Features:
420ma Current Detection: After the module is powered on, the PX is initially displayed and the currently set mode is displayed. At this time, the mode can be adjusted by pressing the "+" and "" buttons. It will enter the realtime display of the measured current after 4s. Three buttons to set the upper and lower limits and function mode selection

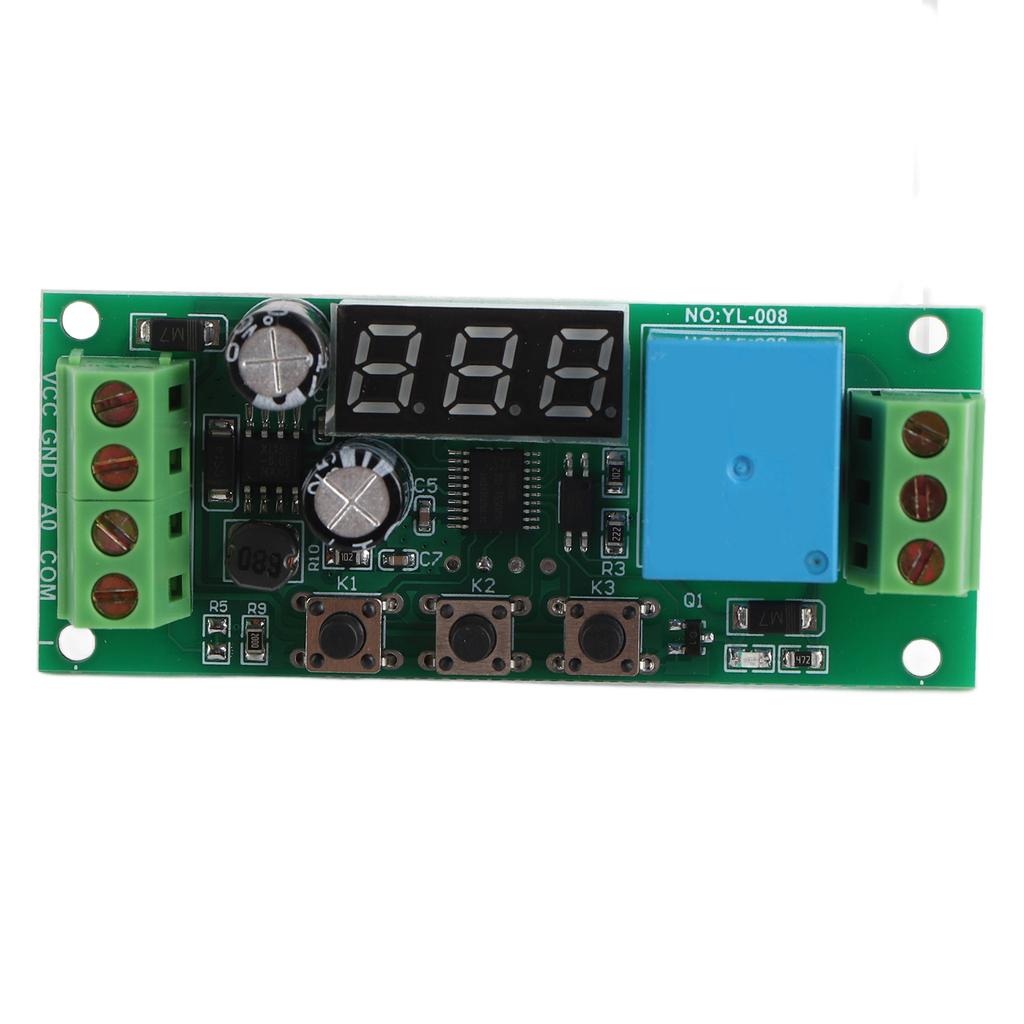

Interface Description:
Input
Positive Pole: Connect to the positive pole of the power supply
Negative Pole: Connect to the negative pole of the power supply
AO: 420ma signal input
COM: It is connected to the negative pole of the power supply
Output
NO: NO end
COM: Public
NC: NC end
Several Modes Can be Set as Follows: (Long press "" for 3s to enter the adjustment mode)
P1: Suction exceeds the set value, but is disconnected below the set value; the measured value exceeds the lower limit value and the relay suctions, and disconnects below the lower limit value.
P2: Disconnect when the value exceeds the set value, but is lower than the suction; when the measured value exceeds the lower limit, the relay is disconnected, and the suction is lower than the lower limit.
P3: Suction in the interval and disconnected outside the interval; the measured value is between the upper limit and the lower limit and the relay sucks, otherwise it is disconnected
P4: Disconnected in the interval, sucked outside the interval; the relay is disconnected between the upper limit and lower limit of the measured value, otherwise sucked
P5: Disconnect below the lower limit, and absorb above the upper limit; when the measured value exceeds the lower limit, the relay will disconnect, and the relay will absorb above the upper limit.
P6: Suction is lower than the lower limit, and it is disconnected above the upper limit; the measured value exceeds the lower limit and the relay is suctioned, and the relay is disconnected above the upper limit.
Setting Instructions (for The Convenience Of Description, Use K1 For The setting key, K2 for the + key, and K3 for thekey):
Key Description: "K1 shiftadjust; K2+; K3mode selection
Press the K1 key, the first digit flashes, adjust the lower limit of hundreds, press K2, K3 to adjust 0~1 change
Press the K1 button, the second digit will flash, adjust the tens digit of the lower limit, press K2, K3 to adjust 09 changes
Press K1 key, the third lower third digit flashes, adjust the lower limit one digit, press K2, K3 to adjust 09 change
Press the K1 key, the 4th, lower, and fourth digits will flash, adjust the upper limit of hundreds, press K2, K3 to adjust 0~1 changes
Press K1 key, the 5th bottom fifth digit flashes, adjust the upper limit ten digits, press K2, K3 to adjust 09 changes
Press K1 key, the 6th, lower and sixth digits will flash, adjust the upper limit one digit, press K2, K3 to adjust 09 changes
Press the K1 key for the 7th time, the digital tube is not flashing, it displays the measured current value.
Package List:
1 x Current Detection Sensor Module
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. Composed of professional PCB materials, stable performance and long service life.
