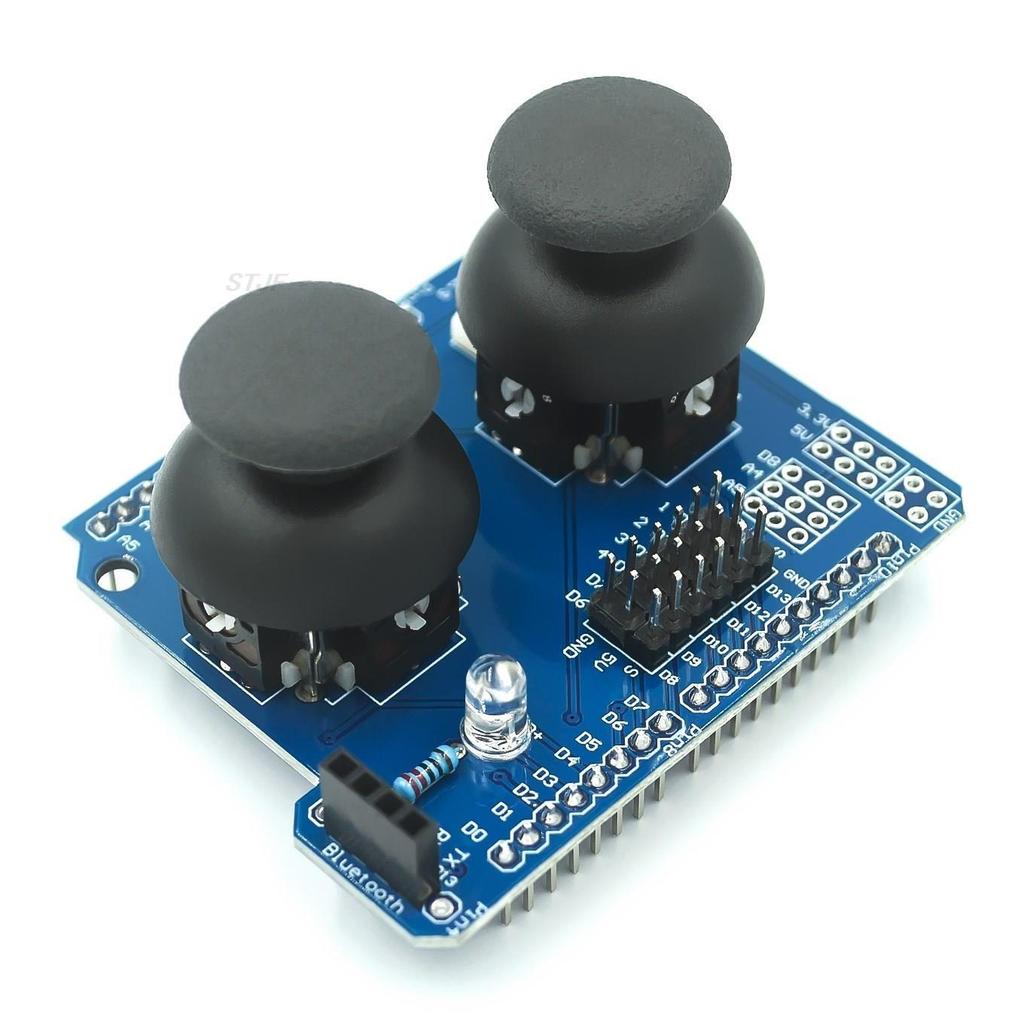

Electronic Building Blocks Dual PS2 Game Joystick Button Module JoyStick Compatible with For UNO R3

Package : DIY Module

Model Number : PS2 game joystick key module Dissipation Power : ... Supply Voltage : ... Application : Computer Type : Voltage Regulator

Origin : China Condition : New Operating Temperature : -40℃~+80℃ Functions : Electronic Module Range of application : Switch And Sensor For Arduino STM

Electronic building blocks Dual PS2 game joystick button module JoyStick compatible with  R3 Thanks to the selfless sharing of the user Phoenix, the following test code is written for him, suitable for testing a variety of rocker or button code. Does not differentiate the board. IDE board with 1.8.6. If the latest update is not tested)

//This code is provided by phoenix. // Only joysticks and buttons on all interfaces are tested. //Only test the rocker and buttons on all interfaces. void setup(void) { Serial.begin(9600); // Set the serial port communication rate to 9600 baud for ( int i = 0;  i<=13;  i++)// Define the button position { pinMode(i,INPUT_PULLUP); digitalWrite(i, 1); } } void loop(void) { //******************* joystick position judgment, from port to port from 0-13; A1-A5(14-20) for ( int i = 0;  i<=20;  i++)// From ports 0 to 20 { Serial.print(i); Serial.print("="); Serial.print(analogRead(i)); // Read the value of rocker X axis, serial port display Serial.print(";" ); } / / * * * * * * * * * * * * * * * * * * * * * * * * * * * * Button position judgment, from port 0-13,; A1-A5(14-20) int i, someInt, flag = 0; for (i = 0;  i<=20;  i++) // From ports 0 to 20 { if (digitalRead(i) == 0) // Read the status of the button and determine whether to press it { Serial.print("button="); Serial.print(i); Serial.print(";" ); } } Serial.println(""); // End a line delay(100);    // Refresh once 100ms }
