About this item:
1.It is a digital intelligent multi-functional charger which support LiPo/LiIon/LiFe/NiCd/NiMH PB
batteries,high power battery LiHV and smart battery I,II,III.
2.Max charger power 80W,discharger power 5W, max charge current 7A with high charging
efficiency.discharger current 2A
3.Note: AC Power adapter does not included. you need buy seperately.
Features:
-Elegant design,mini pocket type,comes with Marquee led indication.
-Microprocessor controlled Delta-peak sensitivity.
Support Lihv battery which with can end of charger voltage of 4.35v.
-Automatically identify the cells counts of lithium battery section.
-Check lithium battery internal resistance.Let you know when a cell is going bad.
-Support smart battery I,II,III.(need optional smart battery charging cable)
-Maximum Safety: Low Input Voltage setting,Delta-peak sensitivity. Capacity limit, processing
time limit, Temperature Threshold.
-Terminal Voltage Control.User is able to adjust the end charge voltage per cell, and set a
voltage which is kinder to the batteries as his will.
-Individual cell balancing, cell voltage Monitoring
-Data storage and loading (Store up to 20 packs in memory)
-Battery break in and cycling.
-Digital Power
*Work Mode:
-Lipo/Lilo/LiFe/LiHv: balance charge, charge,fast charger, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge, Discharge.
Specification:
Brand: HTRC
MODEL:HT-0094
Input Voltage:DC 11-18V
Screen: 2x16 LED Display.
Charge power:80W
Discharge power:5W
Charge current range:0.1-7A
Discharge current range:0.1-2A
Lilon/LiPo/LiFe/LiHV cell count :1-6cells
NiCd/NiMH battery cell count:1-15cells
PB Battery voltage:2-20V
Smart battery:I/II/III
Current drain for balancing: 500mA/cell
Dimension: 10.2*8.4*3cm
Net Weight:220g
Gross weight:0.3kg
Package size:14x13x5cm
Data Transmission : No
Package : Yes
Use : Standard Battery
Model Number : b6 mini v2
Display screen : Yes
Intelligent Charge : Yes
Quick charge : Yes
Type : Electric

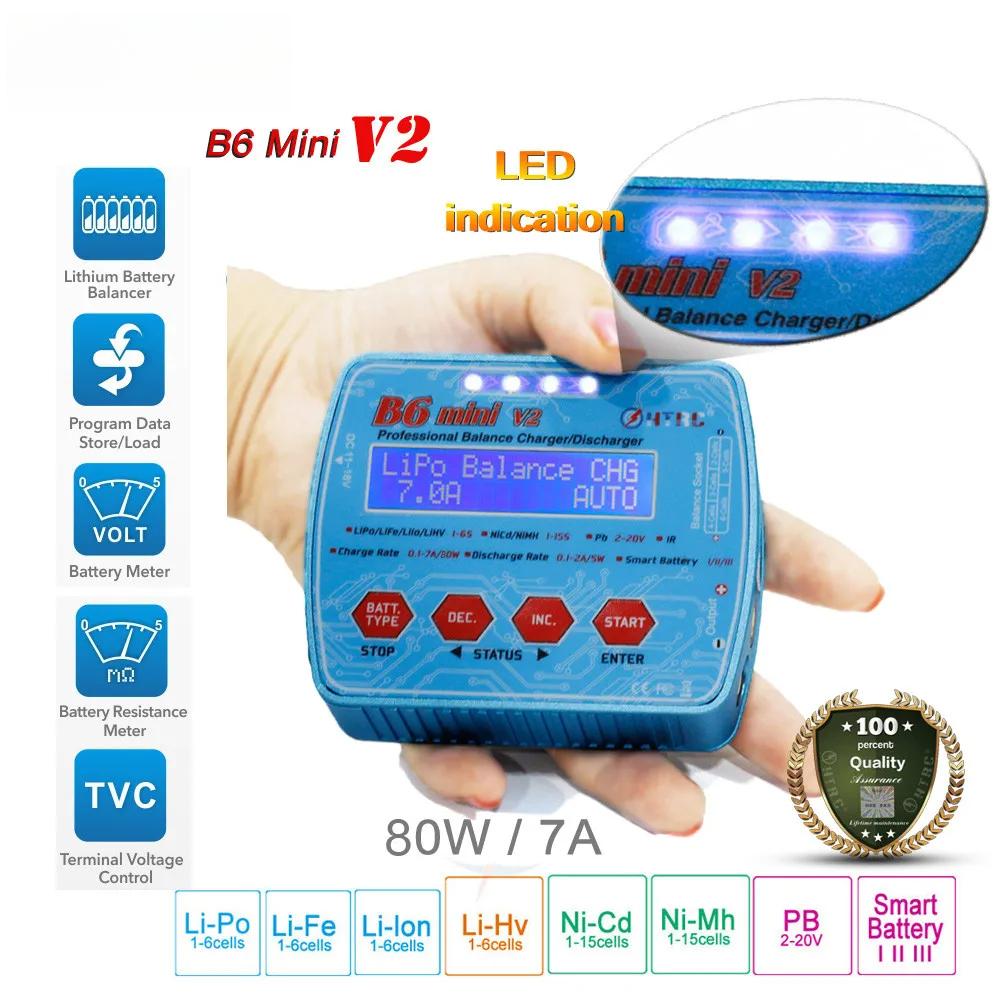

Name : B6 Mini V2 RC Balance Charger Discharger
Input Voltage : DC 11-18V
Screen : 2x16 LED Display
Charge power : 80W
Discharge power : 5W
Charge current range : 0.1-7A
Discharge current range : 0.1-2A
Lilon/LiPo/LiFe/LiHV cell count : 1-6cells
PB Battery voltage : 2-20V
Package list:
1 x HTRC B6 Mini V2
1 x DC Cord
1 x Charge cable Banana Plug to T-plug
