Feature:
1. [Manual And Automatic Control] With manual control and automatic control functions, it can control the automatic start and stop of the generator set through the remote start signal, which is suitable for stand alone automation.
2. [High Resolution LCD] Generator controller uses high resolution LCD to display the relevant parameters of the generator set, which can display multiple current fault states at the same time, and can effectively implement protection and shutdown when the generator set is not working properly.
3. [Parameter Adjustment] All parameters of the controller can be adjusted through the buttons on the controller panel or through the USB interface using a PC, which can be widely used in various types of generator automation systems.
4. [Customized Language Interface] The controller has a built in display interface such as simplified Chinese, English, etc. and the language interface can be customized according to your needs.
5. [Widely Application] The controller is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets.
Specification:

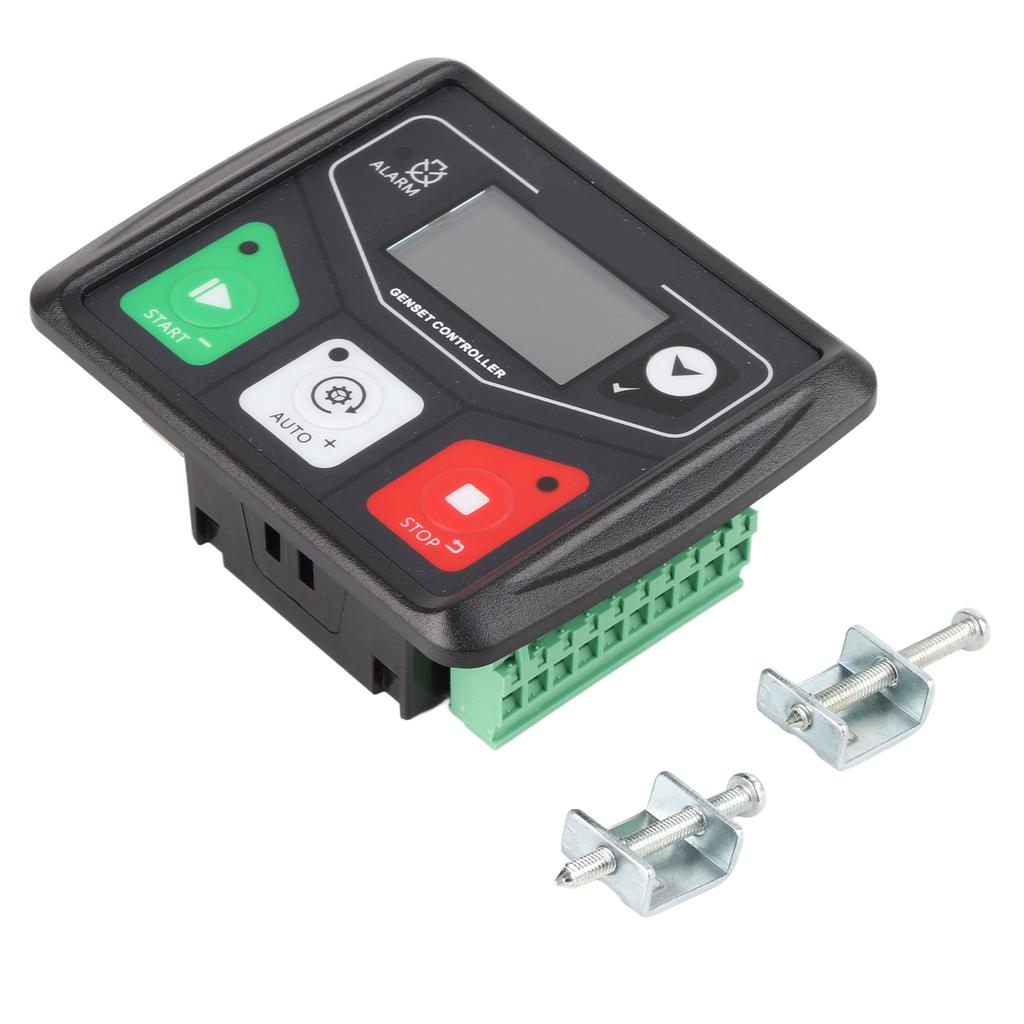

Item Type: Generator Control Module
Model: DC30D
Material: ABS
Application: Intelligent controller for generator set
Support Language: English
Motor And Phase Number (AC Line System): Disabled
1 phase 2 wire
2 phase 3 wire
3 phase 3 wire
3 phase 4 wire
1 phase3 phase
Current Transformer Ratio: 56000A5A (500A5A)
Rated Frequency: 40.080.0Hz (50.0Hz)
Rated Phase Voltage: 80600V (230V)
Rated Phase Current: 56000A (500A)
Rated Battery Voltage: 8.036.0V (12.0V)
Rated Speed: 5004500rpm (1500rpm).
Package List:
1 x Controller2 x Bracket1 x Manual
Note:
1. During the operation of the unit, it is strictly forbidden to disconnect the battery, otherwise the controller will be damaged2. The start and fuel output ports should be extended with large capacity relays3. When the sensor interface is configured as a switch input, floating means high level, and it is forbidden to connect to the positive electrode of the battery[Manual And Automatic Control] With manual control and automatic control functions, it can control the automatic start and stop of the generator set through the remote start signal, which is suitable for stand alone automation.
[High Resolution LCD] Generator controller uses high resolution LCD to display the relevant parameters of the generator set, which can display multiple current fault states at the same time, and can effectively implement protection and shutdown when the
[Parameter Adjustment] All parameters of the controller can be adjusted through the buttons on the controller panel or through the USB interface using a PC, which can be widely used in various types of generator automation systems.
[Customized Language Interface] The controller has a built in display interface such as simplified Chinese, English, etc. and the language interface can be customized according to your needs.
[Widely Application] The controller is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets.
