This multifunctional tool
Features the function of multimeter, temperature meter, electrical test pen and flashlight. With digital screen for easy reading and compact size for easy carry, it can be widely used in electrical testing, temperature measuring, automotive repairing and more household/ industrial electrical problems.
Features:
[Multifunction Multimeter] Digital multimeter, temperature meter and electrical test pen 3 in 1, can be widely used in electrical testing, temperature measuring, automotive repairing and more household/ industrial electrical problems.
[Auto/ Manual Ranging] High accuracy, wide range, True RMS, 6000 counts, auto recognition or manual selection. It can test AC/ DC voltage, AC/ DC current, resistance, capacitance, diode, frequency, continuity and temperature.
[Temperature Measurement] Comes with a thermocouple, this digital multimeter
Features -40~1000 celsius (-40~1832 Fahrenheit ) wide measuring range for industrial temperature measuring, which has quick response and brings accurate data.
[NCV Induction] Bring the NCV part close to the measured object, when a nearby AC voltage is detected, the red LED light will flash and the buzzer will sound quickly to indicate. Non-contact design makes it very safe and convenient.
[Digital Screen & Flashlight] LCD screen with backlight (HT126A) or VA color screen (HT126B) greatly enhances reading experience. Flashlight to illuminate the measured object without fear of dark environments.
[Battery Powered & Small Size] Powered by 4 AAA batteries (not included), auto shutdown after about 15min idle time to save power. Ergonomic design, compact size, comes with a storage bag for easy carry.
[Silicone Sheath Protection] Covered by silicone sheath, effectively preventing the multimeter from falling and scratches, better protecting the multimeter.
Note:
1. Please read the user manual carefully before use.
2. Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.
Specifications:
Model: HT126A/ HT126B (Optional)
Material: ABS
Screen: LCD Backlight Display (HT126A)/ VA Color Screen (HT126B)
True RMS: Yes
Counts: 6000
Max. Voltage: 600V DC or AC
Max. Current: 10A DC or AC
Max. Capacitance: 60mF
Max. Resistance: 60M Ohm
Max. Frequency: 10MHz
Temperature Measuring Range: -40~1000 celsius / -40~1832 Fahrenheit
Diode: Yes
Continuity: Yes
NCV Induction: Yes
Auto Shutdown: about 15min
Power Supply: 4 * 1.5V AAA Battery (NOT included)
Operating Environment: Temperature 0~40 celsius , Humidity less than 80% RH
Storage Environment: Temperature -10~60 celsius , Humidity less than 70% RH, Remove the Batteries
Altitude: less than 2000m
Item Size: 145 * 70 * 25mm / 5.71 * 2.76 * 0.98in
Item Weight (without batteries): 184g / 6.48oz
Package Size: 17.5 * 10 * 5.5cm / 6.89 * 3.94 * 2.17in
Package Weight: 367g / 12.94oz

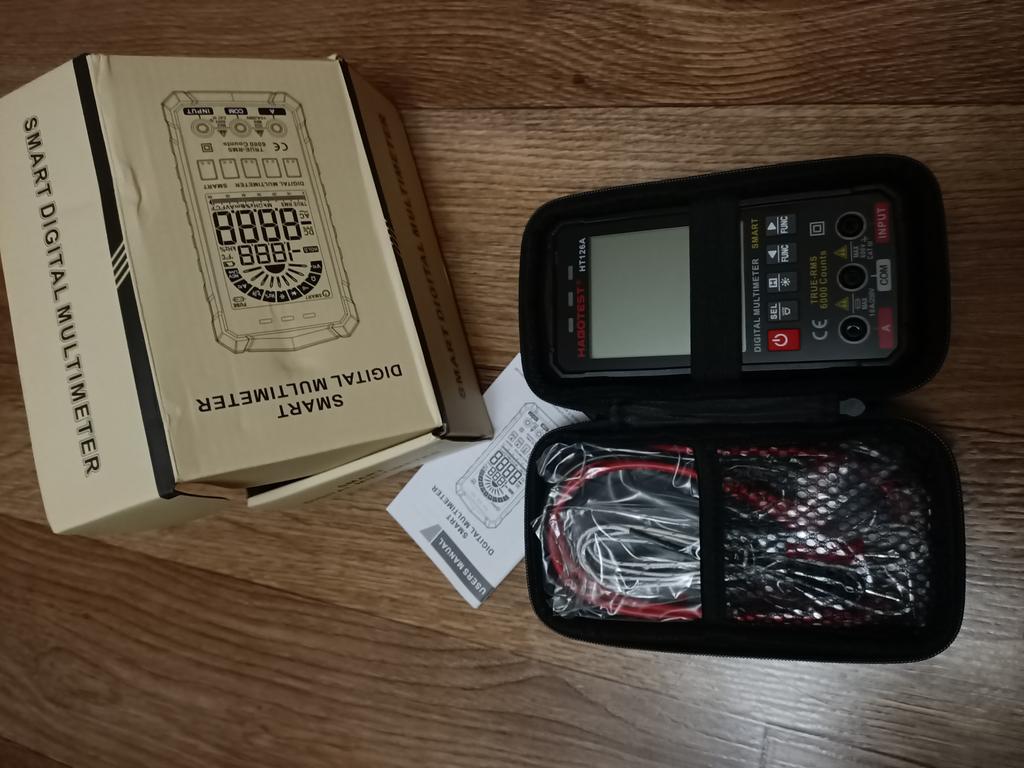

Package List:
1 * Smart Digital Multimeter
1 * Thermocouple
2 * Measuring Pen
1 * User Manual (English)

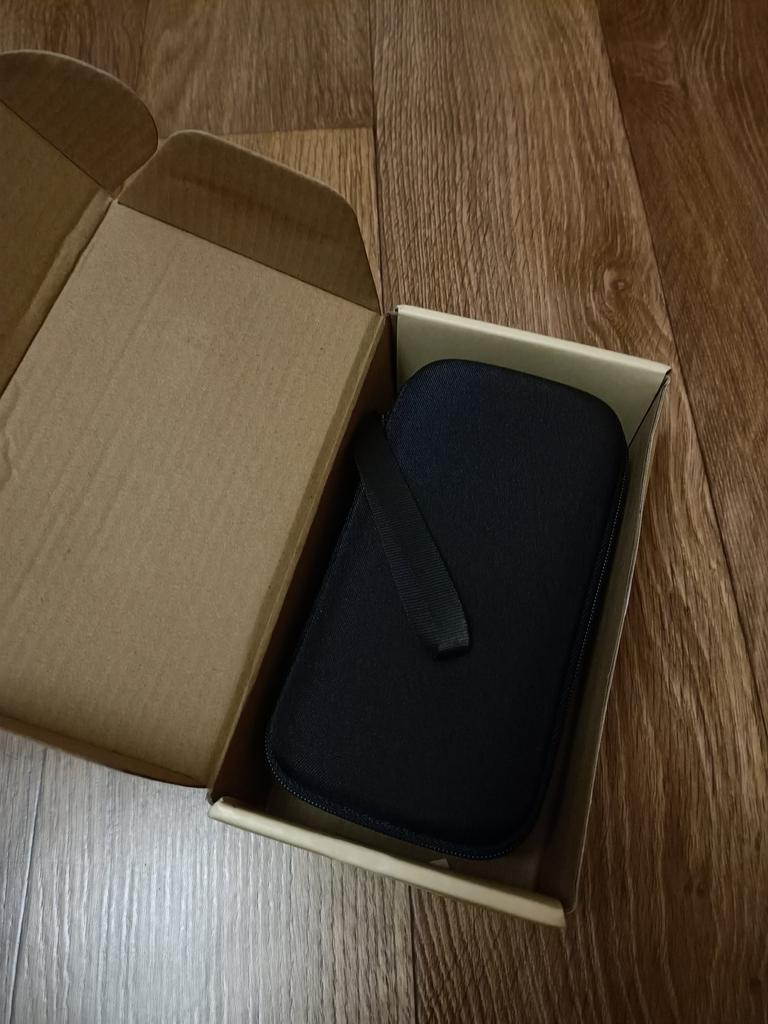

1 * Storage Bag
