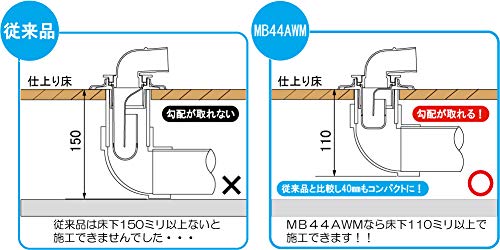

Installation is 40mm more compact than previous models!
Compact Design.

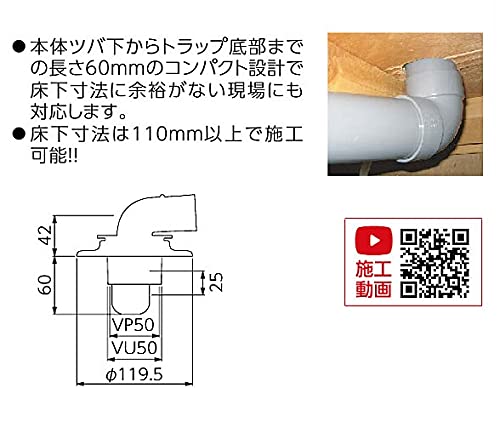

The compact design, measuring 60mm from the bottom of the trap to the base of the main unit, allows for installation in locations with limited floor space. Installation is possible for floor spaces of 110mm or more.

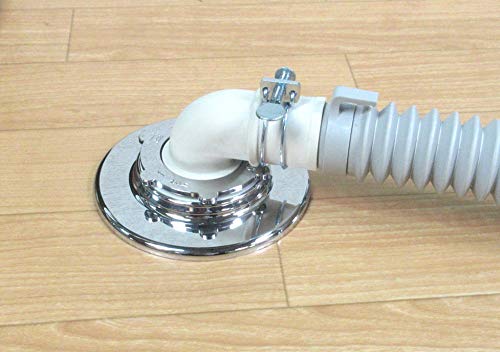

The included cover hides the screws for a clean design.
Simply insert and glue the main unit into the drain pipe, eliminating the need for tedious underfloor work.
The included hose liner prevents deformation of the drain hose.
The trap section is a bulkhead trap and is a clean type. Even with a VP pipe, it will fully satisfy the washing machine's drainage volume. Simply replace the cover, rubber elbow, and lock nut to return it to like-new condition, making it ideal for apartment buildings with high turnover.
Caution:
Please read the installation instructions carefully before installation.
The water seal is 25.
If the washing machine will not be used for an extended period of time, please take care to prevent water seal failure. Install the piping to avoid double traps.
Install without a reverse slope.
Compatible with both VP and VU50.
Heat-resistant up to 60°C, continuous use up to 40°C.

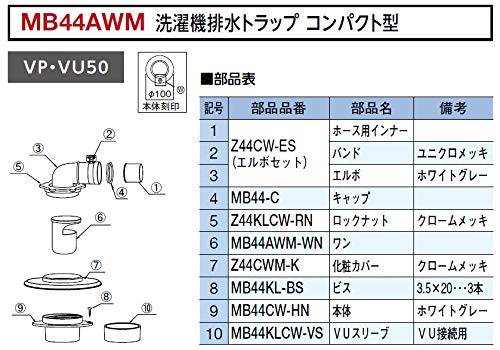

●Material: Body: ABS, Elbow: TPO
Washing machine drain with trap
Compact design with underfloor clearance of 60 mm
Clean design with cover

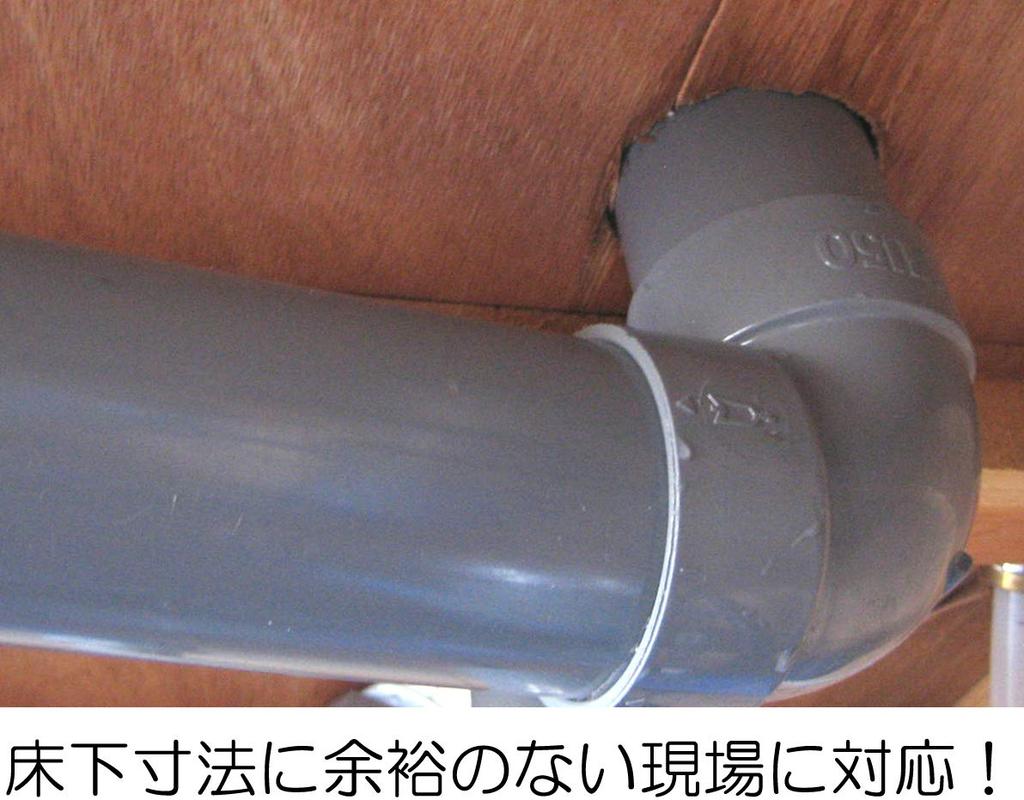

Can be installed in underfloor clearances of 110 mm or more.
