[Product Name]
Tamiya GR Supra Red TT-02 Chassis
[Brand Introduction]
Tamiya is a renowned Japanese manufacturer of radio control models, known for its superior quality and precision, loved by RC enthusiasts worldwide.
[Detailed Description]

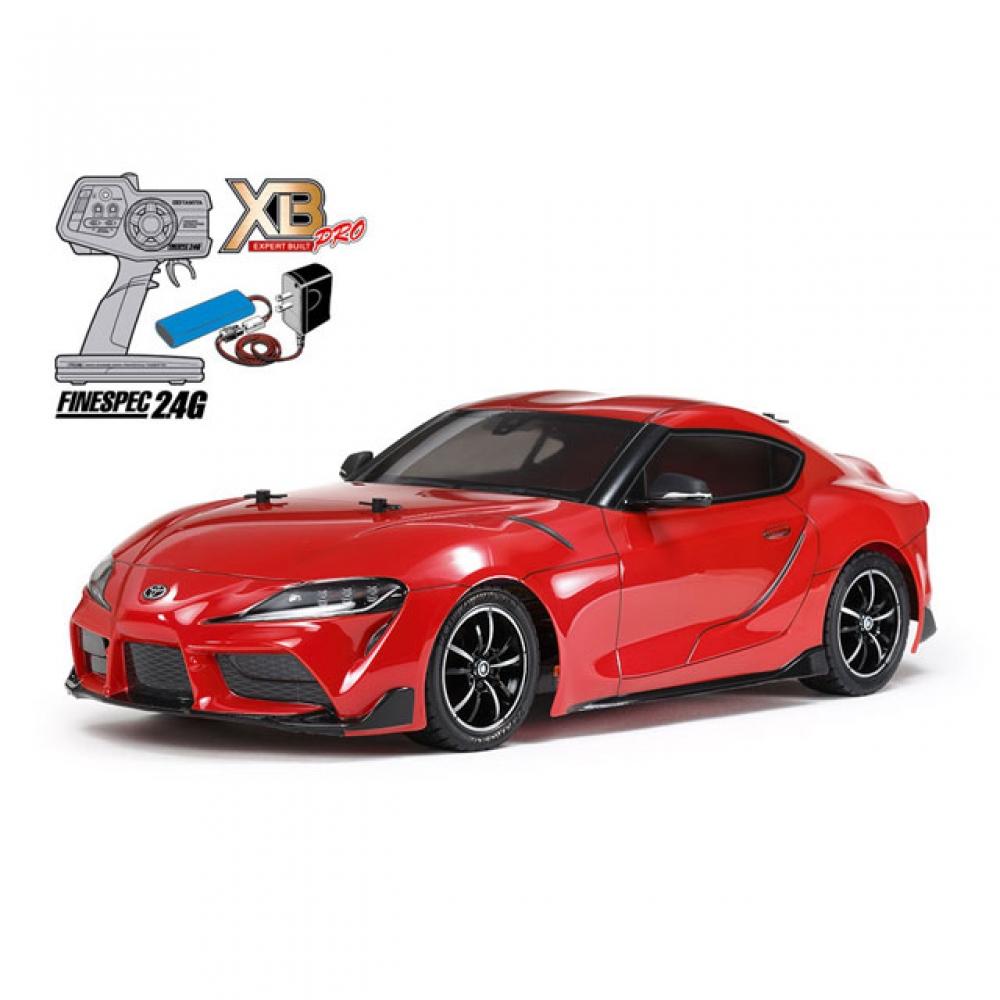

【 Drive the exciting 2-seater sports car in RC! 】 The GR Supra, a 2-seater sports car from Toyota that debuted globally in January 2019, is represented as a complete electric radio-controlled car. The distinctive body shape features a double bubble roof, prominent front and rear fenders, and a ducktail at the rear gate, constructed from lightweight and shock-resistant polycarbonate. Finished in a vibrant bright mica red with smoke windows and a black rear diffuser for detail. Additionally, the front and rear light cases are composed of polycarbonate parts to enhance three-dimensionality, creating a striking exterior. The door mirrors replicate the small three protrusions on the side, enhancing the scale appearance.
【 TT-02 shaft 4WD for easy control and fun settings 】 The pre-assembled chassis features a well-balanced design: the driving battery is placed on the left, and the motor on the right in a vertical layout for superb driving stability with shaft-driven four-wheel drive TT-02. The suspension is a four-wheel double wishbone design. Both the front and rear sealed gearboxes incorporate smooth differential plastic four-pinion gears. The wheel hub is designed to look like brake discs with a front bumper support inspired by racing karts, adding playful elements to the model. Furthermore, by rearranging parts, you can select from two different wheelbases, ride heights, and treads, as well as choose from 10 different gear ratios with the motor mount. The black 10-spoke wheels are finished with silver stickers on the rim and spokes to closely resemble real 19-inch wheels. The tires are fitted with sculpted racing radial tread patterns. An ESC (Electronic Speed Controller) allows for smooth speed control in both forward and reverse. The ESC is equipped with the TBLE-04S sensor model that supports brushless motors above 15.5T.
【 Using a 2.4G Propo for easy play with multiple units 】 The completed chassis comes with a wheel trigger-type transmitter, a 7.2V battery for running, and a charger. The RC mechanism utilizes a 2.4GHz propo set that does not require crystal exchange or band adjustments, making it easy to enjoy multiple units. The 2.4GHz frequency used also for computer WiFi pairs the transmitter and receiver (vehicle) one-on-one to eliminate the worry of frequency interference, and even better, they are pre-paired so no setup effort is required. The transmitter features a grip cover and trigger cover that can be adjusted upon removal, making it easy to use even for those with smaller hands.
[Basic Specs]
● Overall length: 457mm, overall width: 188mm, overall height: 133mm
● Wheelbase: 257mm
● Tire width/diameter: both front and rear 26/66mm
● Frame: bathtub type
● Drive system: vertical motor layout / shaft drive 4WD
● Differential gear: both front and rear plastic 4-bevel type
● Steering: 3-piece tie rod style
● Suspension: 4-wheel double wishbone
● Dampers: both front and rear friction type
● Gear ratio: kit standard 8.27:1 (can choose from 10 types of gear ratios between 11.38:1 to 7.28:1 with optional pinions)
● Motor: 540 type
● Speed Controller: equipped with ESC (Electronic Speed Controller)
[Items Sold Separately]
● 4 AAA batteries for the transmitter
[Assembly Instructions]
● 1/10 RC Toyota GR Supra (TT-02 Chassis)
[Spare Body Instructions]
● 1/10 RC Toyota GR Supra
