Specifications
Color: White
Interface: RJ-45 Connector
Environmental Considerations: EU RoHS Compliant (10 Substances)
Standard: Cat5e Compliant (Compatible with 10BASE-T/100BASE-TX/1000BASE-T)
Transmission Speed: 1Gbps
Bandwidth: 100MHz
Cable Length: Approx. 30m (excluding connectors)
Cable Diameter: Approx. 5.2mm
Number of Cores: 8
Wiring Method: Straight
Twisted Pair Cable: Yes
Shielding: None (UTP)
Cross-Pile Material: No
Outer Sheath Material: PVC
Length Mark: No
Conductor Configuration: Solid (24AWG)
Connectors: Connectors on Both Ends
Molded Connector: Yes
Slim Connector: Yes
Connector with Anti-Snake Cover: Yes
Cable Winding Function: No
Packaging: Poly Bag (Eco-Friendly)
Anti-Snake Connector: Yes
PoE: No

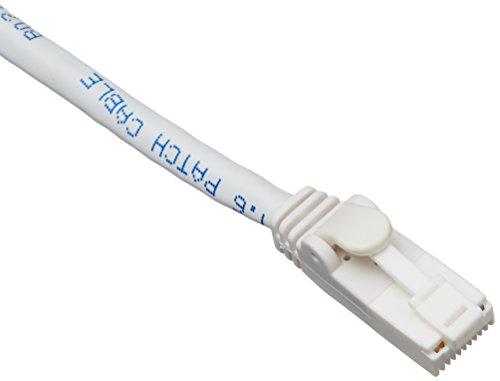

Description This is a standard Cat5e-compliant LAN cable.
This cable features a double-layered design with anti-snap protectors and connectors made of highly durable materials for long-term durability. *Passed a 1,000-bend test (verified by our company).
This cable prevents cable disconnection due to snapped tabs and ensures a secure connection to the LAN port for extended periods.
Enables stable data transfer in 100BASE-TX and 1000BASE-T environments.
The twisted-strand design eliminates cross-interposition, making it flexible and easy to handle, even in tight spaces.
The slim connector ensures smooth connection without interfering with adjacent ports.
It is flame-retardant, passing the 60-degree tilt test (JIS C 3005).
This environmentally friendly product complies with the EU's RoHS Directive (Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) (10 substances).
This product meets one or more of our company's environmental certification standards and bears the "THINK ECOLOGY" mark.
In an effort to protect the environment, this product's packaging is made entirely of paper, cardboard, and plastic bags.
Product Inquiries
ELECOM General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Hours: 10:00 AM - 7:00 PM, Open 365 Days a Year
This is a standard Cat5e-compliant LAN cable.
This LAN cable features a double structure with anti-snap protectors and connectors made of highly durable materials, making the cable less susceptible to breakage. *Passed a 1,000-bend test (verified by our company).
This prevents the cable from falling out due to broken pins, ensuring a secure connection to the LAN port for long periods of time.
Ensures stable data transfer in 100BASE-TX and 1000BASE-T environments.
The twisted cable design eliminates cross-insertion, making it flexible and easy to handle, even in tight spaces.
